Ruijie RG-RAP62-Wall Wi-Fi 6 AX3000 Dual-Band Wall-Plate AP, 4 x 1GE LAN Ports, PoE Out
About this product
The Ruijie RG-RAP62-Wall is a Wi-Fi 6 AX3000 dual-band multi-port wall-plate access point, suitable for five-star hotels, offices, and other similar scenarios. It fits 86-mm, EU, and US standard junction boxes, adds 4 x 1GE LAN ports with LAN4 supporting PoE Out, and offers centralised management on Ruijie Cloud.
Key features
- Wi-Fi 6 AX3000: maximum 2401 Mbps in 5 GHz + maximum 573 Mbps in 2.4 GHz
- Dual-radio, 4 spatial streams, 2 x 2 MU-MIMO on 2.4 GHz and 5 GHz

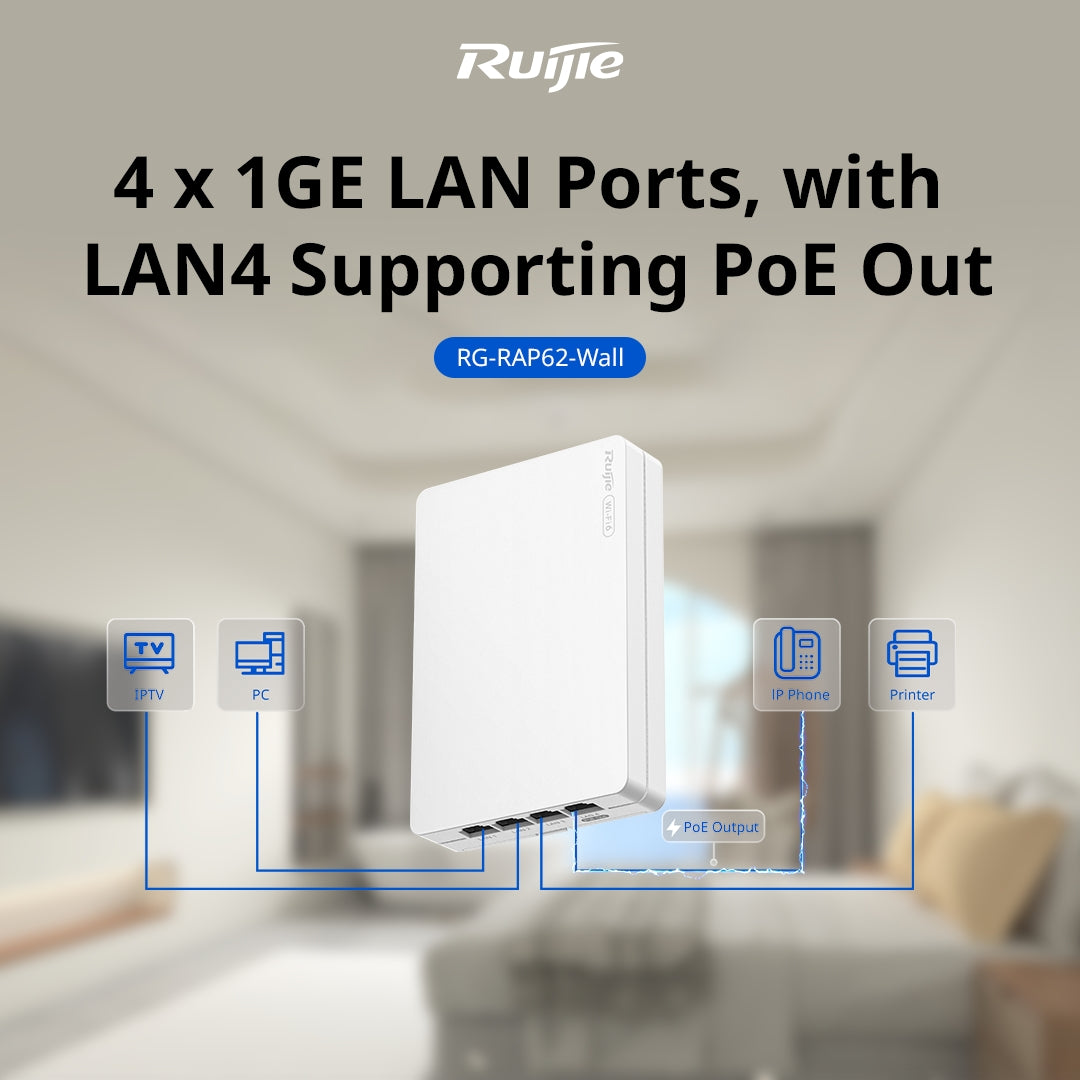

- 4 x 1GE LAN ports, with LAN4 supporting PoE Out
- PoE budget 10 W (when power source is IEEE 802.3at-compliant)
- Ultra-thin design with a thickness of 23.5 mm
- Compatible with 86-mm, EU, and US standard junction boxes
- Up to 256 associated wireless clients with 2.4 GHz and 5 GHz enabled
- Centralised management on Ruijie Cloud
Frequently asked questions
How is the RG-RAP62-Wall powered?
It is powered by PoE/PoE+. It has no local power supply.
Can it power another device?
Yes. LAN4 supports PoE Out, with a PoE budget of 10 W when the power source is IEEE 802.3at-compliant.
Which junction boxes does it fit?
It is compatible with 86-mm, EU, and US standard junction boxes.
How fast is the Wi-Fi?
Wi-Fi 6 AX3000 gives a maximum of 2401 Mbps in 5 GHz plus a maximum of 573 Mbps in 2.4 GHz, with a maximum wireless data rate of 2974 Mbps.
How many wireless clients can connect?
The maximum number of associated wireless clients is 64 on 2.4 GHz, 256 on 5 GHz, and 256 with 2.4 GHz and 5 GHz enabled.
How is it managed?
It supports centralised management on Ruijie Cloud.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-RAP62-Wall |
| Manufacturer Part Number (MPN) | RG-RAP62-Wall |
| Product Type | Wall AP |
| Radio design | Dual-radio, 4 spatial streams; 2.4 GHz: 2 x 2, MU-MIMO; 5 GHz: 2 x 2, MU-MIMO |
| Maximum wireless data rate | 2974 Mbps |
| 5 GHz wireless data rate | 2401 Mbps |
| 2.4 GHz wireless data rate | 573 Mbps |
| Antenna | 5 GHz: 1 built-in omnidirectional antenna; integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas |
| Number of 10/100/1000BASE-T ports | 5 |
| LAN ports | 4 x 1GE LAN ports, with LAN4 supporting PoE Out |
| Power supply | PoE/PoE+ |
| Local power supply | No |
| PoE budget | 10 W (when power source is IEEE 802.3at-compliant) |
| Maximum power consumption | 12 W (excluding PoE output) |
| Product dimensions (W x D x H) | 86 mm x 23.5 mm x 125 mm (excluding the mounting bracket) |
| Weight | ≤ 0.33 kg (without packaging materials) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Mounting options | Junction box |
| Maximum number of associated wireless clients | 64 (2.4 GHz); 256 (5 GHz); 256 (2.4 GHz and 5 GHz enabled) |
| Maximum number of devices that can be managed | 300 |
| IPv6 | Yes |
| Colour | White |
