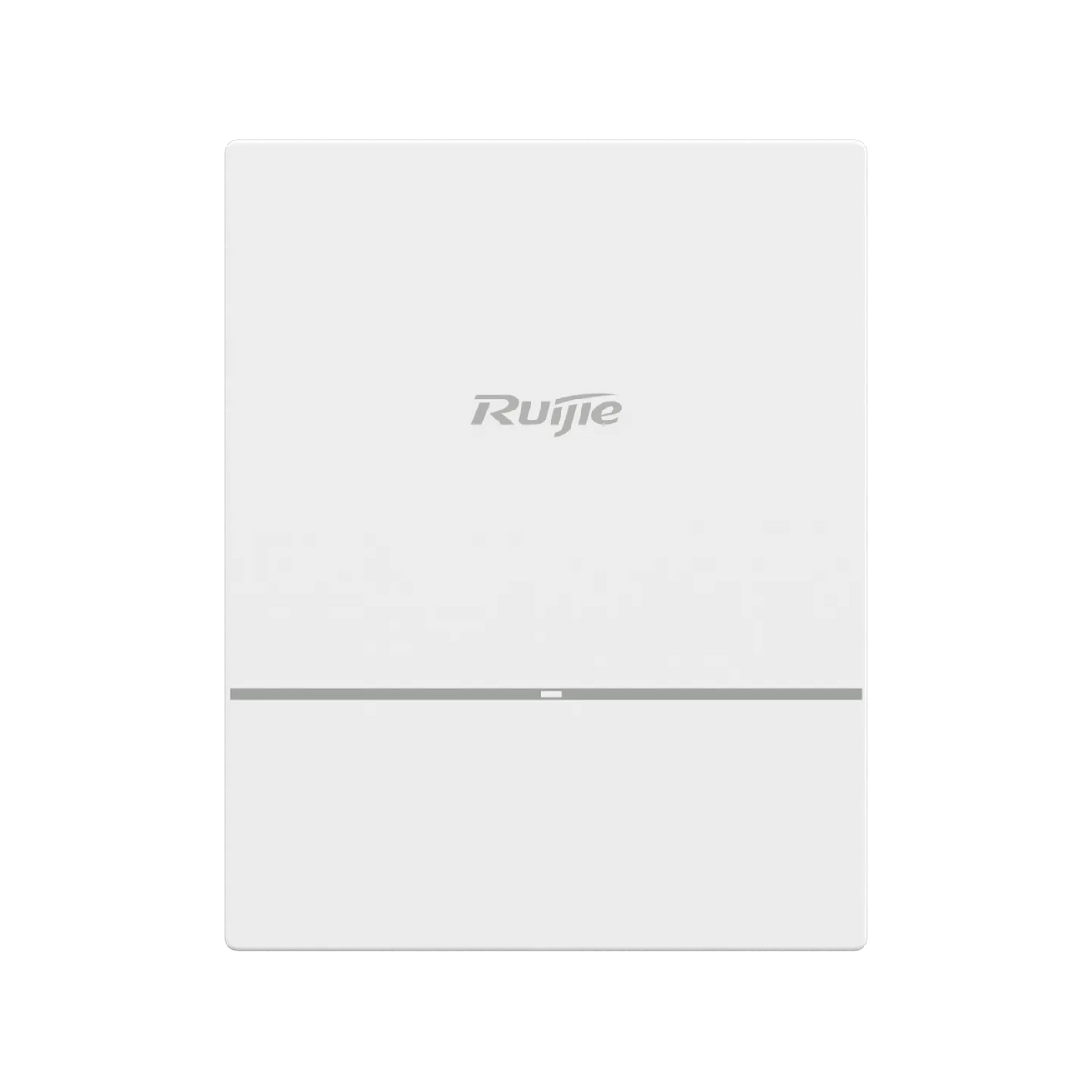

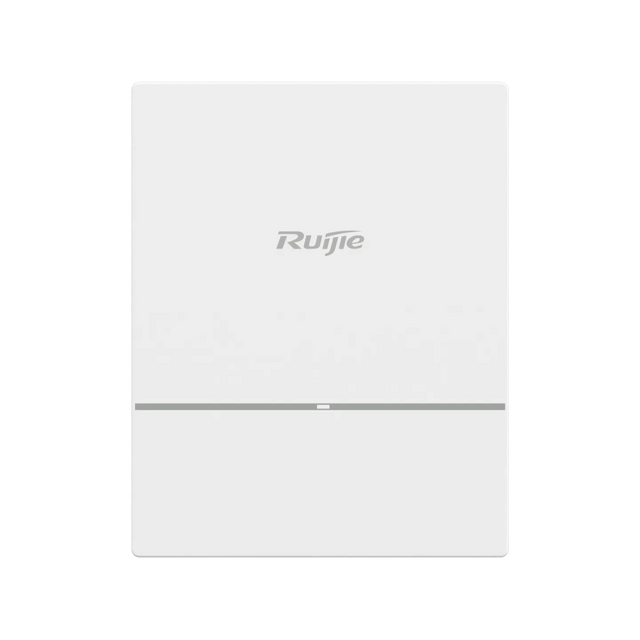

Ruijie RG-AP820-L(V2) Wi-Fi 6 Dual-Radio Indoor Access Point, 2.402 Gbps, PoE (802.3af)
About this product
The Ruijie RG-AP820-L(V2) is a Wi-Fi 6 dual-radio indoor wireless access point with a data rate of up to 2.402 Gbps, for indoor scenarios including hotels, offices, retail stores and schools. It runs from PoE (802.3af) or a 48 V DC/0.3 A power supply and mounts on a wall or ceiling.
Key features
- Wi-Fi 6 with 802.11a/b/g/n/ac/ax wireless protocols
- Dual-radio design with four spatial streams, 2x2 MU-MIMO on each radio
- Combined peak data rate of 2.402 Gbps (5 GHz + 5 GHz) or 1.775 Gbps (2.4 GHz + 5 GHz)
- 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af standard (PoE)
- Built-in omnidirectional antennas, 5 dBi gain on 2.4 GHz and 5 GHz
- Bluetooth 5.0 radio
- Flexible Fit/Fat/Cloud mode switchover
- Max. power consumption of 12.95 W
Frequently asked questions
How is the Ruijie RG-AP820-L(V2) powered?
By PoE (802.3af) through its 10/100/1000BASE-T port, or by a 48 V DC/0.3 A power supply. If both DC power and PoE are connected, DC power is preferred. Max. power consumption is 12.95 W.
Does the RG-AP820-L(V2) support Mesh?
No. The RG-AP820-L(V2) does not support Mesh.
How many devices can connect to it?
The recommended maximum number of active devices per AP is 120, and the maximum number of associated clients is 1,024. The number of associated clients depends on the environment.
Can it switch between Fat, Fit and Cloud modes?
Yes. In fit mode it can be switched to fat mode through the AC; in fat mode it can be switched to fit mode through the local console port or Telnet. In Cloud mode it is managed through Ruijie Cloud.
Can it be mounted on a ceiling?
Yes. It is a wall/ceiling-mount access point, and a mounting bracket comes with the main unit.
Does it have Bluetooth?
Yes, it has a Bluetooth 5.0 radio.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-AP820-L(V2) |
| Manufacturer Part Number (MPN) | RG-AP820-L(V2) |
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
| Radio design | Dual-radio design and four spatial streams; Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2x2, MU-MIMO; Radio 2: 5 GHz, two spatial streams, 2x2, MU-MIMO |
| Data Rate | Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps; 5 GHz + 5 GHz, 2.402 Gbps |
| Antenna type | Built-in omnidirectional antennas; 2 x 2.4 GHz antennas (Radio 1); 4 x 5 GHz antennas (Radio 1 & Radio 2) |
| Antenna gain | 2.4 GHz: 5 dBi; 5 GHz: 5 dBi |
| Maximum transmit power | 2.4 GHz radio: 20 dBm (17 dBm per chain); 5 GHz radio: 20 dBm (17 dBm per chain) |
| Bluetooth | Bluetooth 5.0 |
| Fixed service port | 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af standard (PoE) |
| PoE-PD | 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) |
| Fixed management port | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED |
| Input Power Supply | 48 V DC/0.3 A power supply; PoE (802.3af) |
| Max. Power Consumption | 12.95 W |
| Idle mode | < 8 W |
| Recommended maximum number of active devices per AP | 120 |
| Maximum number of associated clients | 1,024 |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| Network management platform | Ruijie Cloud; Web-based management (Eweb) |
| Unit dimensions (W x D x H) | 153 mm x 193 mm x 26 mm (6.02 in. x 7.60 in. x 1.02 in.) |
| Unit weight | Main unit: 0.42 kg (0.93 lbs); Mounting bracket: 0.07 kg (0.15 lbs) |
| Mounting | Wall/Ceiling-mount |
| Lock option | Securing latch and Kensington lock |
| Color | White |
| Operating temperature | –10°C to +50°C (14°F to 122°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| Colour | White |
