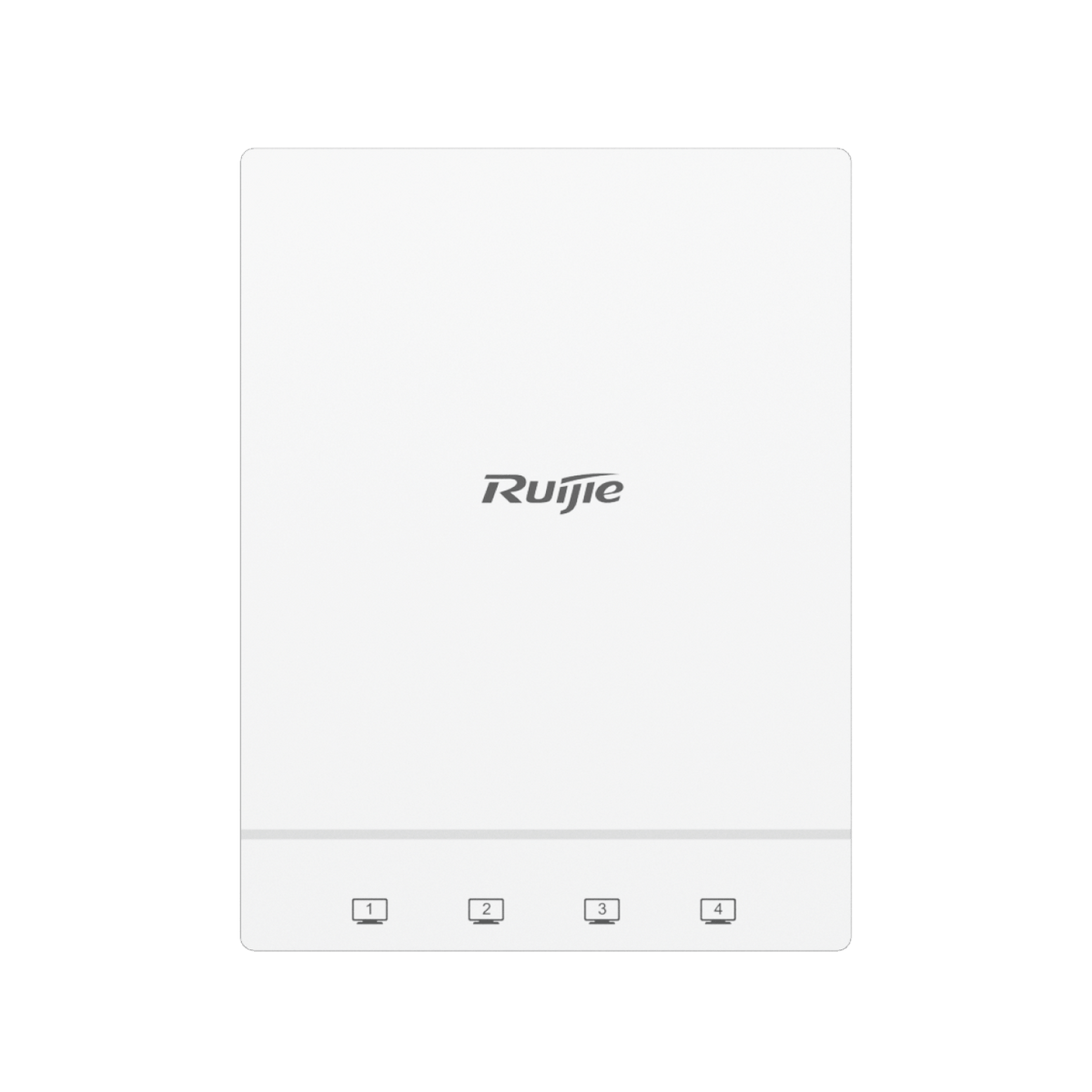

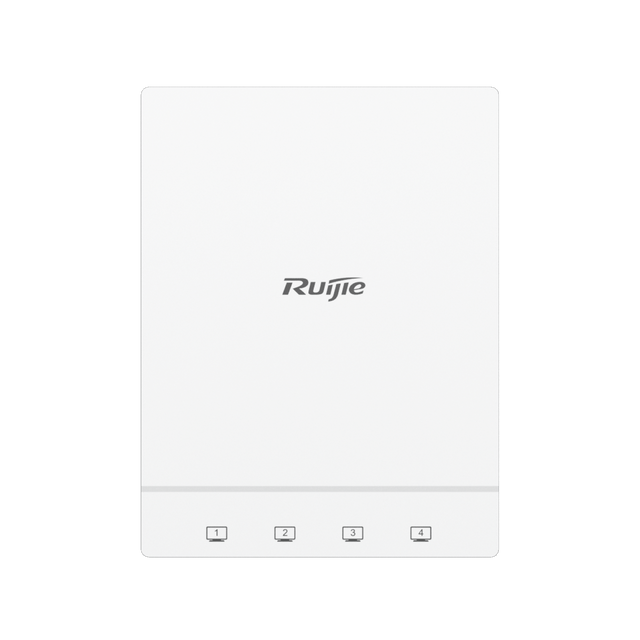

Ruijie RG-AP180 Wi-Fi 6 Indoor Wall Plate Access Point, 1.775 Gbps, Dual-Radio
About this product
The Ruijie RG-AP180 is a Wi-Fi 6 (802.11ax) dual-radio wall plate wireless access point with a combined peak data rate of 1.775 Gbps. Ruijie recommends it for indoor scenarios such as dormitories, offices, hotels, stores and classrooms.
Key features
- Dual-radio design with up to four spatial streams: 2.4 GHz and 5 GHz, each 2x2 MU-MIMO
- Combined peak data rate of 1.775 Gbps (Radio 1: 2.4 GHz, 574 Mbps; Radio 2: 5 GHz, 1.201 Gbps)
- Uplink: 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af/802.3at (PoE/PoE+)
- Downlink: 4 x 10/100/1000BASE-T ports
- Built-in intelligent antennas: two 2.4 GHz antennas and two 5 GHz antennas
- Wall-mount or junction box-mount (86 mm/European-standard junction box)
- Bluetooth 5.0 radio
- Fat/Fit/Cloud mode switchover, with Ruijie Cloud or web-based management (Eweb)
Frequently asked questions
How is the RG-AP180 powered?
By PoE on the PoE-in port from a PSE that complies with IEEE 802.3af, or by 12 V DC/1 A through the DC connector. When powered by 802.3at (PoE+), the AP operates with optimal performance.
Does the RG-AP180 come with a power adapter or PSE?
No. A PSE needs to be purchased separately, and a 12 V/1 A power adapter needs to be purchased separately.
What junction box does the RG-AP180 fit?
It mounts in an 86 mm/European-standard junction box or on the wall. For an American-standard junction box, an RG-AP180-MNT mounting bracket is purchased separately.
How many wired ports does the RG-AP180 have?
One 10/100/1000BASE-T uplink port (IEEE 802.3af/802.3at, PoE/PoE+) and four 10/100/1000BASE-T downlink ports, plus a Micro USB console port under the decorative cover.
How many clients can connect to the RG-AP180?
Up to 256 associated clients, with a recommended maximum of 120 active devices per AP. The number of associated clients varies with the environment.
How is the RG-AP180 managed?
It supports Fat/Fit/Cloud mode switchover and can be managed through Ruijie Cloud or web-based management (Eweb).
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-AP180 |
| Manufacturer Part Number (MPN) | RG-AP180 |
| Radio design | Dual-radio and up to four spatial streams; Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO; Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
| Combined peak data rate | 1.775 Gbps |
| Radio 1 data rate | 2.4 GHz, 574 Mbps |
| Radio 2 data rate | 5 GHz, 1.201 Gbps |
| Standards | IEEE 802.11a/b/g/n/ac and 802.11ax |
| Antenna type | Built-in intelligent antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
| Antenna gain | 2.4 GHz: 2.5 dBi; 5 GHz: 5.5 dBi |
| Maximum transmit power | 2.4 GHz radio: 20 dBm (17 dBm per chain); 5 GHz radio: 20 dBm (17 dBm per chain); limited by local regulatory requirements |
| Uplink port | 1 x 10/100/1000BASE-T port, IEEE 802.3af/802.3at (PoE/PoE+) |
| Downlink ports | 4 x 10/100/1000BASE-T ports |
| Fixed management port | 1 x Micro USB console port (under the decorative cover) |
| Bluetooth | Bluetooth 5.0 |
| Input power supply | 12 V DC/1 A over DC connector (2.1 mm/5.5 mm center-positive circular plug); PoE input over the PoE-in port (IEEE 802.3af PSE) |
| Maximum power consumption | 10 W |
| Operating temperature | –10°C to +50°C (14°F to 122°F); maximum temperature decreases by 1°C (1.8°F) per 220 m altitude increase at 3,000–5,000 m |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Maximum number of associated clients | 256 (varies with the environment) |
| Recommended maximum number of active devices per AP | 120 |
| Maximum number of BSSIDs | 16 (up to 8 BSSIDs per radio) |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Authentication | PSK, PPSK, web, 802.1X, WPA, WPA2, and WPA3 authentication |
| VPN | PPPoE client; IPsec VPN, up to four IPsec tunnels |
| Network management platform | Ruijie Cloud; Web-based management (Eweb) |
| Applicable software version | RGOS11.9(6)W1B9 or later |
| Mounting | Wall-mount; Junction box-mount (86 mm/European-standard junction box) |
| Unit dimensions (W x H x D) | In-wall: 86 mm x 116 mm x 19 mm |
| Unit weight | 0.19 kg (0.42 lbs) |
| Colour | White |
