Ruijie RG-RAP62-Wall-Lite Wi-Fi 6 Wall-Plate Access Point, AX3000 Dual-Band, 2974 Mbps
About this product

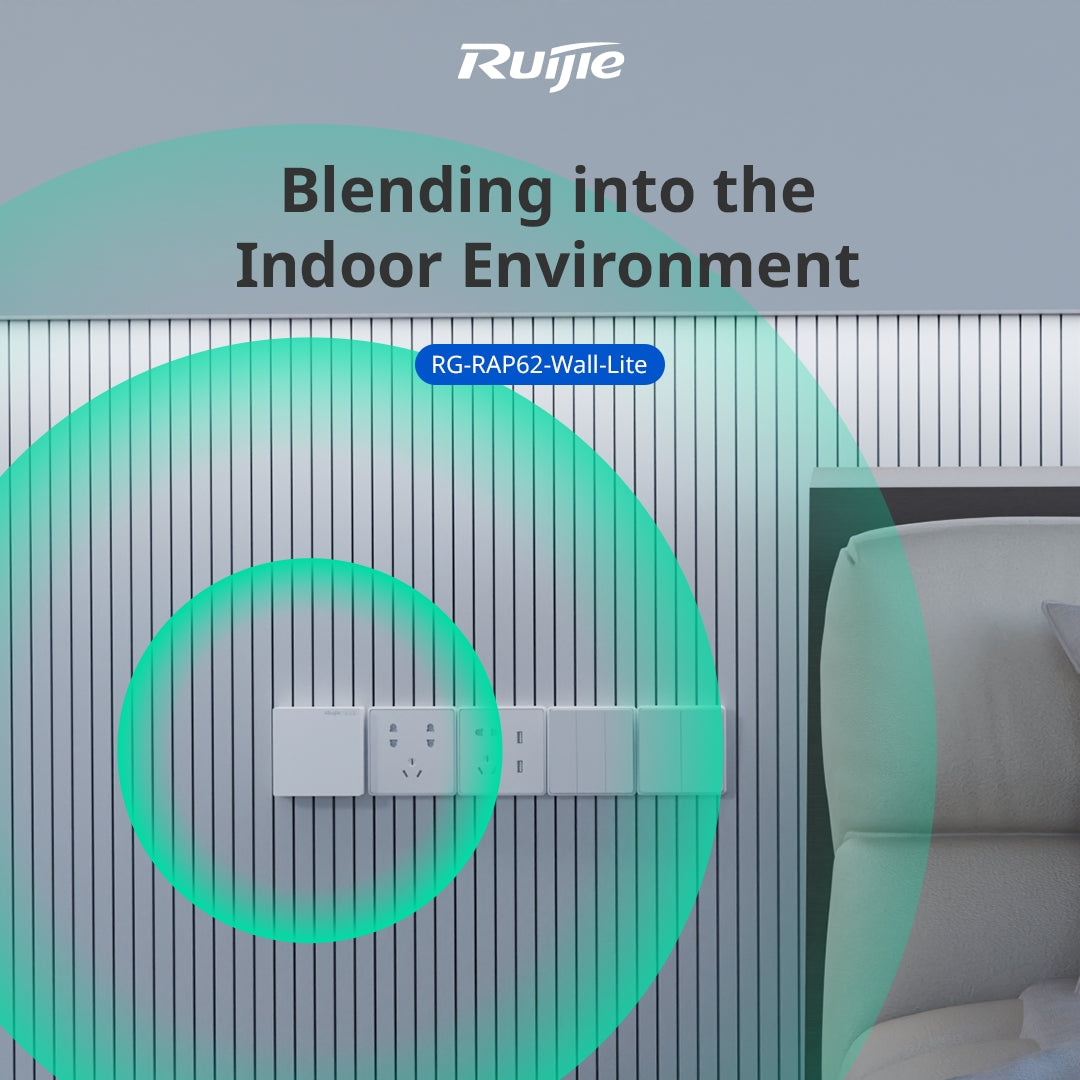

The Ruijie RG-RAP62-Wall-Lite is a Wi-Fi 6 AX3000 dual-band wall-plate access point that fits 86-mm and EU standard junction boxes, with only 24.8 mm (0.98 in.) exposed on the wall. It is suitable for five-star hotels, offices, and other similar scenarios, is powered by PoE/PoE+, and supports centralized management on Ruijie Cloud.
Key features
- Wi-Fi 6 AX3000: maximum 2401 Mbps in 5 GHz + maximum 573 Mbps in 2.4 GHz
- Maximum wireless data rate of 2974 Mbps
- Dual-radio, 4 spatial streams, 2 x 2 MU-MIMO on both 2.4 GHz and 5 GHz
- Compatible with 86-mm and EU standard junction boxes
- Thickness-segmented design, with only 24.8 mm (0.98 in.) exposed on the wall
- 2 × 10/100/1000BASE-T ports
- Powered by PoE/PoE+ (no local power supply)
- Centralized management on Ruijie Cloud
Frequently asked questions
How is the RG-RAP62-Wall-Lite powered?
By PoE/PoE+. It has no local power supply, and maximum power consumption is 11.2 W.
What size of back box does it fit?
It mounts on a junction box and is compatible with 86-mm and EU standard junction boxes.
How fast is the Wi-Fi?
It is a Wi-Fi 6 AX3000 access point with maximum 2401 Mbps in 5 GHz + maximum 573 Mbps in 2.4 GHz. Its maximum wireless data rate is 2974 Mbps.
How many wireless clients can connect?
Up to 64 on 2.4 GHz and 256 on 5 GHz, or 256 with 2.4 GHz and 5 GHz enabled.
Can it be installed outdoors?
It has no IP rating, is designed for blending into the indoor environment, and its operating temperature is 0°C to 40°C (32°F to 104°F).
How is it managed?
It supports centralized management on Ruijie Cloud.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-RAP62-Wall-Lite |
| Manufacturer Part Number (MPN) | RG-RAP62-Wall-Lite |
| Product Type | Wall AP |
| Radio design | Dual-radio, 4 spatial streams; 2.4 GHz: 2 x 2, MU-MIMO; 5 GHz: 2 x 2, MU-MIMO |
| Maximum wireless data rate | 2974 Mbps |
| 5 GHz wireless data rate | 2401 Mbps |
| 2.4 GHz wireless data rate | 573 Mbps |
| 6 GHz wireless data rate | No |
| Antenna | 5 GHz: 1 built-in omnidirectional antenna; Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas |
| Product dimensions (W x D x H) | 86mm x 38mm x 86mm (3.39 in. x 1.50 in. x 3.39 in.) |
| Weight | ≤ 0.25 kg (0.55 lbs.) (without packaging materials) |
| Number of 10/100/1000BASE-T ports | 2 |
| Power supply | PoE/PoE+ |
| Local power supply | No |
| PoE budget | No |
| Maximum power consumption | 11.2 W |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Mounting options | Junction box |
| IP rating | No |
| Maximum number of associated wireless clients | 64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz enabled) |
| Maximum number of devices that can be managed | 300 |
| IPv6 | Yes |
| Colour | White |
