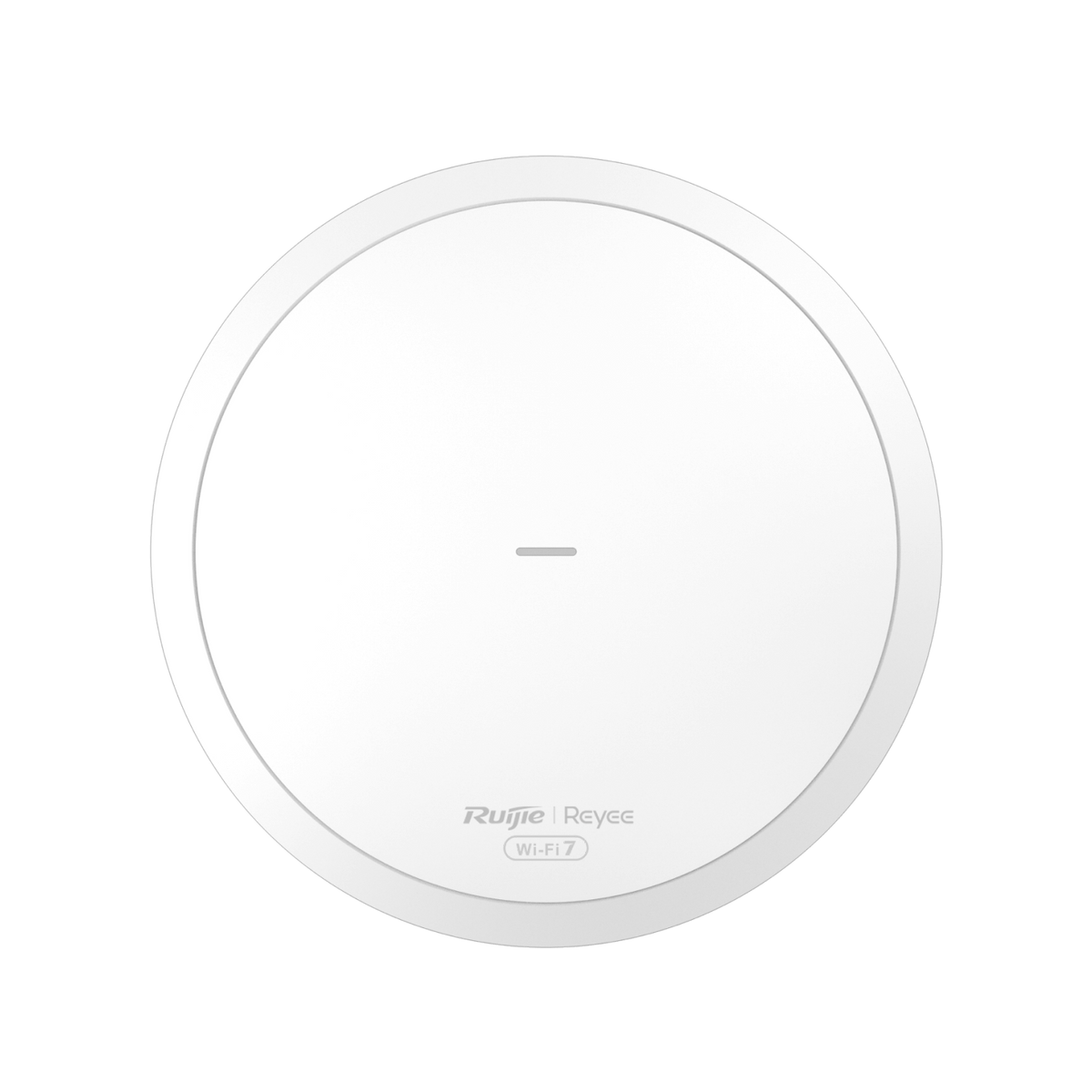

Ruijie RG-RAP72 Wi-Fi 7 Ceiling-Mount Access Point, BE3600, 2.5GE Port
£
93
27
(Incl. VAT)
RRP: £111.92
About this product
The Ruijie RG-RAP72 is a Wi-Fi 7 BE3600 ceiling-mount access point with dual-radio 2.4 GHz and 5 GHz performance and a 2.5GE port. It is designed for smart home, hotel and office settings, and is tailored for business needs with Reyee Mesh, standalone portal and AI roaming features.
Key features
- Wi-Fi 7 dual-radio design with 4 spatial streams (2 x 2 MU-MIMO on 2.4 GHz and 5 GHz)
- Maximum wireless data rate of 3570 Mbps (5 GHz: 2882 Mbps; 2.4 GHz: 688 Mbps)
- One 10/100/1000/2500BASE-T port
- Powered by PoE/PoE+ or a DC power adapter (12 V, 1.5 A)
- Up to 511 associated wireless clients with 2.4 GHz and 5 GHz enabled
- AI Optimization (WIO 3.0), Reyee Mesh and AI roaming
- Ceiling or wall mounting, IP41 rated
- Compact circular design measuring Ø195 mm x 41 mm (excluding the mounting bracket)
Frequently asked questions
Does the RG-RAP72 use the 6 GHz band?
No. It is a dual-radio access point working on 2.4 GHz and 5 GHz; 6 GHz is not supported.
How many wireless clients can connect to the RG-RAP72?
Up to 511 associated wireless clients with 2.4 GHz and 5 GHz enabled, or up to 64 on 2.4 GHz.
What network port does the RG-RAP72 have?
One 10/100/1000/2500BASE-T port.
Can the RG-RAP72 be wall mounted?
Yes. Its mounting options are ceiling or wall.
What area does one RG-RAP72 cover?
Ruijie gives a coverage range of 140 ㎡, measured in an environment without obstruction; the signal coverage radius depends on client performance and environmental interference.
£
93
27
RRP: £111.92
Save £18.65
Price
Technical Details
Specifications
Brand
Ruijie
Model
RG-RAP72
Manufacturer Part Number (MPN)
RG-RAP72
Product Type
Ceiling AP
Wi-Fi standard
Wi-Fi 7 (IEEE 802.11be)
Radio design
Dual-radio, 4 spatial streams, 2.4 GHz: 2 x 2, MU-MIMO, 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
3570 Mbps
5 GHz wireless data rate
2882 Mbps
2.4 GHz wireless data rate
688 Mbps
6 GHz wireless data rate
No
5 GHz channel width
Auto/20/40/80/160 MHz
Antenna
2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas
Coverage range (measured without obstruction)
140 ㎡ (1506.95 square ft.)
Maximum number of associated wireless clients
64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
Maximum number of SSIDs
8
Number of 10/100/1000/2500BASE-T ports
1
PoE In standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Local power supply
Yes, one DC power connector (12 V, 1.5 A)
Maximum power consumption
14 W
Surge protection
Ethernet port: ±2 kV for common mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Operating humidity
5% RH to 95% RH (non-condensing)
Mounting options
Ceiling/Wall
IP rating
IP41
Product dimensions (diameter x height)
Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)
Weight
≤ 0.6 kg (1.32 lbs.) (without packaging materials)
Color
White
IPv6
Yes
Colour
White
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-RAP72 |
| Manufacturer Part Number (MPN) | RG-RAP72 |
| Product Type | Ceiling AP |
| Wi-Fi standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio design | Dual-radio, 4 spatial streams, 2.4 GHz: 2 x 2, MU-MIMO, 5 GHz: 2 x 2, MU-MIMO |
| Maximum wireless data rate | 3570 Mbps |
| 5 GHz wireless data rate | 2882 Mbps |
| 2.4 GHz wireless data rate | 688 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz channel width | Auto/20/40/80/160 MHz |
| Antenna | 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas |
| Coverage range (measured without obstruction) | 140 ㎡ (1506.95 square ft.) |
| Maximum number of associated wireless clients | 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled) |
| Maximum number of SSIDs | 8 |
| Number of 10/100/1000/2500BASE-T ports | 1 |
| PoE In standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Local power supply | Yes, one DC power connector (12 V, 1.5 A) |
| Maximum power consumption | 14 W |
| Surge protection | Ethernet port: ±2 kV for common mode |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Mounting options | Ceiling/Wall |
| IP rating | IP41 |
| Product dimensions (diameter x height) | Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket) |
| Weight | ≤ 0.6 kg (1.32 lbs.) (without packaging materials) |
| Color | White |
| IPv6 | Yes |
| Colour | White |
