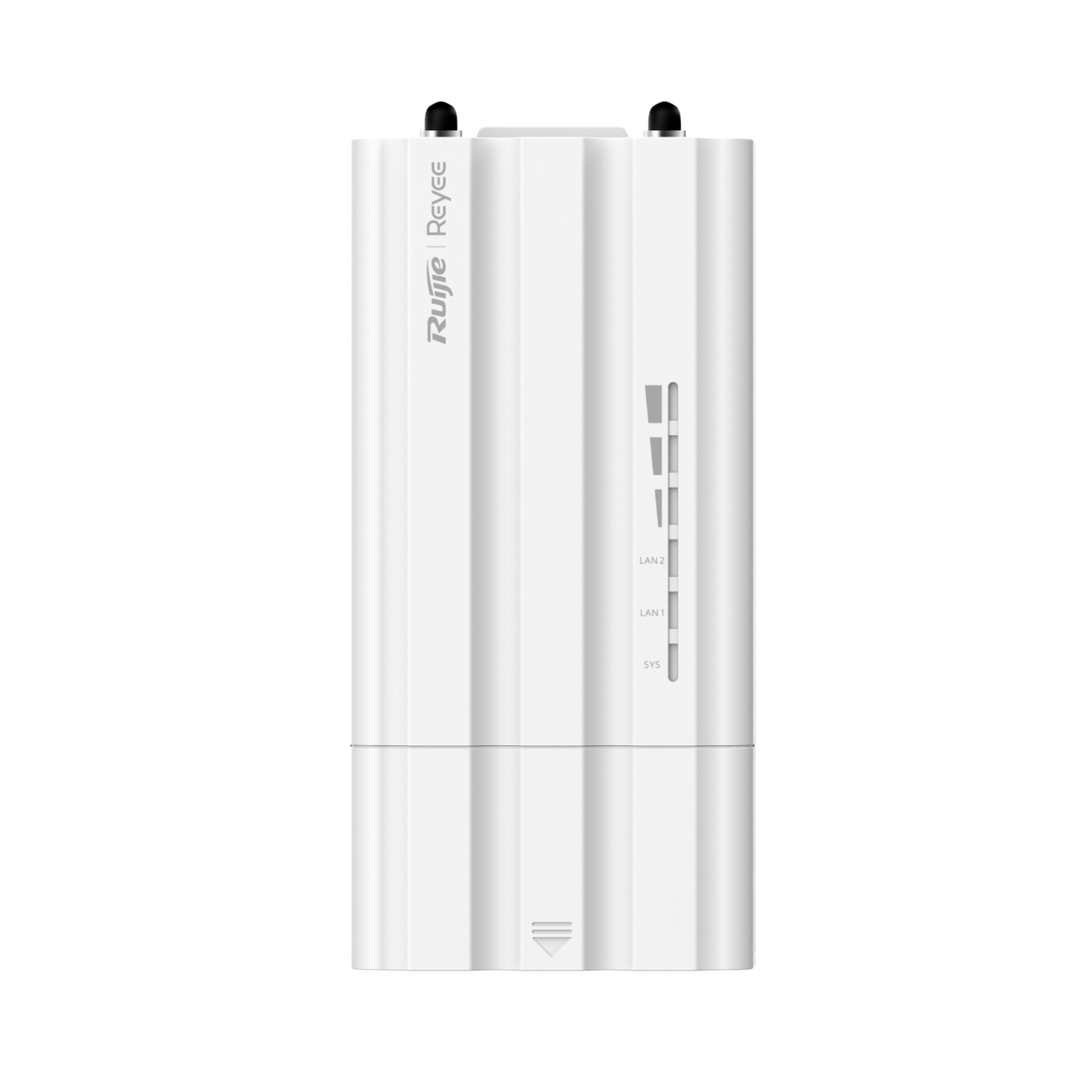

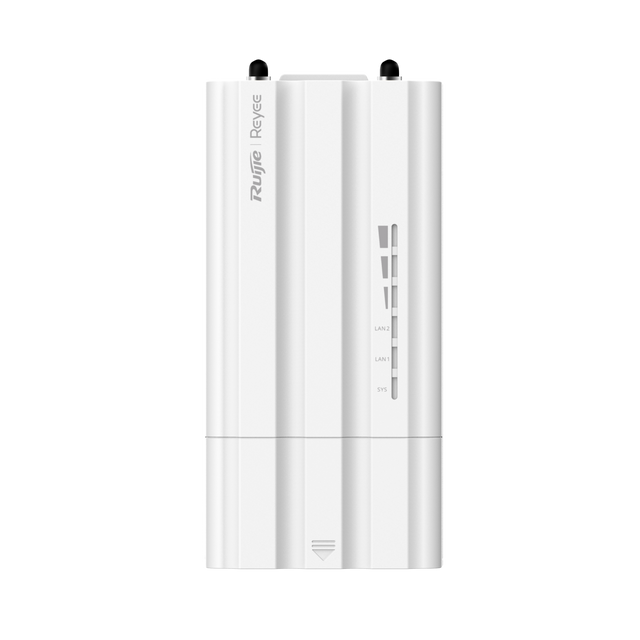

Ruijie RG-AirMetro550G-B Wireless Bridge Base Station, Up to 10 km, Max. 1:32 PTMP Links
£
115
92
(Incl. VAT)
RRP: £139.10
About this product
The Ruijie RG-AirMetro550G-B is the base station of the RG-AirMetro Series wireless bridges, supporting max. 1:32 PTMP links over a wireless transmission distance of up to 10 km, for applications such as WISP, CCTV, town, city road and factory links.
Key features
- Up to 10 km wireless transmission distance
- Max. 1:32 PTMP links, easy pairing in 30 sec
- 24 V passive PoE and 12 V DC input, for solar power supply
- Wi-Fi 5 (IEEE 802.11ac) on 5 GHz, 2 spatial streams, 2 x 2 MIMO
- IP55 rating, 6 kV surge protection and ±24 kV ESD
- Operating temperature of –40°C to +80°C (–40°F to +176°F)
- All-in-one cloud management, with device restarts through the Ruijie Reyee App
Frequently asked questions
Does the RG-AirMetro550G-B need external antennas?
Yes. External antennas are required for data transmission between bridges; the built-in 2.4 GHz omnidirectional antenna is used for device management. Third-party antennas are supported.
Which Ruijie antennas pair with this base station?
Ruijie lists the RG-ANT20S-90 (90°, 10 km sector antenna), RG-ANT16S-120 (120°, 5 km sector antenna) and RG-ANT13-360 (360°, 2 km omnidirectional antenna).
How many client bridges can connect to one base station?
It supports max. 1:32 PTMP links.
How is it powered?
By a 24 V passive PoE adapter or a DC power adapter through one DC power connector (12 V, 1 A). Maximum power consumption is 12 W.
What throughput does it give at 10 km?
With the RG-ANT20S-90 antenna the bridging performance is 77 Mbps/10 km (6.21 miles) (HT40).
Is it built for outdoor use?
It carries an IP55 rating with 6 kV surge protection and ±24 kV ESD, and an operating temperature of –40°C to +80°C (–40°F to +176°F).
£
115
92
RRP: £139.10
Save £23.18
Price
Technical Details
Specifications
Brand
Ruijie
Model
RG-AirMetro550G-B
Manufacturer Part Number (MPN)
RG-AirMetro550G-B
Wireless transmission distance
Up to 10 km
PTMP links
MAX. 1:32
Wi-Fi standard
Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/b/g/n standards
Radio design
Dual-radio, 3 spatial streams; Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO; Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width
Auto/20/40 MHz
5 GHz channel width
Auto/20/40/80 MHz
Maximum transmit power
2.4 GHz: 20 dBm (single-stream power: 20 dBm); 5 GHz: 29 dBm (single-stream power: 26 dBm)
Antenna
2.4 GHz: 1 x 1 Built-in omnidirectional antenna (device management); external antennas required for data transmission between bridges
Antenna gain (2.4 GHz)
3 dBi
Third-party antenna
Yes
Bridging performance (with RG-ANT13-360)
179 Mbps/1 km (0.62 miles) (HT40); 111 Mbps/2 km (1.24 miles) (HT40)
Bridging performance (with RG-ANT16S-120)
204 Mbps/1 km (0.62 miles) (HT40); 153 Mbps/3 km (1.86 miles) (HT40); 94 Mbps/5 km (3.11 miles) (HT40)
Bridging performance (with RG-ANT20S-90)
204 Mbps/3 km (1.86 miles) (HT40); 153 Mbps/5 km (3.11 miles) (HT40); 77 Mbps/10 km (6.21 miles) (HT40)
RSSI (with RG-ANT13-360)
-64 dBm/1 km (0.62 miles); -70 dBm/2 km (1.24 miles)
RSSI (with RG-ANT16S-120)
-58 dBm/1 km (0.62 miles) (HT40); -66 dBm/3 km (1.86 miles) (HT40); -72 dBm/5 km (3.11 miles) (HT40)
RSSI (with RG-ANT20S-90)
-60 dBm/3 km (1.86 miles) (HT40); -66 dBm/5 km (3.11 miles) (HT40); -73 dBm/10 km (6.21 miles) (HT40)
Number of PoE In ports
1
LEDs
1 x system status LED; 2 x Ethernet port LEDs; 3 x signal status LEDs
Power supply options
DC power adapter; Passive PoE adapter
Power input
24 V Passive PoE and 12 V DC Input
Local power supply
Yes, one DC power connector (12 V, 1 A)
Maximum power consumption
12 W
CPU
Dual-core processor, 880 MHz clock frequency per core
Memory
Flash memory 16 MB; RAM 128 MB DDR3
Weight (unit only)
0.31 kg (0.68 lbs)
Mounting options
Pole
Color
Elegant white
Operating temperature
–40°C to +80°C (–40°F to +176°F)
Operating humidity
5% RH to 95% RH (non-condensing)
IP rating
IP55
Surge protection
Service port: ±6 kV for common mode; Power connector: ±4 kV for common mode and ±2 kV differential mode
MTBF
400,000 hours (about 45 years)
Colour
White
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-AirMetro550G-B |
| Manufacturer Part Number (MPN) | RG-AirMetro550G-B |
| Wireless transmission distance | Up to 10 km |
| PTMP links | MAX. 1:32 |
| Wi-Fi standard | Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/b/g/n standards |
| Radio design | Dual-radio, 3 spatial streams; Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO; Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO |
| 2.4 GHz channel width | Auto/20/40 MHz |
| 5 GHz channel width | Auto/20/40/80 MHz |
| Maximum transmit power | 2.4 GHz: 20 dBm (single-stream power: 20 dBm); 5 GHz: 29 dBm (single-stream power: 26 dBm) |
| Antenna | 2.4 GHz: 1 x 1 Built-in omnidirectional antenna (device management); external antennas required for data transmission between bridges |
| Antenna gain (2.4 GHz) | 3 dBi |
| Third-party antenna | Yes |
| Bridging performance (with RG-ANT13-360) | 179 Mbps/1 km (0.62 miles) (HT40); 111 Mbps/2 km (1.24 miles) (HT40) |
| Bridging performance (with RG-ANT16S-120) | 204 Mbps/1 km (0.62 miles) (HT40); 153 Mbps/3 km (1.86 miles) (HT40); 94 Mbps/5 km (3.11 miles) (HT40) |
| Bridging performance (with RG-ANT20S-90) | 204 Mbps/3 km (1.86 miles) (HT40); 153 Mbps/5 km (3.11 miles) (HT40); 77 Mbps/10 km (6.21 miles) (HT40) |
| RSSI (with RG-ANT13-360) | -64 dBm/1 km (0.62 miles); -70 dBm/2 km (1.24 miles) |
| RSSI (with RG-ANT16S-120) | -58 dBm/1 km (0.62 miles) (HT40); -66 dBm/3 km (1.86 miles) (HT40); -72 dBm/5 km (3.11 miles) (HT40) |
| RSSI (with RG-ANT20S-90) | -60 dBm/3 km (1.86 miles) (HT40); -66 dBm/5 km (3.11 miles) (HT40); -73 dBm/10 km (6.21 miles) (HT40) |
| Number of PoE In ports | 1 |
| LEDs | 1 x system status LED; 2 x Ethernet port LEDs; 3 x signal status LEDs |
| Power supply options | DC power adapter; Passive PoE adapter |
| Power input | 24 V Passive PoE and 12 V DC Input |
| Local power supply | Yes, one DC power connector (12 V, 1 A) |
| Maximum power consumption | 12 W |
| CPU | Dual-core processor, 880 MHz clock frequency per core |
| Memory | Flash memory 16 MB; RAM 128 MB DDR3 |
| Weight (unit only) | 0.31 kg (0.68 lbs) |
| Mounting options | Pole |
| Color | Elegant white |
| Operating temperature | –40°C to +80°C (–40°F to +176°F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| IP rating | IP55 |
| Surge protection | Service port: ±6 kV for common mode; Power connector: ±4 kV for common mode and ±2 kV differential mode |
| MTBF | 400,000 hours (about 45 years) |
| Colour | White |
