Rutland Controls TS.3204.SLFB.SESE closer combined unit
About this product
Please note: this is a non-returnable item (excluding faulty goods)

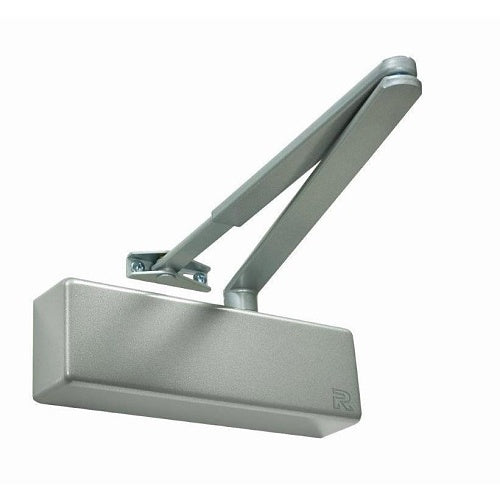

Rutland Controls TS.3204.SLFB.SESE is a closer combined unit from the TS.3204 range.
The Rutland TS.3204 Certifire approved Door Closer is an excellent choice for mid-range installations with its wide compatibility across various common door types. This door closer has successfully undergone rigorous third-party testing, meeting the standards set by BS EN1154, and is CE certified, ensuring compliance with regulations up to power size 4. BS EN 1154 Classification TS.3204 door closers have been independently tested to conform with the EN 1154 performance standard.
They are CE & UKCA marked and classified as follows: Standard Arm Fig 1. 4 8 3 3 1 3
Parallel Arm Fig 66. 3 8 3 1 1 3
BS EN 1634 Fire Test TS.3204 closers have been tested to EN 1634 for 30, 60 and 120 minute door sets.
Key features
- Fixed power size EN3 – doors up to 60kg & 950mm wide
- Universal application – can be fitted in Standard, Parallel arm or Transom fitting position
- Fire Tested to EN1634-1
- Adjustable closing & latching speed
- Power Adjustable by template EN3/4
- Certifire certificated
- CE & UKCA marked
- Corrosion Grade 3 - Recommended for internal use
- Adjustable closing and latching speed
If you are matching this to an existing installation, work from the TS.3204.SLFB.SESE part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Rutland Controls |
|---|---|
| Manufacturer Part Number | TS.3204.SLFB.SESE |
| Product Series | TS.3204 |
| Product Type | Door Closer |
General information
| Application/Usage | Universal |
|---|---|
| Packaged Quantity | 8 |
Technical information
| Device Supported | Door |
|---|
Certifications
| Certifications & Standards | BS EN 1154, BS EN 1634, CE, Certifire (Not applicable for BC versions), EPD 3.09E+01 kg CO2 eq, IFCC, UKCA, UL228 |
|---|
Physical characteristics
| Depth | 43.00mm |
|---|---|
| Height | 66.00mm |
| Width | 250.00mm |
Miscellaneous
| Additional Information | Silver |
|---|---|
| Environmental certification | UL |
| Environmental status | Yes |
Attributes
| Device Supported | Door |
|---|
