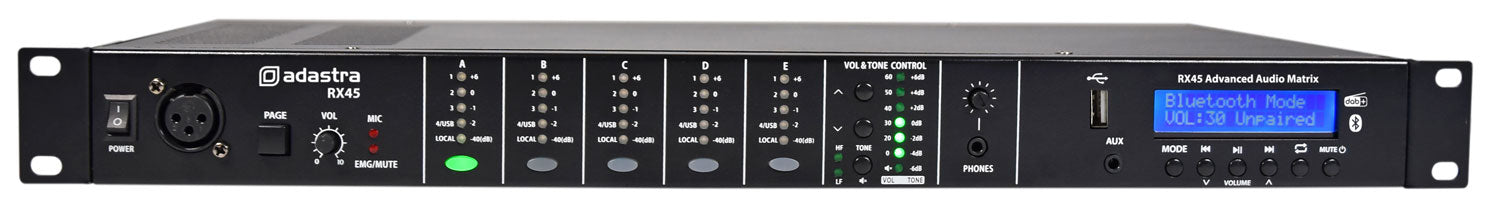

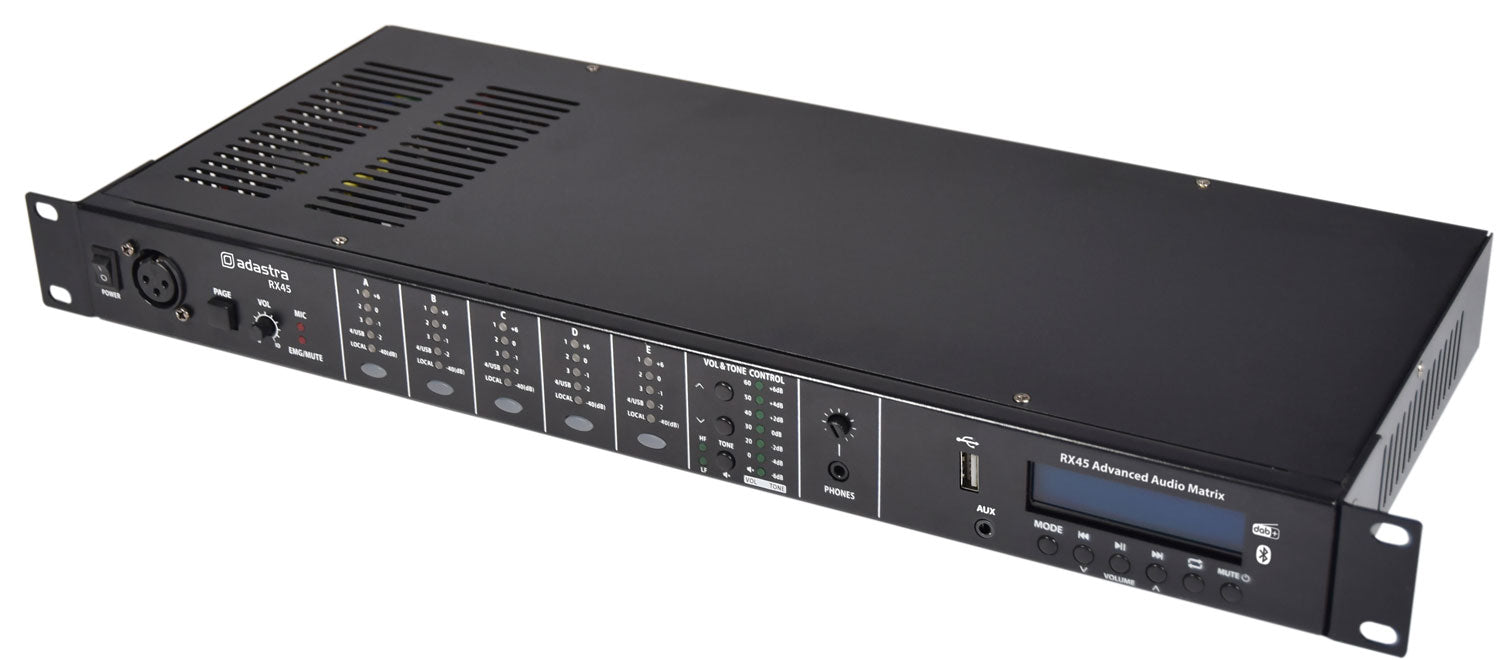

Adastra: 953.046UK, RX45 Advanced Audio Matrix, 4 Inputs, 5 Outputs, USB/DAB/Bluetooth, 1U Rack-Mountable

Product Overview & Key Benefits

TheRX45 Advanced Audio Matrixis a versatile 1U rack-mountable audio matrix designed to provide tailored audio solutions for various environments. It routes 4 selectable inputs to 5 stereo outputs, making it perfect for both commercial and domestic applications. With its built-in audio player, the RX45 supports playback from USB media, DAB+ tuner, or Bluetooth, ensuring seamless integration of multiple audio sources. This makes the RX45 an ideal choice for venues requiring sophisticated sound management, such as restaurants, cafes, and conference centres.

Technical Specifications & Product Details

• Fuse:T1AL

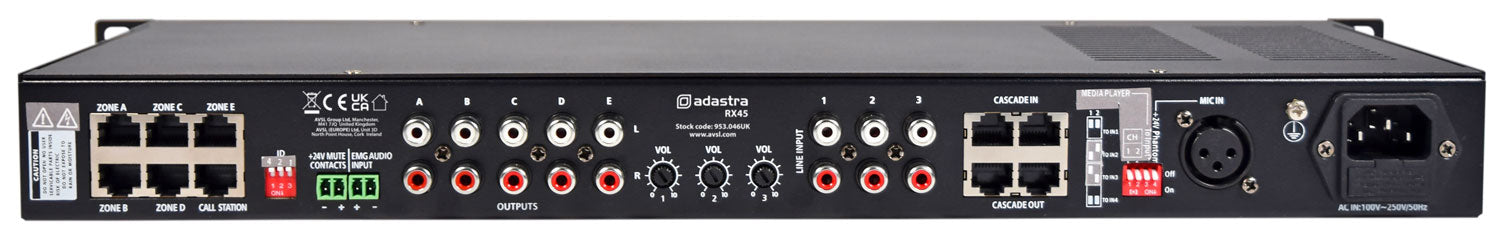

• Inputs:1 Paging mic (XLR), 3 Stereo line (RCA), 1 Call station (RJ45)
• THD +N:<0.1% @ 1kHz
• Weight:2.608kg
• Outputs:5 x Stereo zones (RCA)
• Dimensions:44mm (H) x 190mm (W) x 483mm (D)
• Attenuation:-30dB (paging)

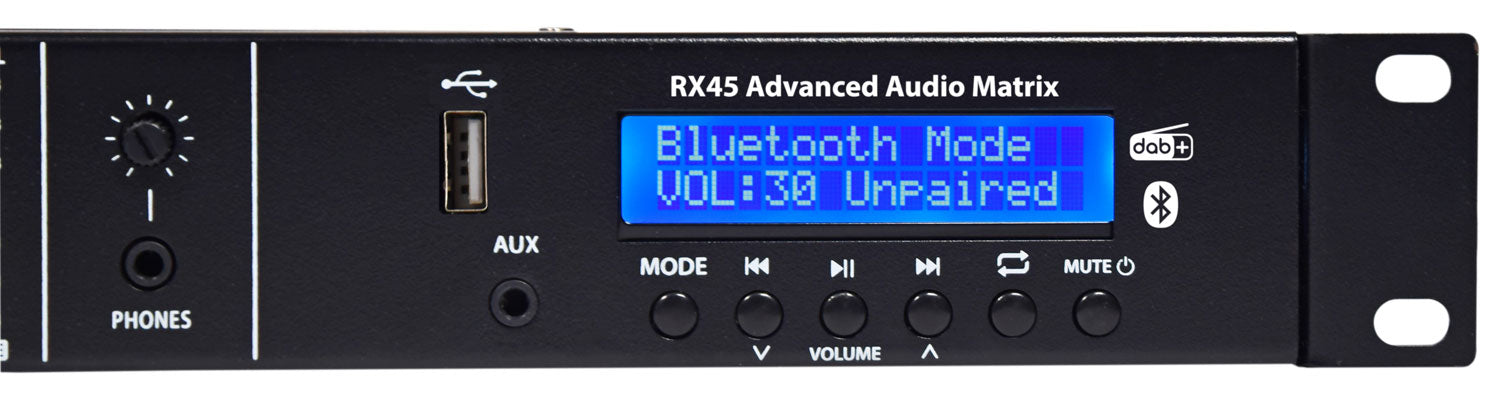

• Audio Source:Built-in USB, DAB+, and Bluetooth audio player
• Power Supply:100-250Vac, 50/60Hz (IEC lead included)
• Phantom Power:+24V switchable for paging mic.
• Link Connection:2 x 8P8C (RJ45)
• Monitor Outputs:Stereo 3.5mm headphone jack (selected channel)
• Bluetooth Version:5.0
• Emergency Control:24V mute contacts and emergency audio input
• EMG Input Sensitivity:-10dBV
• Output Impedance:600 ohms
• Line Input Sensitivity:-12.5dBV
• Remote Control Connection:8P8C (RJ45)
• Frequency Response:±3dB: 20Hz - 20kHz
• Signal to Noise Ratio (Mic):65dB
• Signal to Noise Ratio (Line):73dB
• Microphone Input Sensitivity:-41dBV
• Call Station Input Sensitivity:+4dBV

Ideal Uses & Applications

The RX45 Advanced Audio Matrix serves multiple purposes across a range of settings. Its flexibility in managing audio sources makes it suitable for:

• Domestic DIY:Enhance your home audio setup, allowing different rooms to play different audio sources.
• Commercial Buildings:Ideal for lobbies, meeting rooms, and offices where audio clarity is required.
• Hospitality Settings:Perfect for restaurants and cafes to manage music and announcements effortlessly.
• Event Venues:Use in theatres and halls where multiple audio inputs and outputs are needed for effective sound distribution.

Energy Efficiency & Cost Savings

The RX45 is designed with energy efficiency in mind. By utilising a powerful yet efficient audio playback system, users can enjoy significant reductions in energy consumption. The incorporation of a DAB+ tuner and Bluetooth functionality enhances its eco-friendliness, allowing for high-quality audio without the need for multiple devices or excessive wiring. Users can potentially save on operational costs, contributing up to 50 percent savings on energy bills when coupled with a smart audio management strategy.
