Safety Technology International G3A409LD-EN multipurpose push button, Blue
About this product
Please note: this is a non-returnable item (excluding faulty goods)

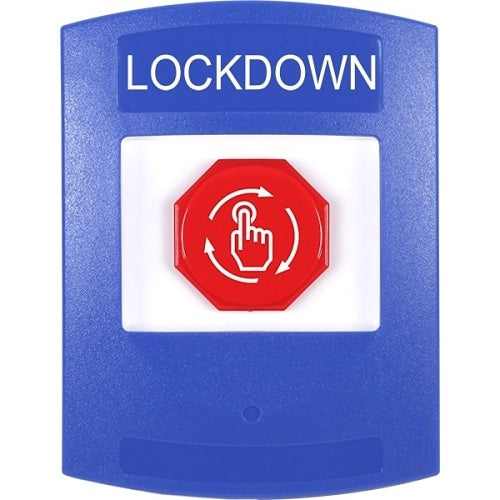

Safety Technology International G3A409LD-EN is a multipurpose push button from the G3 range.
This innovative multipurpose push button features a camera (optional) and a unique design. The camera captures video of an individual interacting with the button, as well as their movements before and after pressing the unit. The camera option is H264/H265/H265+ compatible and ONVIF ready with wiring harness included.
The button operation modes are offered in Key-to-Reset, Momentary, or Turn-to-Reset, allowing flexibility for any application. Choices include six shell colors, standard or custom wording (in any language), protective covers, or an IP camera for added identification.
Key features
- 3-in-1 configurable for multipurpose push button; Key-to-Reset, Momentary and Turn-to-Reset. Button is recessed within a durable polycarbonate housing to help prevent false activation
- Versatile mounting plate fits North American single-gang, double-gang and four-square electrical boxes, and European electrical box
- Easily integrates into an existing setup without the need for complex adjustments or modifications
- Simple reset after activation
- Durable polycarbonate with sleek, low-profile design
- 2 SPDT Form C dry contacts, rated 5A at 30 VAC/VDC, NO or NC
- Supplied for flush-mount installation; surface-mount backbox available separately
- Standard or custom activation labeling
- Shield, cover and/or IP camera for additional security
If you are matching this to an existing installation, work from the G3A409LD-EN part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Safety Technology International |
|---|---|
| Manufacturer Part Number | G3A409LD-EN |
| Product Series | G3 |
| Product Type | Lockdown |
Technical information
| Connectivity Technology | Wired |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Certifications & Standards | ADA, CE Approved, NDAA, UL/cUL Listed |
Physical characteristics
| Colour | Blue |
|---|---|
| Height | 138.00mm |
| Material | Polycarbonate |
| Width | 105.00mm |
Power description
| Input Voltage | 120V AC, 24V DC |
|---|
Product information
| Print/Message | LOCKDOWN |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 120V AC, 24V DC |
|---|
