Safety Technology International NT-SS302-EN switch, IP65
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Safety Technology International NT-SS302-EN is a switch.
This touch free button applies NoTouch technology which helps eliminate the spread of germs in any public building. To exit, a person must simply wave their hand in front of the device. The infrared will detect the motion and unlatch the time adjustable door.

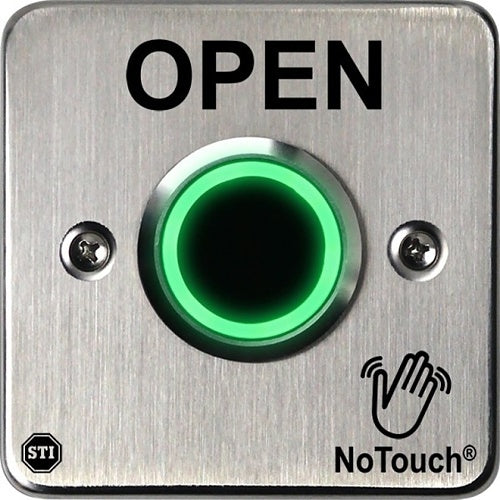

NoTouch Stainless Steel Button offers three standard models: OPEN, EXIT and the international exit symbol representing a person exiting. Custom models are also available with printing capabilities at STI’s corporate and international offices. The button is constructed of corrosion resistant stainless steel, allowing it to take tough knocks in stride.
This durable and long lasting button is easily installed within minutes right on site. The faceplate is slightly oversized for retrofit applications to cover marks from a previous install.
Key features
- NoTouch infrared (IR) wave action
- Allows user to open a protected door without the touch of a button
- To open, person waves hand in front of the IR switch
- Helps reduce the spread of germs
- Adjustable relay latch 0.5~20 second
- Faceplate constructed of medical/food grade 304 stainless steel
- Dual color status LED (green/red)
- Form “C” dry contact, 0.5A at 120VAC, 1A at 24VDC
- 3.6 in H x 3.6 in W x 1.3 in D
If you are matching this to an existing installation, work from the NT-SS302-EN part number rather than the description.
-
Download
- NT-SS302-EN — Product Manual
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Safety Technology International |
|---|---|
| Manufacturer Part Number | NT-SS302-EN |
| Product Type | Switch |
Technical information
| Operating Range | 4-15 cm |
|---|
Certifications
| Ingress protection | IP65 |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Depth | 33.02mm |
| Height | 91.44mm |
| Width | 91.44mm |
Power description
| Input Voltage | 24V DC |
|---|
Miscellaneous
| Environmental certification | CE, UK-CA |
|---|
Attributes
| Input Voltage | 24V DC |
|---|
