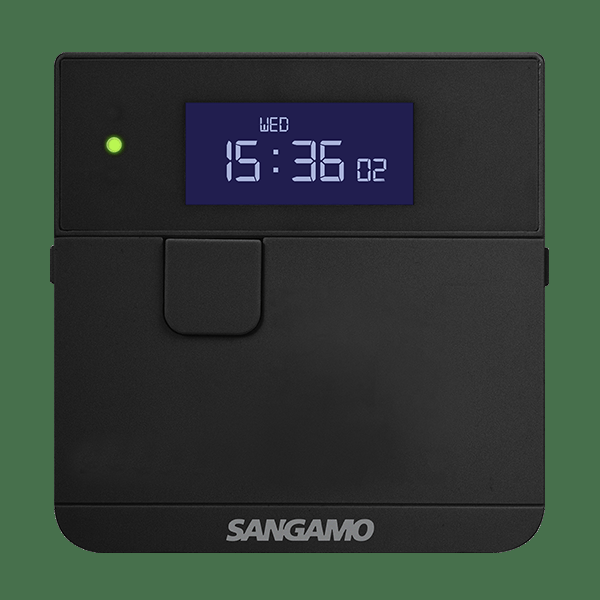

Sangamo PSPSB Powersaver Plus Select Controller Black
£
50
46
(Incl. VAT)
3 Years Warranty
POWERSAVER PLUS SELECT CONTROLLER BLACK
About this product
About this product
The Sangamo PSPSB is a programmable boost controller in matt black, an electronic 7 day time switch with boost from Sangamo's range of heating controls. It has one DPST output rated 16A resistive at 240V AC and boost durations from 15 minutes to 6 hours.
Key features
- Electronic 7 day time switch with boost
- 24 hour, 5/2 day and 7 day programming, up to 10 operations per day
- Boost: 15 minutes, 30 minutes, 1, 2, 4 or 6 hours
- 1 DPST output, 16A resistive 240V AC
- Button lock and automatic summer/winter time change
- Permanent memory reserve setting
- Single gang surface (mount box included) or flush mounting
- Matt black ABS, 86 x 86 x 35 mm
Frequently asked questions
What boost durations can be set?
15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours or 6 hours.
How many programmed operations does it allow?
Up to 10 per day, on a 24 hour, 5/2 day or 7 day schedule.
What can the output switch?
It is a single DPST switched-load output rated 16A resistive at 240V AC.
Can it be surface mounted?
Yes. It mounts single gang on the surface, with the mount box included, or flush.
Can the buttons be locked?
Yes. It has a button lock feature.
-
Download
- PSPSB Tech Sheet
£
50
46
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 35
Number of Outputs
1
Flush Mounting Back Box Depth (mm)
25
Relay/Contact Type
DPST
Finish
Matt Black
Relay Voltage - Maximum (AC)
240
Display
LCD, Clear Indication Display
Relay Resistive Load Rating (A)
16
Materials
ABS
Relay Capacitive Load Rating (A)
2
Mounting
Surface and Flush Mounting
Warranty (Years)
3
Schedule
24 Hour, 5/2 Day & 7 Day
Available Operations
Up to 10 per Day
Summer/Winter Time Change
Yes (Automatic)
Memory Reserve
Permanent Reserve Setting
Selectable Boost Durations
15 Minutes, 30 Minutes, 1 Hour, 2 Hours, 4 Hours, or 6 Hours
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Maximum Cable Size (mm²)
2.5 (Flex), 4.0 (Fixed)
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Temperature Rating
T40
Weight
0.25 kg
GTIN
5060654464097
Commodity Code
9032890090
Button Lock
Yes
Ingress Protection
IP20
Output Type
DPST, Switched Load
Dimensions
Dimensions (mm)
86 x 86 x 35
Specifications
| Dimensions (mm) | 86 x 86 x 35 |
|---|---|
| Number of Outputs | 1 |
| Flush Mounting Back Box Depth (mm) | 25 |
| Relay/Contact Type | DPST |
| Finish | Matt Black |
| Relay Voltage - Maximum (AC) | 240 |
| Display | LCD, Clear Indication Display |
| Relay Resistive Load Rating (A) | 16 |
| Materials | ABS |
| Relay Capacitive Load Rating (A) | 2 |
| Mounting | Surface and Flush Mounting |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day & 7 Day |
| Available Operations | Up to 10 per Day |
| Summer/Winter Time Change | Yes (Automatic) |
| Memory Reserve | Permanent Reserve Setting |
| Selectable Boost Durations | 15 Minutes, 30 Minutes, 1 Hour, 2 Hours, 4 Hours, or 6 Hours |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Maximum Cable Size (mm²) | 2.5 (Flex), 4.0 (Fixed) |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Temperature Rating | T40 |
| Weight | 0.25 kg |
| GTIN | 5060654464097 |
| Commodity Code | 9032890090 |
| Button Lock | Yes |
| Ingress Protection | IP20 |
| Output Type | DPST, Switched Load |
Dimensions
| Dimensions (mm) | 86 x 86 x 35 |
|---|
