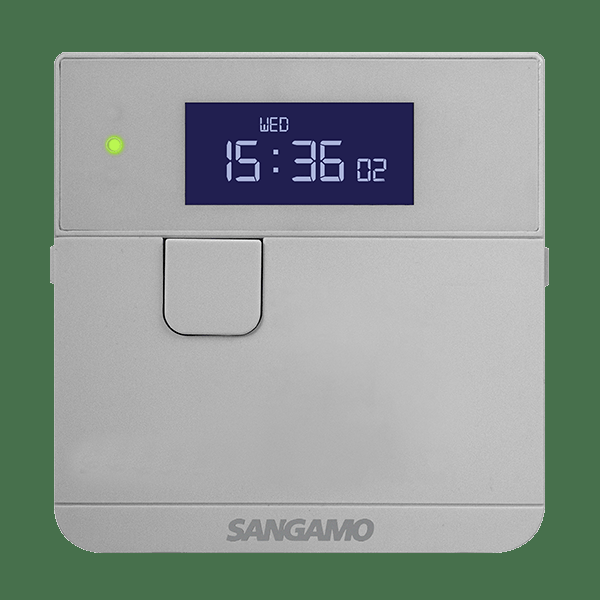

Sangamo PSPSS Powersaver Plus Select Controller Silver
£
50
46
(Incl. VAT)
3 Years Warranty
POWERSAVER PLUS SELECT CONTROLLER SILVER
About this product
About this product
The Sangamo PSPSS is an electronic 7 day time switch with boost, from Sangamo's range of heating controls, finished in silver. It programs on a 24 hour, 5/2 day or 7 day schedule with up to 10 operations per day, and switches a single DPST output rated 16A resistive at 240V AC.
Key features
- 24 hour, 5/2 day and 7 day programming, up to 10 operations per day
- Selectable boost: 15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours or 6 hours
- Button lock feature
- Automatic summer/winter time change
- Permanent reserve setting memory
- 1 DPST output: 16A resistive 240V AC, 2 A capacitive
- Single gang surface (mount box included) or flush mounting; flush back box depth 25 mm
- LCD, clear indication display; silver ABS, 86 x 86 x 35 mm
Frequently asked questions
What schedules can the PSPSS run?
24 hour, 5/2 day and 7 day, with up to 10 operations per day.
How long can the boost run?
15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours or 6 hours.
Can the buttons be locked?
Yes, it has a button lock feature.
Does it change for summer and winter time?
Yes, automatically.
Can it be surface mounted?
Yes, on a single gang surface box (included); it can also be flush mounted.
What does it switch?
A single DPST output rated 16A resistive at 240V AC.
-
Download
- PSPSS Tech Sheet
£
50
46
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 35
Number of Outputs
1
Flush Mounting Back Box Depth (mm)
25
Relay/Contact Type
DPST
Colour
Silver
Relay Voltage - Maximum (AC)
240
Display
LCD, Clear Indication Display
Relay Resistive Load Rating (A)
16
Materials
ABS
Relay Capacitive Load Rating (A)
2
Mounting
Surface and Flush Mounting
Warranty (Years)
3
Schedule
24 Hour, 5/2 Day & 7 Day
Available Operations
Up to 10 per Day
Summer/Winter Time Change
Yes (Automatic)
Memory Reserve
Permanent Reserve Setting
Selectable Boost Durations
15 Minutes, 30 Minutes, 1 Hour, 2 Hours, 4 Hours, or 6 Hours
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Maximum Cable Size (mm²)
2.5 (Flex), 4.0 (Fixed)
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Temperature Rating
T40
Weight
0.25 kg
GTIN
5060654464240
Commodity Code
9032890090
Button Lock
Yes
Ingress Protection
IP20
Output Type
DPST, Switched Load
Output Relay Rating
16A Resistive 240V AC
Dimensions
Dimensions (mm)
86 x 86 x 35
Specifications
| Dimensions (mm) | 86 x 86 x 35 |
|---|---|
| Number of Outputs | 1 |
| Flush Mounting Back Box Depth (mm) | 25 |
| Relay/Contact Type | DPST |
| Colour | Silver |
| Relay Voltage - Maximum (AC) | 240 |
| Display | LCD, Clear Indication Display |
| Relay Resistive Load Rating (A) | 16 |
| Materials | ABS |
| Relay Capacitive Load Rating (A) | 2 |
| Mounting | Surface and Flush Mounting |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day & 7 Day |
| Available Operations | Up to 10 per Day |
| Summer/Winter Time Change | Yes (Automatic) |
| Memory Reserve | Permanent Reserve Setting |
| Selectable Boost Durations | 15 Minutes, 30 Minutes, 1 Hour, 2 Hours, 4 Hours, or 6 Hours |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Maximum Cable Size (mm²) | 2.5 (Flex), 4.0 (Fixed) |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Temperature Rating | T40 |
| Weight | 0.25 kg |
| GTIN | 5060654464240 |
| Commodity Code | 9032890090 |
| Button Lock | Yes |
| Ingress Protection | IP20 |
| Output Type | DPST, Switched Load |
| Output Relay Rating | 16A Resistive 240V AC |
Dimensions
| Dimensions (mm) | 86 x 86 x 35 |
|---|
POWERSAVER PLUS SELECT CONTROLLER SILVER features
Sangamo PSPSS Powersaver Plus Select Controller Silver
