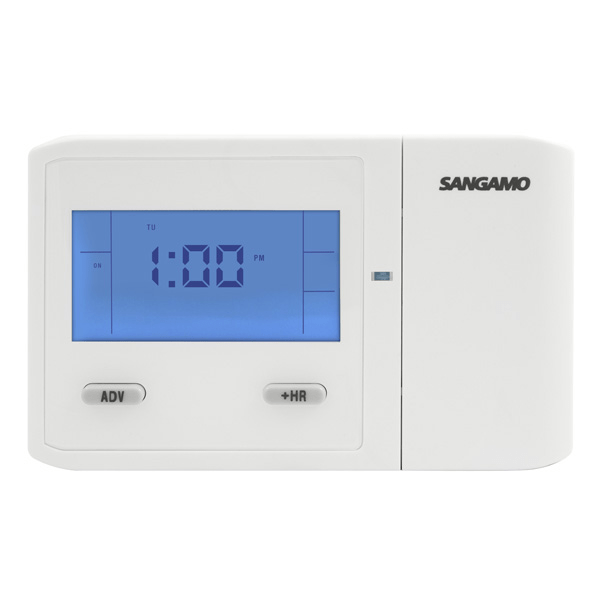

Sangamo CHOICE PR1N 1 Channel Programmer
£
43
55
(Incl. VAT)
3 Years Warranty
1 Channel Programmer
About this product
About this product
From Sangamo's range of heating controls, the CHOICE PR1N is a 1 channel programmer with a backlit LCD and 24 hour, 5/2 day and 7 day programming. Its output is a volt free contact, and it is for pumped heating systems only.
Key features
- 24 hour, 5/2 day and 7 day programmable; 2 or 3 ON/OFF periods
- Modes: On, Off, Auto, All Day; 1, 2 or 3 hour boost
- Backlit LCD; 12 hour am/pm clock, 1 minute resolution
- Automatic summer/winter time change, holiday mode, advance to next programmed event
- Volt free contact output: 2 A resistive, 1 A inductive, maximum 230 V AC
- Pumped heating systems only
- Supply 100 - 240 V AC, fixed wiring only; Class II, double insulated construction
Frequently asked questions
Which heating systems is the CHOICE PR1N for?
Pumped systems only.
How many ON/OFF periods can be set?
2 or 3, on a 24 hour, 5/2 day or 7 day schedule.
Does it change for summer and winter time?
Yes, automatically.
What is the output rating?
A volt free contact rated 2 A resistive and 1 A inductive, at a maximum of 230 V AC.
Which battery does it use?
A CR2032 lithium cell.
-
Download
- CHOICE PR1N Tech Sheet
£
43
55
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
140 x 87 x 37
Relay/Contact Type
1B, Micro-Disconnection (Volt Free)
Display
Backlit LCD
Relay Voltage - Maximum (AC)
230
Clock
12 hour am/pm, 1 minute resolution
Relay Resistive Load Rating (A)
2
Timing Accuracy
±1.5 Second / Day
Relay Inductive Load Rating (A)
1
Materials
Thermoplastics, Flame Retardant
Type
Volt Free Contact
Mounting
Surface Only
Heating System
Pumped Only
Warranty (Years)
3
Schedule
24 Hour, 5/2 Day and 7 Day
Available Operations
2 or 3 ON/OFF Periods
Modes Available
On, Off, Auto, All Day
Summer/Winter Time Change
Yes (Automatic)
Programme Resolution (Mins)
10
Selectable Boost Durations
1,2 or 3 Hour Boost
Supply Voltage (V AC)
100 - 240
Wiring Type
Fixed wiring only
Global Selections
Volt-Free; Common/Normally Open/Normally Closed
Battery Type
Lithium Cell CR2032
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Additional Information
Double Insulated Construction
Ingress Protection
IP30
Pre-Programmed Schedule
Yes
Holiday Mode
Yes
Dimensions
Dimensions (mm)
140 x 87 x 37
Specifications
| Dimensions (mm) | 140 x 87 x 37 |
|---|---|
| Relay/Contact Type | 1B, Micro-Disconnection (Volt Free) |
| Display | Backlit LCD |
| Relay Voltage - Maximum (AC) | 230 |
| Clock | 12 hour am/pm, 1 minute resolution |
| Relay Resistive Load Rating (A) | 2 |
| Timing Accuracy | ±1.5 Second / Day |
| Relay Inductive Load Rating (A) | 1 |
| Materials | Thermoplastics, Flame Retardant |
| Type | Volt Free Contact |
| Mounting | Surface Only |
| Heating System | Pumped Only |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day and 7 Day |
| Available Operations | 2 or 3 ON/OFF Periods |
| Modes Available | On, Off, Auto, All Day |
| Summer/Winter Time Change | Yes (Automatic) |
| Programme Resolution (Mins) | 10 |
| Selectable Boost Durations | 1,2 or 3 Hour Boost |
| Supply Voltage (V AC) | 100 - 240 |
| Wiring Type | Fixed wiring only |
| Global Selections | Volt-Free; Common/Normally Open/Normally Closed |
| Battery Type | Lithium Cell CR2032 |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Additional Information | Double Insulated Construction |
| Ingress Protection | IP30 |
| Pre-Programmed Schedule | Yes |
| Holiday Mode | Yes |
Dimensions
| Dimensions (mm) | 140 x 87 x 37 |
|---|
