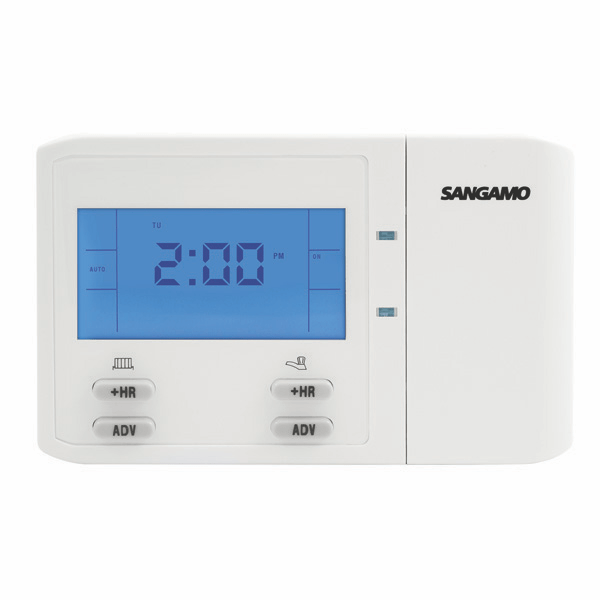

Sangamo CHOICE PR2N 2 Channel Programmer
£
48
90
(Incl. VAT)
3 Years Warranty
2 Channel Programmer
About this product
About this product
The Sangamo CHOICE PR2N is a 2 channel heating programmer for pumped or gravity heating systems, programmable on a 24 hour, 5/2 day or 7 day schedule with 2 or 3 ON/OFF periods. It has On, Off, Auto and All Day modes, 1, 2 or 3 hour boost and a holiday mode.
Key features
- 2 channel SPDT output, switched live
- 24 hour, 5/2 day and 7 day programmable
- 2 or 3 ON/OFF periods
- Modes: On, Off, Auto, All Day
- 1, 2 or 3 hour boost; advance to next programmed event; holiday mode
- Automatic summer/winter time change
- For pumped or gravity heating systems
- 100 - 240 V AC supply; flame-retardant thermoplastics; surface mounting only; 140 x 87 x 37 mm
Frequently asked questions
How many channels does the CHOICE PR2N have?
2 channels, with a 2 channel SPDT switched live output.
What programming schedules does it support?
24 hour, 5/2 day and 7 day, with 2 or 3 ON/OFF periods.
Does it have a boost function?
Yes. Boost durations of 1, 2 or 3 hours are selectable.
Does it change for summer and winter time?
Yes, automatically.
Which heating systems is it for?
Pumped or gravity systems.
-
Download
- CHOICE PR2N Tech Sheet
£
48
90
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
140 x 87 x 37
Number of Outputs
2
Display
Backlit LCD
Relay/Contact Type
1B, Micro-Disconnection
Clock
12 hour am/pm, 1 minute resolution
Relay Voltage - Maximum (AC)
230
Timing Accuracy
±1.5 Second / Day
Relay Resistive Load Rating (A)
2
Materials
Thermoplastics, Flame Retardant
Relay Inductive Load Rating (A)
1
Mounting
Surface Only
Load Rating Comment
Per Channel
Heating System
Pumped or Gravity
Type
Switched Live
Warranty (Years)
3
Schedule
24 Hour, 5/2 Day and 7 Day
Available Operations
2 or 3 ON/OFF Periods
Modes Available
On, Off, Auto, All Day
Summer/Winter Time Change
Yes (Automatic)
Programme Resolution (Mins)
10
Selectable Boost Durations
1,2 or 3 Hour Boost
Supply Voltage (V AC)
100 - 240
Wiring Type
Fixed wiring only
Global Selections
Normally Open & Normally Closed
Battery Type
Lithium Cell CR2032
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Additional Information
Double Insulated Construction
BACKLIT
3
Output Type
2 Channel SPDT, Switched Live
Dimensions
Dimensions (mm)
140 x 87 x 37
Specifications
| Dimensions (mm) | 140 x 87 x 37 |
|---|---|
| Number of Outputs | 2 |
| Display | Backlit LCD |
| Relay/Contact Type | 1B, Micro-Disconnection |
| Clock | 12 hour am/pm, 1 minute resolution |
| Relay Voltage - Maximum (AC) | 230 |
| Timing Accuracy | ±1.5 Second / Day |
| Relay Resistive Load Rating (A) | 2 |
| Materials | Thermoplastics, Flame Retardant |
| Relay Inductive Load Rating (A) | 1 |
| Mounting | Surface Only |
| Load Rating Comment | Per Channel |
| Heating System | Pumped or Gravity |
| Type | Switched Live |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day and 7 Day |
| Available Operations | 2 or 3 ON/OFF Periods |
| Modes Available | On, Off, Auto, All Day |
| Summer/Winter Time Change | Yes (Automatic) |
| Programme Resolution (Mins) | 10 |
| Selectable Boost Durations | 1,2 or 3 Hour Boost |
| Supply Voltage (V AC) | 100 - 240 |
| Wiring Type | Fixed wiring only |
| Global Selections | Normally Open & Normally Closed |
| Battery Type | Lithium Cell CR2032 |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Additional Information | Double Insulated Construction |
| BACKLIT | 3 |
| Output Type | 2 Channel SPDT, Switched Live |
Dimensions
| Dimensions (mm) | 140 x 87 x 37 |
|---|
2 Channel Programmer features
