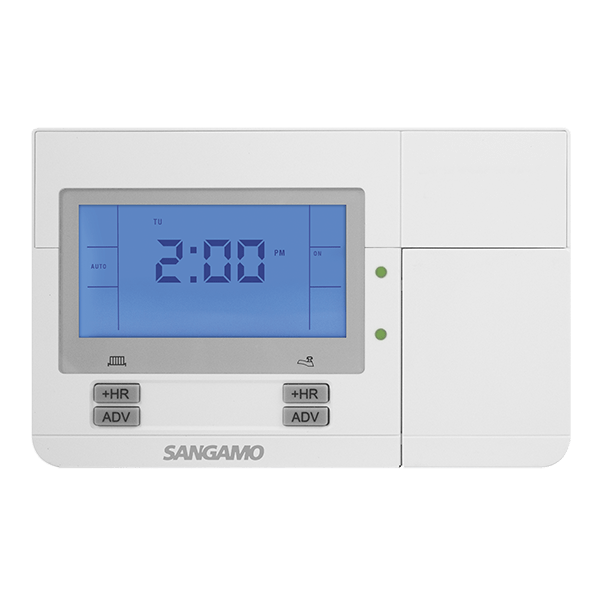

Sangamo Choice CHPPR2 2 Channel Programmer, White
£
45
67
(Incl. VAT)
3 Years Warranty
2 Channel Programmer, White
About this product
About this product
The Sangamo Choice CHPPR2 is a 2 Channel Programmer, White. Featuring a white finish, it is built for dependable professional installation.
Key Features
- Holiday mode
- Pre-programmed schedule ready for use
- Summer/winter time change
- Backlit display
- A white finish
-
Download
- CHPPR2 Tech Sheet
£
45
67
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
2
Finish
Gloss White
Relay Voltage - Maximum (AC)
230
Display
Backlit LCD
Relay Resistive Load Rating (A)
2
Clock
12 hour am/pm, 1 minute resolution
Relay Inductive Load Rating (A)
1
Timing Accuracy
±1.5 Second / Day
Materials
ABS
Heating System
Gravity or Pumped
Warranty (Years)
3
Schedule
24 Hour, 5/2 Day and 7 Day
Available Operations
2 or 3 ON/OFF Periods
Modes Available
On, Off, Auto, All Day
Summer/Winter Time Change
Yes (Automatic)
With/without Service Interval Function
Optional Setting
Selectable Boost Durations
1,2 or 3 Hour Boost
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
Fixed wiring only
Battery Type
Lithium Cell CR1225
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Dimensions
Width
90 mm
Height
42 mm
Depth
148 mm
Specifications
| Number of Outputs | 2 |
|---|---|
| Finish | Gloss White |
| Relay Voltage - Maximum (AC) | 230 |
| Display | Backlit LCD |
| Relay Resistive Load Rating (A) | 2 |
| Clock | 12 hour am/pm, 1 minute resolution |
| Relay Inductive Load Rating (A) | 1 |
| Timing Accuracy | ±1.5 Second / Day |
| Materials | ABS |
| Heating System | Gravity or Pumped |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day and 7 Day |
| Available Operations | 2 or 3 ON/OFF Periods |
| Modes Available | On, Off, Auto, All Day |
| Summer/Winter Time Change | Yes (Automatic) |
| With/without Service Interval Function | Optional Setting |
| Selectable Boost Durations | 1,2 or 3 Hour Boost |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | Fixed wiring only |
| Battery Type | Lithium Cell CR1225 |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
Dimensions
| Width | 90 mm |
|---|---|
| Height | 42 mm |
| Depth | 148 mm |
