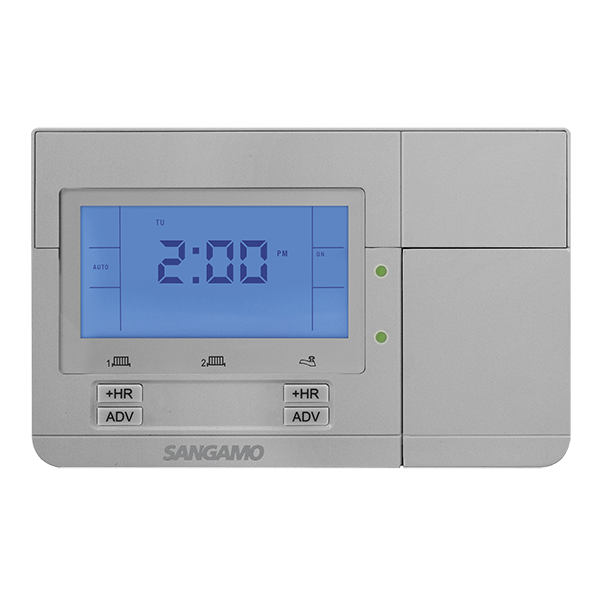

Sangamo Choice CHPPR2S 2 Channel Programmer, Silver
£
57
47
(Incl. VAT)
3 Years Warranty
2 Channel Programmer, Silver
About this product
About this product
The Sangamo CHPPR2S is a silver 2 channel programmer from Sangamo's range of heating controls, with a backlit display and an optional service interval function. Its output is 2 channel, SPDT, switched live, and it is 24 hour, 5/2 day and 7 day programmable with 2 or 3 ON/OFF periods.
Key features
- 2 channel, SPDT, switched live output
- 24 hour, 5/2 day and 7 day programmable, 2 or 3 ON/OFF periods
- Modes: on, off, auto, all day; 1, 2 or 3 hour boost
- Holiday mode and a pre-programmed schedule ready for use
- Automatic summer/winter time change
- Backlit LCD display; optional service interval function
- Output relay rating 2 A resistive, 1 A inductive
- For gravity or pumped heating systems
Frequently asked questions
How many channels does the CHPPR2S have?
2. The output is 2 channel, SPDT, switched live.
What programming options does it have?
24 hour, 5/2 day and 7 day programming, with 2 or 3 ON/OFF periods.
Does it have a holiday mode?
Yes. It also has a pre-programmed schedule ready for use.
Is the service interval function optional?
Yes. The service interval function is an optional setting.
What is the relay rating?
2 A resistive and 1 A inductive.
-
Download
- CHPPR2S Tech Sheet
£
57
47
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
2
Colour
Silver
Relay Voltage - Maximum (AC)
230
Display
Backlit LCD
Relay Resistive Load Rating (A)
2
Clock
12 hour am/pm, 1 minute resolution
Relay Inductive Load Rating (A)
1
Timing Accuracy
±1.5 Second / Day
Materials
ABS
Heating System
Gravity or Pumped
Warranty (Years)
3
Schedule
24 Hour, 5/2 Day and 7 Day
Available Operations
2 or 3 ON/OFF Periods
Modes Available
On, Off, Auto, All Day
Summer/Winter Time Change
Yes (Automatic)
With/without Service Interval Function
Optional Setting
Selectable Boost Durations
1,2 or 3 Hour Boost
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
Fixed wiring only
Battery Type
Lithium Cell CR1225
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Mounting
Surface Only
Output Type
2 Channel, SPDT, Switched Live
Ingress Protection
IP30
Pre-Programmed Schedule
Yes
Holiday Mode
Yes
Dimensions (mm)
140 x 88.6 x 32.1
Specifications
| Number of Outputs | 2 |
|---|---|
| Colour | Silver |
| Relay Voltage - Maximum (AC) | 230 |
| Display | Backlit LCD |
| Relay Resistive Load Rating (A) | 2 |
| Clock | 12 hour am/pm, 1 minute resolution |
| Relay Inductive Load Rating (A) | 1 |
| Timing Accuracy | ±1.5 Second / Day |
| Materials | ABS |
| Heating System | Gravity or Pumped |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day and 7 Day |
| Available Operations | 2 or 3 ON/OFF Periods |
| Modes Available | On, Off, Auto, All Day |
| Summer/Winter Time Change | Yes (Automatic) |
| With/without Service Interval Function | Optional Setting |
| Selectable Boost Durations | 1,2 or 3 Hour Boost |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | Fixed wiring only |
| Battery Type | Lithium Cell CR1225 |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Mounting | Surface Only |
| Output Type | 2 Channel, SPDT, Switched Live |
| Ingress Protection | IP30 |
| Pre-Programmed Schedule | Yes |
| Holiday Mode | Yes |
| Dimensions (mm) | 140 x 88.6 x 32.1 |
