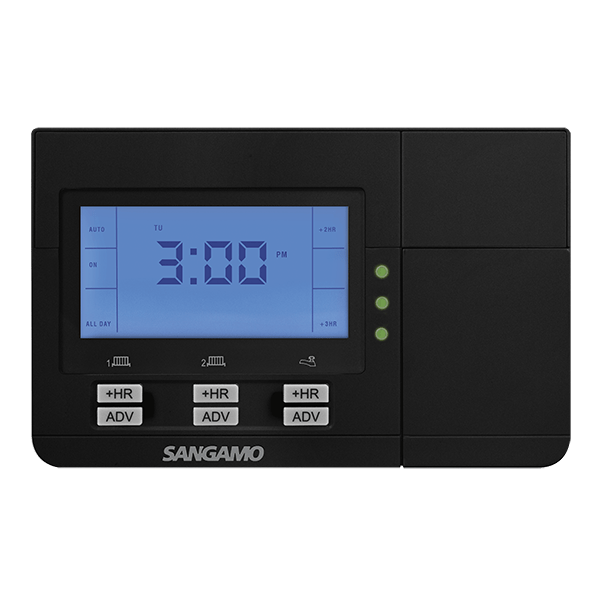

Sangamo Choice CHPPR3B 3 Channel Programmer, Black
About this product
The Sangamo Choice CHPPR3B is a 3 Channel Programmer, Black. Featuring a black finish, it is built for dependable professional installation.
Key Features
- Holiday mode
- Pre-programmed schedule ready for use
- Summer/winter time change
- Backlit display
- A black finish
In Detail
Precise time and temperature control cuts energy waste and keeps spaces comfortable, and this central heating programmer gives installers a dependable, easy-to-set solution for domestic and light-commercial heating.
Straightforward wiring and intuitive programming keep installation and handover quick, while robust construction supports years of reliable service.
The Sangamo Choice CHPPR3B is a practical choice wherever a reliable central heating programmer is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Sangamo Choice |
| Product code | CHPPR3B |
| Number of Outputs | 3 |
| Finish | Matt Black |
| Relay Voltage - Maximum (AC) | 230 |
| Display | Backlit LCD |
| Relay Resistive Load Rating (A) | 2 |
| Clock | 12 hour am/pm, 1 minute resolution |
| Relay Inductive Load Rating (A) | 1 |
| Timing Accuracy | ±1.5 Second / Day |
| Materials | ABS |
| Heating System | Pumped Only |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day and 7 Day |
| Available Operations | 2 or 3 ON/OFF Periods |
| Modes Available | On, Off, Auto, All Day |
| Summer/Winter Time Change | Yes (Automatic) |
| With/without Service Interval Function | Optional Setting |
| Selectable Boost Durations | 1,2 or 3 Hour Boost |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | Fixed wiring only |
| Battery Type | Lithium Cell CR1225 |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Dimensions | 148 × 90 × 42 mm |
| Weight | 0.33 kg |
| GTIN | 5060654464219 |
| Commodity Code | 9032890090 |
