Sangamo Choice CHPPR3S 3 Channel Programmer, Silver
£
68
02
(Incl. VAT)
3 Years Warranty
3 Channel Programmer, Silver
About this product
About this product

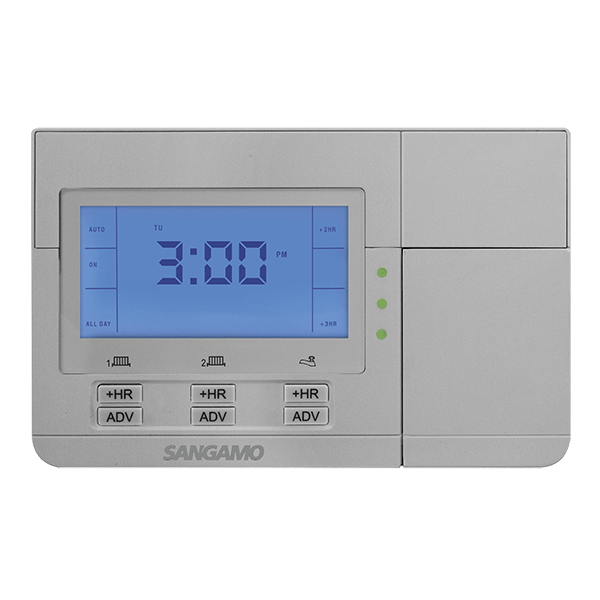

The Choice CHPPR3S from Sangamo is a 3 channel programmer with a silver finish, a backlit LCD and an optional service interval function, programmable 24 hour, 5/2 day or 7 day. Its 3 channel output is SPDT, switched live, rated 2 A resistive and 1 A inductive.
Key features
- Pre-programmed schedule ready for use; holiday mode
- Selectable 1, 2 or 3 hour boost
- Optional service interval function
- Backlit LCD; 12 hour am/pm clock with 1 minute resolution; automatic summer/winter time change
- For pumped heating systems only; fixed wiring only
- 3 outputs; 3 channel, SPDT, switched live
- Programming schedule: 24 hour, 5/2 day and 7 day programmable; 2 or 3 ON/OFF periods
- Modes: on, off, auto, all day
Frequently asked questions
How many channels does the CHPPR3S have?
3: 3 channel, SPDT, switched live.
What heating systems is it for?
Pumped only, with fixed wiring only.
What battery does it take?
A lithium cell CR1225.
Does it change for summer and winter time?
Yes, automatically.
Which schedules can it run?
24 hour, 5/2 day and 7 day programmable, with 2 or 3 ON/OFF periods.
-
Download
- CHPPR3S Tech Sheet
£
68
02
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
3
Colour
Silver
Relay Voltage - Maximum (AC)
230
Display
Backlit LCD
Relay Resistive Load Rating (A)
2
Clock
12 hour am/pm, 1 minute resolution
Relay Inductive Load Rating (A)
1
Timing Accuracy
±1.5 Second / Day
Materials
ABS
Heating System
Pumped Only
Warranty (Years)
3
Available Operations
2 or 3 ON/OFF Periods
Modes Available
On, Off, Auto, All Day
Summer/Winter Time Change
Yes (Automatic)
With/without Service Interval Function
Optional Setting
Selectable Boost Durations
1,2 or 3 Hour Boost
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
Fixed wiring only
Battery Type
Lithium Cell CR1225
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Programming Schedule
24 Hour, 5/2 Day and 7 Day Programmable
Dimensions (mm)
140 x 88.6 x 32.1
Pre-Programmed Schedule
Yes
Holiday Mode
Yes
Ingress Protection
IP30
Mounting
Surface Only
Output Type
3 Channel, SPDT, Switched Live
Specifications
| Number of Outputs | 3 |
|---|---|
| Colour | Silver |
| Relay Voltage - Maximum (AC) | 230 |
| Display | Backlit LCD |
| Relay Resistive Load Rating (A) | 2 |
| Clock | 12 hour am/pm, 1 minute resolution |
| Relay Inductive Load Rating (A) | 1 |
| Timing Accuracy | ±1.5 Second / Day |
| Materials | ABS |
| Heating System | Pumped Only |
| Warranty (Years) | 3 |
| Available Operations | 2 or 3 ON/OFF Periods |
| Modes Available | On, Off, Auto, All Day |
| Summer/Winter Time Change | Yes (Automatic) |
| With/without Service Interval Function | Optional Setting |
| Selectable Boost Durations | 1,2 or 3 Hour Boost |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | Fixed wiring only |
| Battery Type | Lithium Cell CR1225 |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Programming Schedule | 24 Hour, 5/2 Day and 7 Day Programmable |
| Dimensions (mm) | 140 x 88.6 x 32.1 |
| Pre-Programmed Schedule | Yes |
| Holiday Mode | Yes |
| Ingress Protection | IP30 |
| Mounting | Surface Only |
| Output Type | 3 Channel, SPDT, Switched Live |
3 Channel Programmer, Silver features
Sangamo Choice CHPPR3S 3 Channel Programmer, Silver
