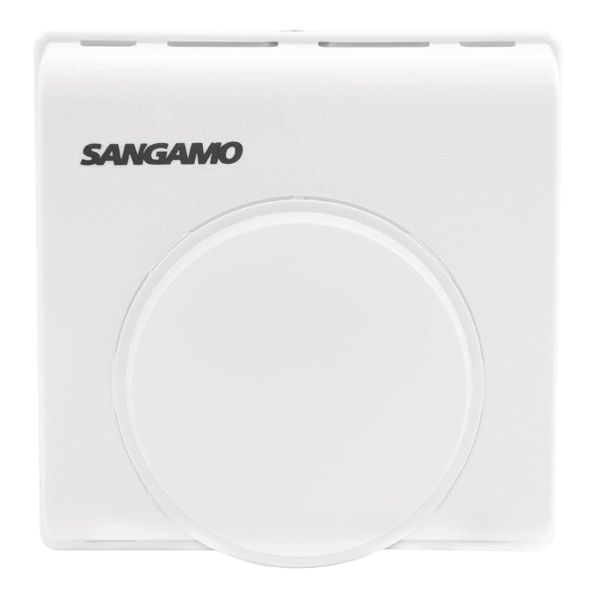

Sangamo CHOICE RSTAT1T Tamperproof Mechanical Thermostat
£
15
61
(Incl. VAT)
3 Years Warranty
Tamperproof Mechanical Thermostat
About this product
About this product
The Sangamo CHOICE RSTAT1T is a tamperproof heating thermostat: a mechanical thermostat with a dual diaphragm temperature sensing element, supplied complete with a tamper resistance cover with screw.
Key features
- Tamper resistance cover with screw
- Dual diaphragm temperature sensing element
- 10 to 30°C set point range, differential approx. 4°C
- 10 amp current rating (10 A resistive, 3 A inductive)
- Volt free SPDT output (heating and cooling load); three terminal heating/cooling changeover
- 2 wire installation
- Double insulated
- IP21; operating temperature 0 to +40°C
Frequently asked questions
What makes the RSTAT1T tamperproof?
It comes complete with a tamper resistance cover with screw.
What temperature range can it be set to?
10 to 30°C, with a temperature differential of approx. 4°C.
Can it switch cooling as well as heating?
Yes: the output is volt free SPDT for heating and cooling load, with three terminal heating/cooling changeover.
How many wires does it need?
It is a 2 wire installation.
What size is it?
83 x 83 x 37 mm, in white ABS.
-
Download
- CHOICE RSTAT1T Tech Sheet
£
15
61
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
83 x 83 x 37
Relay Resistive Load Rating (A)
10
Colour
White
Relay Inductive Load Rating (A)
3
Sensor Type
Dual Mechanical Diaphram
Type
Volt Free SPDT (Heating and Cooling Load)
Tamper Resistant
Yes (Tamper Resistance Cover with Screw)
Warranty (Years)
3
Set Temperature Range (°C)
10 to 30
Temperature Differential (°C)
Approx. 4
Maximum Switchable Voltage
230
Operating Temperature (°C)
0 to +40
Additional Information
Double Insulated Construction
Ingress Protection
IP21
Materials
ABS
Dimensions
Dimensions (mm)
83 x 83 x 37
Specifications
| Dimensions (mm) | 83 x 83 x 37 |
|---|---|
| Relay Resistive Load Rating (A) | 10 |
| Colour | White |
| Relay Inductive Load Rating (A) | 3 |
| Sensor Type | Dual Mechanical Diaphram |
| Type | Volt Free SPDT (Heating and Cooling Load) |
| Tamper Resistant | Yes (Tamper Resistance Cover with Screw) |
| Warranty (Years) | 3 |
| Set Temperature Range (°C) | 10 to 30 |
| Temperature Differential (°C) | Approx. 4 |
| Maximum Switchable Voltage | 230 |
| Operating Temperature (°C) | 0 to +40 |
| Additional Information | Double Insulated Construction |
| Ingress Protection | IP21 |
| Materials | ABS |
Dimensions
| Dimensions (mm) | 83 x 83 x 37 |
|---|
Tamperproof Mechanical Thermostat features
Sangamo CHOICE RSTAT1T Tamperproof Mechanical Thermostat
