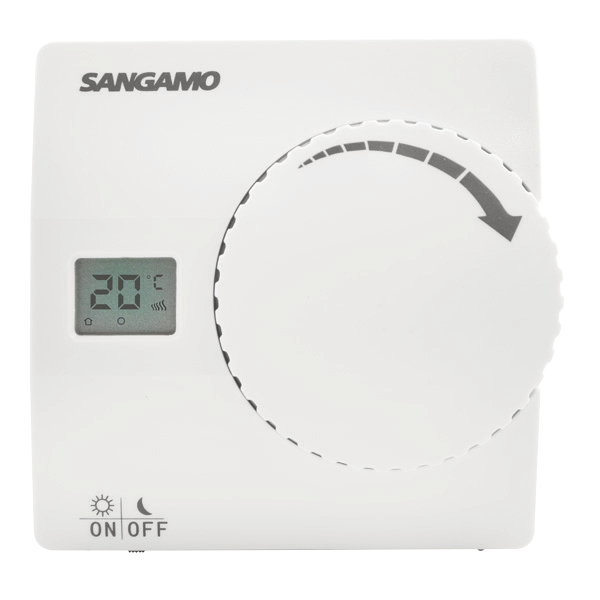

Sangamo CHOICE RSTAT3 Digital Thermostat
£
31
86
(Incl. VAT)
3 Years Warranty
Digital Thermostat
About this product
About this product
The Sangamo CHOICE RSTAT3 is a battery-powered digital thermostat with an LCD showing room temperature, comfort/economy or on/off modes and frost protection. It has a set temperature range of 5 to 30 °C and a volt-free SPDT output.
Key features
- Digital thermostat with LCD showing room temperature
- Comfort/economy or on/off modes
- Frost protection
- Set temperature range 5 to 30 °C; electronic sensor
- SPDT volt-free output (NO, COM & NC), 3A
- Battery powered: 3 V DC (2 x AA batteries), with battery low indication
- 2 wire installation, surface mounting
Frequently asked questions
What modes does the CHOICE RSTAT3 have?
Comfort/economy or on/off modes, with frost protection.
How is it powered?
By 2 x AA batteries (3 V DC), with battery low indication.
What output does it have?
An SPDT volt-free output (NO, COM & NC) with an output relay rating of 3A.
What is the set temperature range?
5 to 30 °C.
How is it installed?
As a 2 wire installation, surface mounting only.
-
Download
- CHOICE RSTAT3 Tech Sheet
£
31
86
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 32
Relay Resistive Load Rating (A)
3
Colour
White
Sensor Type
Electronic
Materials
ABS
Warranty (Years)
3
Adjustment Type
Large Dial with Digital Display
Set Temperature Range (°C)
5 to 30
Temperature Display Range (°C)
3 to 51
Temperature Differential (°C)
+/- 1
Modes Available
On/Off/Comfort/Economy
Operating Voltage (V DC)
3
Cable Size (mm²)
0.5 - 1.5
Power Reserve
1 Year
Battery Low Indicator
LCD Display
Operating Temperature (°C)
0 to +50
Frost Protection
Yes (5°C)
Storage Temperature (°C)
+10 to +60
Output Type
SPDT, Volt-Free; NO, COM & NC
Output Relay Rating
3A
Mounting
Surface Only
Installation
2 Wire
Dimensions
Dimensions (mm)
86 x 86 x 32
Specifications
| Dimensions (mm) | 86 x 86 x 32 |
|---|---|
| Relay Resistive Load Rating (A) | 3 |
| Colour | White |
| Sensor Type | Electronic |
| Materials | ABS |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial with Digital Display |
| Set Temperature Range (°C) | 5 to 30 |
| Temperature Display Range (°C) | 3 to 51 |
| Temperature Differential (°C) | +/- 1 |
| Modes Available | On/Off/Comfort/Economy |
| Operating Voltage (V DC) | 3 |
| Cable Size (mm²) | 0.5 - 1.5 |
| Power Reserve | 1 Year |
| Battery Low Indicator | LCD Display |
| Operating Temperature (°C) | 0 to +50 |
| Frost Protection | Yes (5°C) |
| Storage Temperature (°C) | +10 to +60 |
| Output Type | SPDT, Volt-Free; NO, COM & NC |
| Output Relay Rating | 3A |
| Mounting | Surface Only |
| Installation | 2 Wire |
Dimensions
| Dimensions (mm) | 86 x 86 x 32 |
|---|
Digital Thermostat features
Sangamo CHOICE RSTAT3 Digital Thermostat
