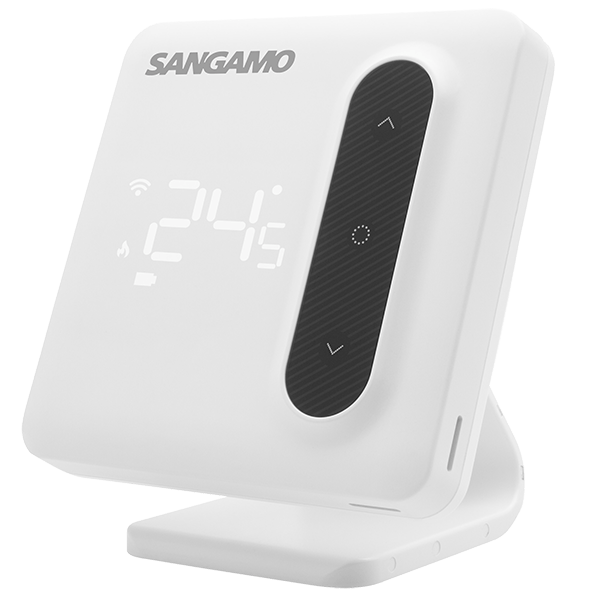

Sangamo CHPWIFI Smart Thermostat & Receiver
About this product
The Sangamo CHPWIFI is a programmable thermostat with RF and WiFi, from Sangamo's range of heating controls, supplied as an RF thermostat with a WiFi receiver. Programming is app based, with 7 day, 5/2 day and 5/1/1 day schedules, and it has Alexa & Google Assistant and ClickSmartPlus app integration.
Key features
- RF thermostat and WiFi receiver, both white
- Wi-Fi controlled thermostat with remote monitoring and scheduling
- 2.4GHz Wi-Fi connection required
- App based programming: 7 day, 5/2 day and 5/1/1 day schedules
- Manual, schedule and boost modes; set temperature range 5 to 35 °C
- Alexa & Google Assistant and ClickSmartPlus app integration
- Optional intelligent function “Optimal Start”, open window detection, frost protection (5°C)
- Clear LED display and manual controls; key lock facility; low battery indication
Frequently asked questions
What is in the box?
A Sangamo RF thermostat, a Sangamo WiFi receiver, a thermostat stand, a receiver mains adapter, a receiver flylead adapter, a receiver mains bulkhead, an installation pack, a QuickStart guide and 2 x AA batteries.
Does it need Wi-Fi?
Yes. A 2.4GHz Wi-Fi connection is required.
Does it work with voice assistants?
It has Alexa & Google Assistant integration.
What programming schedules are there?
7 day, 5/2 day and 5/1/1 day, with app based programming.
How is the thermostat powered?
By 2 x AA batteries, 3 V DC.
-
Download
- CHPWIFI Tech Sheet
Specifications
Dimensions
Specifications
| Colour | White |
|---|---|
| Materials | Polycarbonate |
| Relay Rating | 8A @ 250V AC |
| EE Class | ErP Class IV |
| Set Temperature Range (°C) | 5 to 35 |
| Temperature Display Range (°C) | 0 to 50 |
| Modes Available | Manual, Schedule & Boost |
| Operating Temperature (°C) | 0 to +50 |
| Transmission Frequency (MHz) | 868 |
| Maximum Communication Range (m) | 100 |
| Frost Protection | Yes (5°C) |
| Warranty Years | 3 |
| Thermostat dimensions (mm) | 100 x 100 x 22 |
| Receiver dimensions (mm) | 86 x 86 x 28.5 |
| Thermostat mounting | Wall or Desk Mounted |
| Receiver mounting | Surface |
| Thermostat operating voltage (V DC) | 3 |
| Thermostat battery specification | AA (x2) |
| Thermostat battery low indicator | Yes |
| Thermostat adjustment type | 3 Buttons; Up, Down, ON/OFF |
| Receiver adjustment type | Single Button |
| Thermostat output type | Normally Open or Normally Closed |
| Receiver output type | Selectable: Normally Open & Common, Normally Closed & Common |
| Receiver optimisation | Optimum Start |
| Receiver supply voltage (V AC) | 100 - 240 |
| Receiver frequency (Hz) | 50 |
| Receiver connection type | Flylead or Mains Plug |
| Receiver wireless range - open field (m) | 100 |
| Receiver router transmission frequency (GHz) | 2.4 |
| Receiver IEC protection class | II |
| Programming Type | App Based |
| Programming Schedule | 7 Day, 5/2 Day and 5/1/1 Day |
| Ingress Protection | IP21 |
Dimensions
| Thermostat (mm) | 100 x 100 x 22 |
|---|---|
| Receiver (mm) | 86 x 86 x 28.5 |
