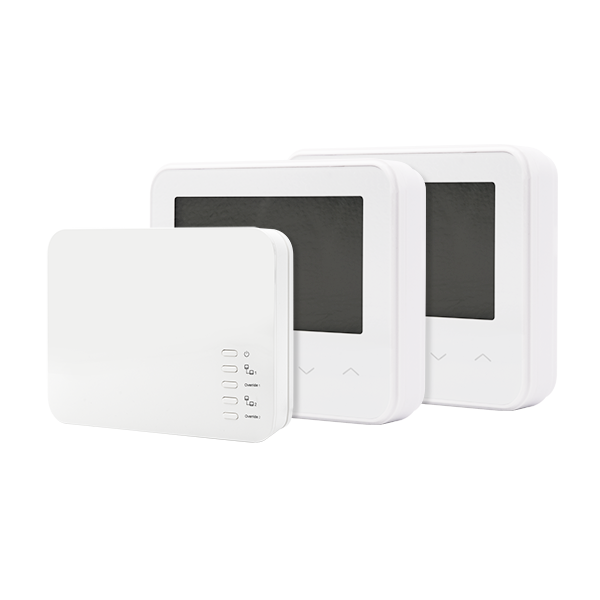

Sangamo CHSTAT3CHK Wireless 3 Channel Digital Heating and Hot Water Thermostat
About this product
The Sangamo CHSTAT3CHK is a wireless 3 channel digital heating and hot water thermostat set in white: a receiver with 3 independent channels and 2 RF programmable thermostats, to control the hot water and 2 heating zones, with Wi-Fi connectivity via the Click Smart+ app.
Key features
- Receiver with 3 independent channels: hot water zone single pole single throw; heating zones 1 and 2 single pole double throw
- 2 RF programmable thermostats: a hot water & heating zone thermostat and a single heating zone thermostat
- Wi-Fi connectivity via the Click Smart+ app; remote monitoring and scheduling; 2.4GHz Wi-Fi connection required
- Each thermostat: 7 days programming schedule; set temperature range 5 to 35 °C; frost protection 5 to 15 °C
- Receiver output relay rating 230V AC @ 5(2)A each, maximum 10A combined on all 3 channels
- Each thermostat: USB-C or battery powered (AA x2); digital display with a flame icon for call for heat
- Receiver and thermostats: transmission frequency 433 MHz; maximum communication range 120 m
Frequently asked questions
What is in the CHSTAT3CHK set?
1 single heating zone thermostat, 1 hot water & heating zone thermostat and 1 receiver.
How many channels does the receiver have?
3 independent channels: the hot water zone is single pole single throw, and heating zones 1 and 2 are single pole double throw.
Does it need Wi-Fi?
A 2.4GHz Wi-Fi connection is required for Wi-Fi connectivity via the Click Smart+ app.
How are the thermostats powered?
Each is USB-C or battery powered, with AA (x2) batteries, at 5 V DC.
What modes does the hot water & heating zone thermostat have?
Manual, schedule & eco for heating, and on/off, schedule & boost for hot water.
-
Download
- CHSTAT3CHK Tech Sheet
Specifications
Dimensions
Specifications
| Colour | White |
|---|---|
| Materials | ABS & PC |
| Transmission Frequency (MHz) | 433 |
| Maximum Communication Range (m) | 120 |
| Operating Temperature (°C) | 0 to +50 |
| Relative Humidity Resistance (%) | 85 |
| Warranty Years | 3 |
| Receiver dimensions (mm) | 130 x 95 x 31 |
| Thermostat dimensions (mm), each thermostat | 125 x 98 x 23.5 (Wall Mounted), 125 x 98 x 34.2 (Free Standing) |
| Receiver mounting | Surface |
| Thermostat mounting, each thermostat | Surface or Free Standing |
| Receiver indication | 6 x Green LEDs |
| Receiver supply voltage (V AC) | 230 |
| Receiver output relay rating | 230V AC @ 5(2)A each. Maximum 10A combined on all 3 channels |
| Receiver output type | 3 Channels; Hot Water Zone – Single Pole Single Throw; Heating Zone 1 – Single Pole Double Throw; Heating Zone 2 - Single Pole Double Throw |
| Receiver adjustment type | 5 Buttons |
| Receiver router transmission frequency (GHz) | 2.4 |
| Receiver router transmission range (m) | 50 |
| Receiver ingress protection | IP20 |
| Thermostat display, each thermostat | Digital Display |
| Thermostat clock, each thermostat | 24 Hour |
| Thermostat adjustment type, each thermostat | Digital Programming with Digital Display or Click Smart + App |
| Thermostat sensor type, each thermostat | NTC 10k Digital Display |
| Thermostat operating voltage (V DC), each thermostat | 5 |
| Thermostat battery specification, each thermostat | AA (x2) |
| Thermostat power source, each thermostat | USB-C or battery powered |
| Thermostat call for heat indication, each thermostat | Flame Icon on Digital Display |
| Thermostat programming schedule, each thermostat | 7 Days |
| Thermostat set temperature range (°C), each thermostat | 5 to 35 |
| Thermostat temperature display range (°C), each thermostat | 0 to 50 |
| Thermostat temperature swing adjustment (°C), each thermostat | 0 to 3 |
| Thermostat temperature accuracy (°C), each thermostat | ±0.5 |
| Thermostat frost protection, each thermostat | Yes ( 5 to 15°C) |
| Thermostat ingress protection, each thermostat | IP30 |
| Hot water & heating zone thermostat zone types | 1 x Heating, 1 x Hot Water |
| Hot water & heating zone thermostat operations (heating zone) | 6 |
| Hot water & heating zone thermostat operations (hot water zone) | 6 |
| Hot water & heating zone thermostat modes | Manual, Schedule & Eco (Heating); On/Off, Schedule & Boost (Hot water) |
| Hot water & heating zone thermostat holiday mode | Eco (Heating only) |
| Hot water & heating zone thermostat pre-programmed schedule | Yes (Heating & Hot Water) |
| Single heating zone thermostat zone types | 1 x Heating |
| Single heating zone thermostat operations (heating zone) | 4 |
| Single heating zone thermostat modes | Manual, Schedule & Eco |
| Single heating zone thermostat holiday mode | Eco |
| Single heating zone thermostat pre-programmed schedule | Yes |
| Supplied | 1 x Single Heating Zone Thermostat; 1 x Hot Water & Heating Zone Thermostat; 1 x Receiver |
Dimensions
| Receiver (mm) | 130 x 95 x 31 |
|---|---|
| Hot water & heating zone thermostat (mm) | 125 x 98 x 23.5 (Wall Mounted), 125 x 98 x 34.2 (Free Standing) |
| Single heating zone thermostat (mm) | 125 x 98 x 23.5 (Wall Mounted), 125 x 98 x 34.2 (Free Standing) |
