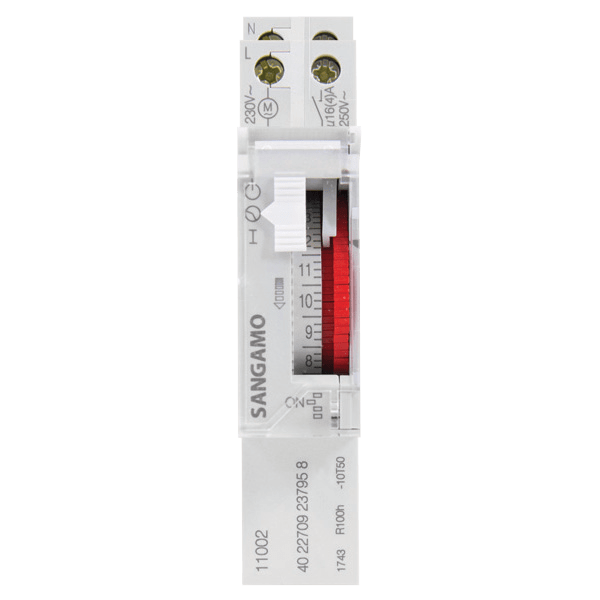

Sangamo 11002 1 Module 24 Hr Timer
£
54
43
(Incl. VAT)
3 Years Warranty
1 Module 24 Hr Timer
About this product
About this product
The Sangamo 11002 is a 1 module analogue 24 hour timer from Sangamo's range of time switches, programmed with 15 minute captive segments on a mechanical dial. It mounts on 35mm DIN rail or a surface and switches a single SPST output rated 16A @ 1.0pf (2.5A @ 0.6pf).
Key features
- 24 hour programme set with 15 minute captive segments (96 operations)
- Manual override switch: permanent off, automatic or permanent on
- Simple to read switching on a mechanical dial with a quartz crystal time base
- 1 SPST output, 230V AC; inductive switch rating 16A @ 1.0pf, 2.5A @ 0.6pf
- Power reserve approx. 100 hours
- 1 module wide: 35mm DIN-rail or surface mounting
- 230 V AC supply, 0.4 W consumption
Frequently asked questions
How fine is the programming on the 11002?
15 minute captive segments over a 24 hour programme, giving 96 operations.
Can the timer be overridden by hand?
Yes. A manual override switch selects permanent off, automatic or permanent on.
How is the 11002 mounted?
On 35mm DIN-rail (DIN EN 60715) as a 1 module device, or on a surface.
What can it switch?
One SPST output with a total switch rating (inductive) of 230V AC, 16A @ 1.0pf or 2.5A @ 0.6pf.
How long does it keep time without power?
It has a power reserve of approx. 100 hours.
-
Download
- 11002 Tech Sheet
£
54
43
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
Mechanical Dial
Relay/Contact Type
SPST
Time Base
Quartz Crystal
Total Switch Rating (Inductive)
230V AC, 16A @ 1.0pf; 2.5A @ 0.6pf
Materials
Self-Extinguishing Thermoplastic
Maximum LED Lamp Load Rating (W)
200_at_230v
Mounting
Surface Mounting or DIN
Contact Material
AgSnO²
Maximum Incandescent, Halogen Lamp
2000
Warranty (Years)
3
Maximum Compact Fluorescent Lamp
200
Available Operations
96 Operations
Minimum Interval (Mins)
15
Supply Voltage (V AC)
230
Minimum Switching power (mW)
1000 (10V/10mA)
Power Consumption (W)
0.4
Cable Size (mm²)
0.5 - 2.5
Power Reserve
100 Hours (Approx.)
Operating Temperature (°C)
-5 to +50
Maximum Fluorescent Lamp (Uncompensated) Load Rating (W)
1000
Maximum Fluorescent Lamp (Series Compensated) Load Rating (W)
750
Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W)
550
Switching Modes
ON, OFF, Permanent On/Off
Dimensions (mm)
90 x 17.5 x 64.5
Module Size
1
Ingress Protection
IP20
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | Mechanical Dial |
| Relay/Contact Type | SPST |
| Time Base | Quartz Crystal |
| Total Switch Rating (Inductive) | 230V AC, 16A @ 1.0pf; 2.5A @ 0.6pf |
| Materials | Self-Extinguishing Thermoplastic |
| Maximum LED Lamp Load Rating (W) | 200_at_230v |
| Mounting | Surface Mounting or DIN |
| Contact Material | AgSnO² |
| Maximum Incandescent, Halogen Lamp | 2000 |
| Warranty (Years) | 3 |
| Maximum Compact Fluorescent Lamp | 200 |
| Available Operations | 96 Operations |
| Minimum Interval (Mins) | 15 |
| Supply Voltage (V AC) | 230 |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Power Consumption (W) | 0.4 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 100 Hours (Approx.) |
| Operating Temperature (°C) | -5 to +50 |
| Maximum Fluorescent Lamp (Uncompensated) Load Rating (W) | 1000 |
| Maximum Fluorescent Lamp (Series Compensated) Load Rating (W) | 750 |
| Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W) | 550 |
| Switching Modes | ON, OFF, Permanent On/Off |
| Dimensions (mm) | 90 x 17.5 x 64.5 |
| Module Size | 1 |
| Ingress Protection | IP20 |
1 Module 24 Hr Timer features
Sangamo 11002 1 Module 24 Hr Timer
