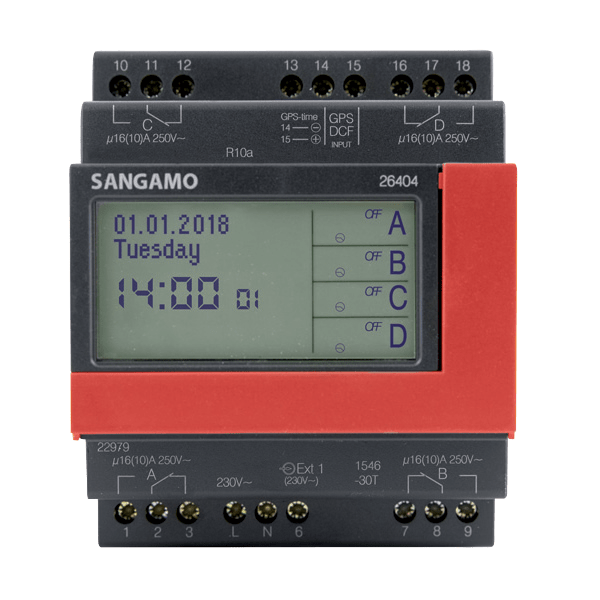

Sangamo 26404 4 Module 4 Channel, 7 Day Timer, 300 Operations

Programming

It is 24 hour and 7 day programmable, with 300 operations, a minimum interval of 1 minute and automatic summer/winter time change; program security is unlimited (E2-PROM). Switching modes are ON, OFF, pulse and cycle: the pulse function runs from 00:01 up to 59.59 mm:ss, and the timer (manual switching) from 0:00:01 up to 9:59:59 h:mm:ss.

It gives multiple applications from one switch. Extra functions are channel key assignment and accepting external inputs, and an optional data key copies settings between time switches.

Outputs

Each of the 4 SPDT outputs is rated 16 A resistive and 6 A inductive per channel, with AgSnO² contacts, a maximum starting current of 50 A and a minimum switching power of 1000 mW (10V/10mA). The total switch rating is 16A @1.0pf.

Installation

It runs on 230 V AC and consumes 0.2-1 W; the power reserve is 10 years (approx.), and the battery type is replaceable CR2032. It takes 0.5 - 2.5 mm² cable.

It is for surface mounting or DIN, on a 35mm DIN-rail (DIN EN 60715), with a module size of 4, and measures 90 x 36 x 63 mm in self-extinguishing thermoplastic. It has an LCD display and a quartz crystal time base, accurate to ≤ ± 0.5 seconds / day (at 20°C). It is rated IP20.

Its operating temperature is -30 to +55 °C.
