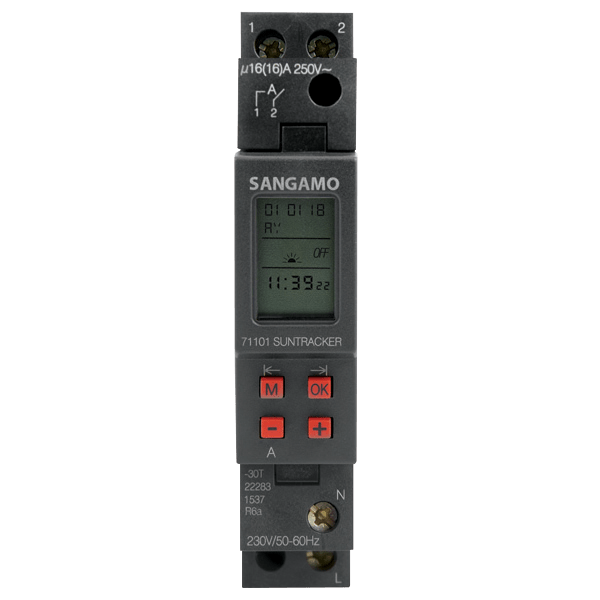

Sangamo 71101 Astro 1 Module 1 Channel, 7 Day, 60 Operations
£
111
76
(Incl. VAT)
3 Years Warranty
Astro 1 Module 1 Channel, 7 Day, 60 Operations
About this product
About this product
The Sangamo 71101 is an Astro 1 Module 1 Channel, 7 Day, 60 Operations. Featuring 1 channel recording and astro programming, it is built for dependable professional installation.
Key Features
- Astro timer
- Simple programming
- Optional data key for copying settings between time switches
- 1 channel recording
- Astro programming
-
Download
- 71101 Tech Sheet
£
111
76
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 17.5 x 60
Number of Outputs
1
Display
LCD Display
Relay/Contact Type
SPST
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
400 @ 230V
Astro Zone
User Defined
Contact Material
AgSnO²
Materials
Self-Extinguishing Thermoplastic
Maximum Incandescent, Halogen Lamp
2000
Maximum Fluorescent Lamp
1000
Warranty (Years)
3
Available Operations
60 Operations
Summer/Winter Time Change
Yes (Automatic)
Compact Fluorescent Lamp Electronic
4 x electronic lamp ballast, power
Program Security
Unlimited (E2-PROM)
Ballast Load Rating
independent
Mercury Discharge Lamp Uncompensated
4 x 125
Cable Size (mm²)
0.5 - 2.5
Mercury Discharge Lamp Parallel
50 (x6) (7 μF)
Power Reserve
6 Years (Approx.)
Compensated Load Rating (W)
250 (x1) (32 μF)
Regulations
400 (x1) (25 μF)
(W)
1 x 400
Maximum LV Halogen or LED with
800
Dimensions
Dimensions (mm)
90 x 17.5 x 60
Specifications
| Dimensions (mm) | 90 x 17.5 x 60 |
|---|---|
| Number of Outputs | 1 |
| Display | LCD Display |
| Relay/Contact Type | SPST |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 400 @ 230V |
| Astro Zone | User Defined |
| Contact Material | AgSnO² |
| Materials | Self-Extinguishing Thermoplastic |
| Maximum Incandescent, Halogen Lamp | 2000 |
| Maximum Fluorescent Lamp | 1000 |
| Warranty (Years) | 3 |
| Available Operations | 60 Operations |
| Summer/Winter Time Change | Yes (Automatic) |
| Compact Fluorescent Lamp Electronic | 4 x electronic lamp ballast, power |
| Program Security | Unlimited (E2-PROM) |
| Ballast Load Rating | independent |
| Mercury Discharge Lamp Uncompensated | 4 x 125 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Mercury Discharge Lamp Parallel | 50 (x6) (7 μF) |
| Power Reserve | 6 Years (Approx.) |
| Compensated Load Rating (W) | 250 (x1) (32 μF) |
| Regulations | 400 (x1) (25 μF) |
| (W) | 1 x 400 |
| Maximum LV Halogen or LED with | 800 |
Dimensions
| Dimensions (mm) | 90 x 17.5 x 60 |
|---|
