Sangamo 71111 1 Module 1 Channel, 7 Day, 46 Operations
£
87
90
(Incl. VAT)
1 Module 1 Channel, 7 Day, 46 Operations
About this product
About this product

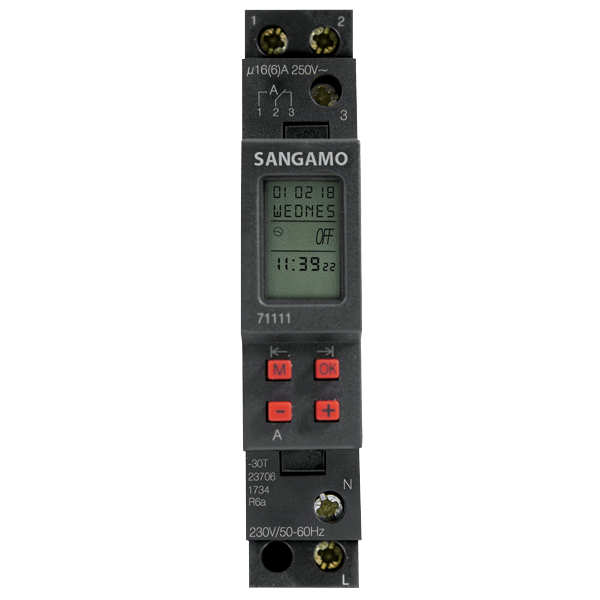

The Sangamo 71111 is a standard 1 module, 1 channel, 7 day digital timer with 46 operations, an LCD display and a volt-free SPDT output. It fits surface mounting or a 35mm DIN-rail.
Key features
- 1 module, 1 channel; 24 hour and 7 day programmable, 46 operations
- Switching modes: ON, OFF, pulse; minimum interval 1 minute
- Automatic summer/winter time change
- Output: SPDT, volt-free; total switch rating 16A @1.0pf
- LCD display (backlit); quartz crystal accuracy ≤ ± 0.5 seconds / day at 20°C
- Power reserve 10 years (approx.); replaceable CR2032 battery
- Surface mounting or 35mm DIN-rail (DIN EN 60715)
- Simple programming; program security unlimited (E2-PROM)
Frequently asked questions
How many operations does the 71111 store?
46 operations, 24 hour and 7 day programmable.
Can it be DIN-rail mounted?
Yes: it is surface mounting or DIN, on a 35mm DIN-rail (DIN EN 60715), module size 1.
What kind of output does it have?
One SPDT output, volt-free, with a total switch rating of 16A @1.0pf.
Does it change for summer and winter time?
Yes, automatically.
What battery does it use?
A replaceable CR2032. The power reserve is 10 years (approx.).
-
Download
- 71111 Tech Sheet
£
87
90
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 17.8 x 63
Number of Outputs
1
Display
LCD Display
Relay/Contact Type
SPDT
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
50 @ 230V
Materials
Self-Extinguishing Thermoplastic
Contact Material
AgSnO²
Mounting
Surface Mounting or DIN
Module Size
1
Maximum Starting Current (A)
30
Available Operations
46 Operations
Minimum Switching power (mW)
300 (10V/10mA)
Switching Modes
ON, OFF, Pulse
Minimum Interval (Mins)
1
Summer/Winter Time Change
Yes (Automatic)
Program Security
Unlimited (E2-PROM)
Pulse length - Timer (man. switching)
0:00:01 up to 9:59:59 h:mm:ss
Supply Voltage (V AC)
230
Power Consumption (W)
0.2-1
Cable Size (mm²)
0.5 - 2.5
Power Reserve
10 Years (Approx.)
Battery Type
Replaceable CR2032
IEC Protection Class
Class II When Installed According to Regulations
Operating Temperature (°C)
-30 to +55
Maximum Incandescent, Halogen Lamp Load Rating (W)
400
Maximum Compact Fluorescent Lamp Load Rating (W)
50
Maximum Fluorescent Lamp with Conventional Ballast Load Rating (W)
100
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Programming Schedule
24 Hour, and 7 Day Programmable
Pulse length - Pulse function (switching time)
00:01 up to 59.59 mm:ss
Ingress Protection
IP20
Output Type
SPDT, Volt-Free
Total Switch Rating
16A @1.0pf
Accessories
143602: Module Enclosure; 25195: Programming Interface; 25196: Programming Interface with bluetooth
Dimensions
Dimensions (mm)
90 x 17.8 x 63
Specifications
| Dimensions (mm) | 90 x 17.8 x 63 |
|---|---|
| Number of Outputs | 1 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 50 @ 230V |
| Materials | Self-Extinguishing Thermoplastic |
| Contact Material | AgSnO² |
| Mounting | Surface Mounting or DIN |
| Module Size | 1 |
| Maximum Starting Current (A) | 30 |
| Available Operations | 46 Operations |
| Minimum Switching power (mW) | 300 (10V/10mA) |
| Switching Modes | ON, OFF, Pulse |
| Minimum Interval (Mins) | 1 |
| Summer/Winter Time Change | Yes (Automatic) |
| Program Security | Unlimited (E2-PROM) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to Regulations |
| Operating Temperature (°C) | -30 to +55 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 400 |
| Maximum Compact Fluorescent Lamp Load Rating (W) | 50 |
| Maximum Fluorescent Lamp with Conventional Ballast Load Rating (W) | 100 |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Programming Schedule | 24 Hour, and 7 Day Programmable |
| Pulse length - Pulse function (switching time) | 00:01 up to 59.59 mm:ss |
| Ingress Protection | IP20 |
| Output Type | SPDT, Volt-Free |
| Total Switch Rating | 16A @1.0pf |
| Accessories | 143602: Module Enclosure; 25195: Programming Interface; 25196: Programming Interface with bluetooth |
Dimensions
| Dimensions (mm) | 90 x 17.8 x 63 |
|---|
