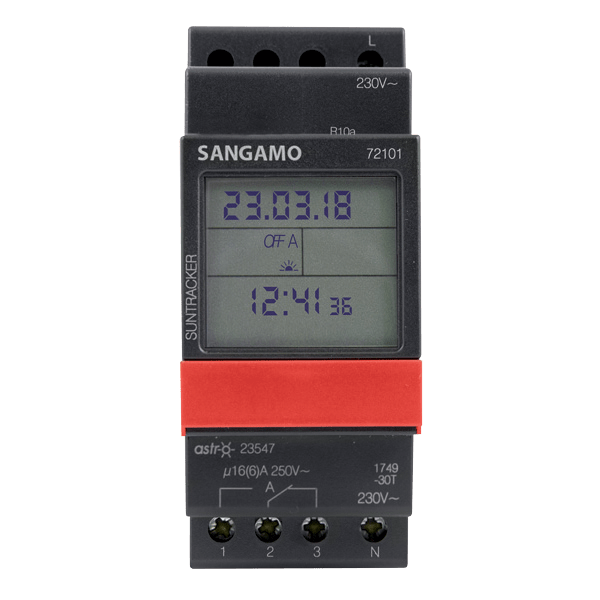

The Sangamo 72101 is a 1-channel astro 7 day timer, 2 modules wide, with Astro ON/OFF, Night ON/OFF and Extra ON/OFF switching modes. It has a single SPDT volt-free output, a total switch rating of 16A @1.0pf and 60 operations.
Key features
- 1 SPDT volt-free output, total switch rating 16A @1.0pf
- Astro ON/OFF, Night ON/OFF and Extra ON/OFF modes, with a user-defined astro zone
- 60 operations, 1 minute minimum interval
- Automatic summer/winter time change
- LED lamp loads up to 400 W @ 230V; incandescent and halogen lamps up to 2000 W
- Power reserve approx. 10 years; unlimited program security (E2-PROM)
- Surface or 35mm DIN-rail mounting, 2 modules wide
- Backlit LCD display, with an optional data key for copying settings between time switches
Frequently asked questions
How many channels does the Sangamo 72101 have?
One. It has a single SPDT volt-free output.
What switching modes does the 72101 have?
Astro ON/OFF, Night ON/OFF and Extra ON/OFF, with a user-defined astro zone.
Does the 72101 change for summer and winter time?
Yes. Summer/winter time change is automatic.
How many operations can be programmed?
60 operations, with a minimum interval of 1 minute.
How is the 72101 mounted?
On a surface or on 35mm DIN-rail (DIN EN 60715). It is 2 modules wide.
What LED load can the 72101 switch?
Up to 400 W of LED lamps @ 230V. The total switch rating is 16A @1.0pf.
-
Download
- 72101 Tech Sheet
£
99
70
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 35.8 x 63
Number of Outputs
1
Display
LCD Display
Relay/Contact Type
SPDT
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
400 @ 230V
Astro Zone
User Defined
Contact Material
AgSnO²
Materials
Self-Extinguishing Thermoplastic
Maximum Incandescent, Halogen Lamp Load Rating (W)
2000
Maximum Starting Current (A)
50
Module Size
2
Maximum Fluorescent Lamp (Uncompensated) Load Rating (W)
1000
Maximum Fluorescent Lamp (Series Compensated) Load Rating (W)
1000
Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W)
550
Maximum Fluorescent Lamp (Double Switch) Load Rating (W)
1000
Schedule
24 Hour
Switching Modes
Astro ON/OFF, Night ON/OFF, Extra ON/OFF
Minimum Interval (Mins)
1
Maximum Compact Fluorescent Lamp Conventional Ballast Load Rating (W)
1000
Program Security
Unlimited (E2-PROM)
Compact Fluorescent Lamp Electronic Ballast Load Rating
4 x electronic lamp ballast, power independent
Supply Voltage (V AC)
230
Mercury Discharge Lamp Uncompensated Load Rating (W)
4 x 125, 2 x 250, 1 x 400, 1 x 700
Power Reserve
10 Years (Approx.)
Mercury Discharge Lamp Parallel Compensated Load Rating (W)
50 (x6) (7 μF), 125 (x4) (10 μF), 250 (x2) (18 μF), 400 (x1) (25 μF), 700 (x1) (40 μF)
IEC Protection Class
Class II When Installed According to Regulations
Sodium Discharge Lamp Parallel Compensated Load Rating (W)
150 (x2) (20 μF), 250 (x1) (32 μF), 400 (x1) (45 μF)
Sodium Discharge Lamp uncompensated (W)
2 x 250, 1 x 400
Operating Temperature (°C)
-30 to +50
Maximum LV Halogen or LED with Electromechanical Ballast Load Rating (W)
800
Maximum LV Halogen or LED with Electronic Ballast Load Rating (W)
400
Minimum Switching power (mW)
1000 (10V/10mA)
Output Type
SPDT, Volt-Free
Total Switch Rating
16A @1.0pf
Available Operations
60 Operations
Summer/Winter Time Change
Yes (Automatic)
Power Consumption (W)
0.8-1.8
Cable Size (mm²)
0.5 - 2.5
Mounting
Surface Mounting or DIN
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Ingress Protection
IP20
Dimensions
Dimensions (mm)
90 x 35.8 x 63
Specifications
| Dimensions (mm) | 90 x 35.8 x 63 |
|---|---|
| Number of Outputs | 1 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 400 @ 230V |
| Astro Zone | User Defined |
| Contact Material | AgSnO² |
| Materials | Self-Extinguishing Thermoplastic |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 2000 |
| Maximum Starting Current (A) | 50 |
| Module Size | 2 |
| Maximum Fluorescent Lamp (Uncompensated) Load Rating (W) | 1000 |
| Maximum Fluorescent Lamp (Series Compensated) Load Rating (W) | 1000 |
| Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W) | 550 |
| Maximum Fluorescent Lamp (Double Switch) Load Rating (W) | 1000 |
| Schedule | 24 Hour |
| Switching Modes | Astro ON/OFF, Night ON/OFF, Extra ON/OFF |
| Minimum Interval (Mins) | 1 |
| Maximum Compact Fluorescent Lamp Conventional Ballast Load Rating (W) | 1000 |
| Program Security | Unlimited (E2-PROM) |
| Compact Fluorescent Lamp Electronic Ballast Load Rating | 4 x electronic lamp ballast, power independent |
| Supply Voltage (V AC) | 230 |
| Mercury Discharge Lamp Uncompensated Load Rating (W) | 4 x 125, 2 x 250, 1 x 400, 1 x 700 |
| Power Reserve | 10 Years (Approx.) |
| Mercury Discharge Lamp Parallel Compensated Load Rating (W) | 50 (x6) (7 μF), 125 (x4) (10 μF), 250 (x2) (18 μF), 400 (x1) (25 μF), 700 (x1) (40 μF) |
| IEC Protection Class | Class II When Installed According to Regulations |
| Sodium Discharge Lamp Parallel Compensated Load Rating (W) | 150 (x2) (20 μF), 250 (x1) (32 μF), 400 (x1) (45 μF) |
| Sodium Discharge Lamp uncompensated (W) | 2 x 250, 1 x 400 |
| Operating Temperature (°C) | -30 to +50 |
| Maximum LV Halogen or LED with Electromechanical Ballast Load Rating (W) | 800 |
| Maximum LV Halogen or LED with Electronic Ballast Load Rating (W) | 400 |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Output Type | SPDT, Volt-Free |
| Total Switch Rating | 16A @1.0pf |
| Available Operations | 60 Operations |
| Summer/Winter Time Change | Yes (Automatic) |
| Power Consumption (W) | 0.8-1.8 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Mounting | Surface Mounting or DIN |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Ingress Protection | IP20 |
