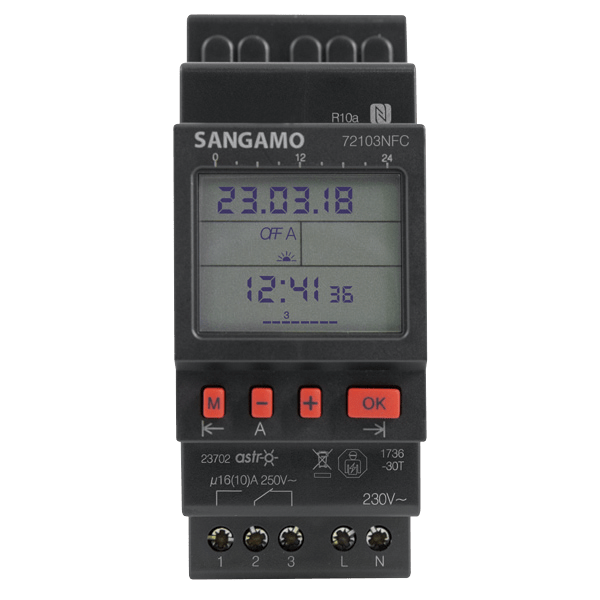

Sangamo 72103NFC Astro NFC 2 Module 1 Channel, 7 Day Timer, 56 Operations
£
105
66
(Incl. VAT)
Astro NFC 2 Module 1 Channel, 7 Day Timer, 56 Operations
About this product
About this product
The Sangamo 72103NFC is an astro 2 module, 1 channel 7 day timer with near field communication (NFC). It works with Android NFC phones for programming, holds 56 operations on a 24 hour and 7 day programme, and has a user defined astro zone with an astro offset switching time of (+/-) 90 minutes.
Key features
- Astro timer: astro zone user defined; astro offset switching time (+/-) 90 mins
- Works with Android NFC phones for programming; security by PIN-code
- 1 channel: SPDT, volt-free; total switch rating 16A @1.0pf
- Switching modes Astro ON/OFF, Night ON/OFF and EXTRA ON/OFF; holiday mode
- 24 hour and 7 day programmable; 56 operations
- Power reserve 10 years (approx.); replaceable CR2032 battery
- 2 module; surface mounting or 35mm DIN-rail (DIN EN 60715)
Frequently asked questions
How is the 72103NFC programmed?
It works with Android NFC phones for programming, with security by PIN-code.
Is it an astro timer?
Yes: its astro zone is user defined, with an astro offset switching time of (+/-) 90 minutes.
What switching modes does it have?
Astro ON/OFF, Night ON/OFF and EXTRA ON/OFF, with a holiday mode.
How many operations does it hold?
56 operations, on a 24 hour and 7 day programme.
What is its power reserve?
10 years (approx.). The battery type is replaceable CR2032.
-
Download
- 72103NFC Tech Sheet
£
105
66
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 36 x 63
Number of Outputs
1
Display
LCD Display
Relay/Contact Type
SPDT
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
200 @ 230V
Astro Zone
User Defined
Contact Material
AgSnO²
Astro Offset Switching Time (Mins)
(+/-) 90
Maximum Inductive Current Rating (A)
10 @ 0.6pf
Mounting
Surface Mounting or DIN
Module Size
2
Schedule
24 Hour, and 7 Day Programmable
Switching Modes
Astro ON/OFF, Night ON/OFF, EXTRA ON/OFF
Minimum Interval (Mins)
1
Minimum Switching power (mW)
1000 (10V/10mA)
Summer/Winter Time Change
Yes (Automatic)
Program Security
Unlimited (E2-PROM)
Supply Voltage (V AC)
230
Power Consumption (W)
0.2-1
Cable Size (mm²)
0.5 - 2.5
Power Reserve
10 Years (Approx.)
Battery Type
Replaceable CR2032
IEC Protection Class
Class II When Installed According to Regulations
Operating Temperature (°C)
-30 to +55
Maximum Incandescent, Halogen Lamp Load Rating (W)
2000
Maximum Compact Fluorescent Lamp Load Rating (W)
200
Maximum Fluorescent Lamp (Uncompensated) Load Rating (W)
1000
Maximum Fluorescent Lamp (Series Compensated) Load Rating (W)
1000
Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W)
550
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Available Operations
56 operations
Materials
Self-Extinguishing Thermoplastic
Ingress Protection
IP20
Output Type
SPDT, Volt-Free
Total Switch Rating
16A @1.0pf
Features
Volt-Free 16A Changeover Contact; 56 Memory Locations; Astro Programming; Works with Android NFC Phones for Programming; Battery Reserve: 10 years; Security by PIN-Code
Accessories
143602: Module Enclosure
Holiday Mode
Yes
Dimensions
Dimensions (mm)
90 x 36 x 63
Specifications
| Dimensions (mm) | 90 x 36 x 63 |
|---|---|
| Number of Outputs | 1 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 200 @ 230V |
| Astro Zone | User Defined |
| Contact Material | AgSnO² |
| Astro Offset Switching Time (Mins) | (+/-) 90 |
| Maximum Inductive Current Rating (A) | 10 @ 0.6pf |
| Mounting | Surface Mounting or DIN |
| Module Size | 2 |
| Schedule | 24 Hour, and 7 Day Programmable |
| Switching Modes | Astro ON/OFF, Night ON/OFF, EXTRA ON/OFF |
| Minimum Interval (Mins) | 1 |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Summer/Winter Time Change | Yes (Automatic) |
| Program Security | Unlimited (E2-PROM) |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to Regulations |
| Operating Temperature (°C) | -30 to +55 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 2000 |
| Maximum Compact Fluorescent Lamp Load Rating (W) | 200 |
| Maximum Fluorescent Lamp (Uncompensated) Load Rating (W) | 1000 |
| Maximum Fluorescent Lamp (Series Compensated) Load Rating (W) | 1000 |
| Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W) | 550 |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Available Operations | 56 operations |
| Materials | Self-Extinguishing Thermoplastic |
| Ingress Protection | IP20 |
| Output Type | SPDT, Volt-Free |
| Total Switch Rating | 16A @1.0pf |
| Features | Volt-Free 16A Changeover Contact; 56 Memory Locations; Astro Programming; Works with Android NFC Phones for Programming; Battery Reserve: 10 years; Security by PIN-Code |
| Accessories | 143602: Module Enclosure |
| Holiday Mode | Yes |
Dimensions
| Dimensions (mm) | 90 x 36 x 63 |
|---|
Astro NFC 2 Module 1 Channel, 7 Day Timer, 56 Operations features
