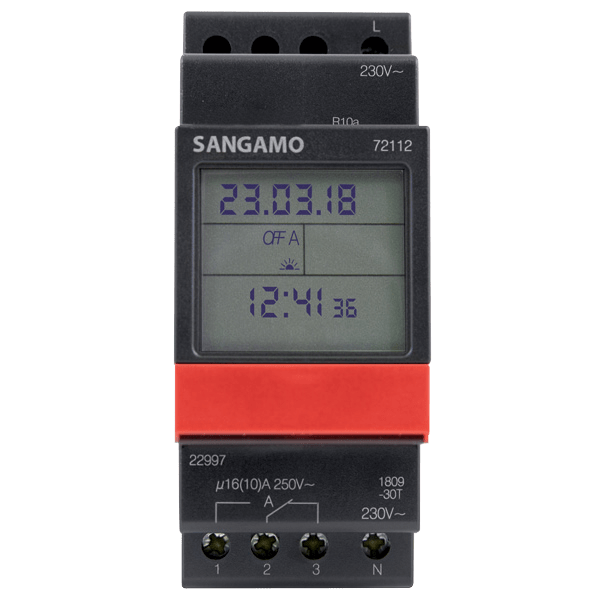

Sangamo 72112 2 Module, 1 Channel, 7 Day, 46 Operations
£
91
61
(Incl. VAT)
2 Module, 1 Channel, 7 Day, 46 Operations
About this product
About this product
The Sangamo 72112 is a standard 2 module, 1 channel 7 day timer from Sangamo's range of time switches. It has a single SPDT volt-free output and holds 46 operations on a 24 hour and 7 day programme.
Key features
- 1 SPDT volt-free output; total switch rating 16A @1.0pf
- 24 hour and 7 day programmable; 46 operations; 1 minute minimum interval
- Switching modes ON, OFF, Pulse
- Simple programming; optional data key for copying settings between time switches
- Automatic summer/winter time change
- Power reserve 10 years (approx.), replaceable CR2032
- 2 module; surface mounting or 35mm DIN-rail
Frequently asked questions
Is the 72112 a 1 or 2 channel timer?
1 channel: it has a single SPDT volt-free output.
What programme does it run?
24 hour and 7 day programmable, with 46 operations and a 1 minute minimum interval.
Does it change for summer and winter time?
Yes, automatically.
Is there a way to copy settings?
Yes: an optional data key copies settings between time switches.
What display does it have?
An LCD display.
-
Download
- 72112 Tech Sheet
£
91
61
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 36 x 63
Number of Outputs
1
Display
LCD Display
Relay/Contact Type
SPDT
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
300 @ 230V
Materials
Self-Extinguishing Thermoplastic
Contact Material
AgSnO²
Mounting
Surface Mounting or DIN
Module Size
2
Maximum Starting Current (A)
30
Available Operations
46 Operations
Minimum Switching power (mW)
500 (10V/10mA)
Switching Modes
ON, OFF, Pulse
Minimum Interval (Mins)
1
Summer/Winter Time Change
Yes (Automatic)
Program Security
Unlimited (E2-PROM)
Pulse length - Timer (man. switching)
0:00:01 up to 9:59:59 h:mm:ss
Supply Voltage (V AC)
230
Power Consumption (W)
0.2-1
Cable Size (mm²)
0.5 - 2.5
Power Reserve
10 Years (Approx.)
Battery Type
Replaceable CR2032
IEC Protection Class
Class II When Installed According to Regulations
Operating Temperature (°C)
-30 to +55
Maximum Incandescent, Halogen Lamp Load Rating (W)
1000
Maximum Compact Fluorescent Lamp Load Rating (W)
300
Maximum Fluorescent Lamp with Conventional Ballast Load Rating (W)
400
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Programming Schedule
24 Hour, and 7 Day Programmable
Pulse length - Pulse function (switching time)
00:01 up to 59.59 mm:ss
Ingress Protection
IP20
Output Type
SPDT, Volt-Free
Total Switch Rating
16A @1.0pf
Accessories
143602: Module Enclosure; 25195: Easy Vue Hub Programming Interface; 25196: Easy Vue Hub Programming Interface with Bluetooth; 25193: Programming Interface
Dimensions
Dimensions (mm)
90 x 36 x 63
Specifications
| Dimensions (mm) | 90 x 36 x 63 |
|---|---|
| Number of Outputs | 1 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 300 @ 230V |
| Materials | Self-Extinguishing Thermoplastic |
| Contact Material | AgSnO² |
| Mounting | Surface Mounting or DIN |
| Module Size | 2 |
| Maximum Starting Current (A) | 30 |
| Available Operations | 46 Operations |
| Minimum Switching power (mW) | 500 (10V/10mA) |
| Switching Modes | ON, OFF, Pulse |
| Minimum Interval (Mins) | 1 |
| Summer/Winter Time Change | Yes (Automatic) |
| Program Security | Unlimited (E2-PROM) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to Regulations |
| Operating Temperature (°C) | -30 to +55 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 1000 |
| Maximum Compact Fluorescent Lamp Load Rating (W) | 300 |
| Maximum Fluorescent Lamp with Conventional Ballast Load Rating (W) | 400 |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Programming Schedule | 24 Hour, and 7 Day Programmable |
| Pulse length - Pulse function (switching time) | 00:01 up to 59.59 mm:ss |
| Ingress Protection | IP20 |
| Output Type | SPDT, Volt-Free |
| Total Switch Rating | 16A @1.0pf |
| Accessories | 143602: Module Enclosure; 25195: Easy Vue Hub Programming Interface; 25196: Easy Vue Hub Programming Interface with Bluetooth; 25193: Programming Interface |
Dimensions
| Dimensions (mm) | 90 x 36 x 63 |
|---|
