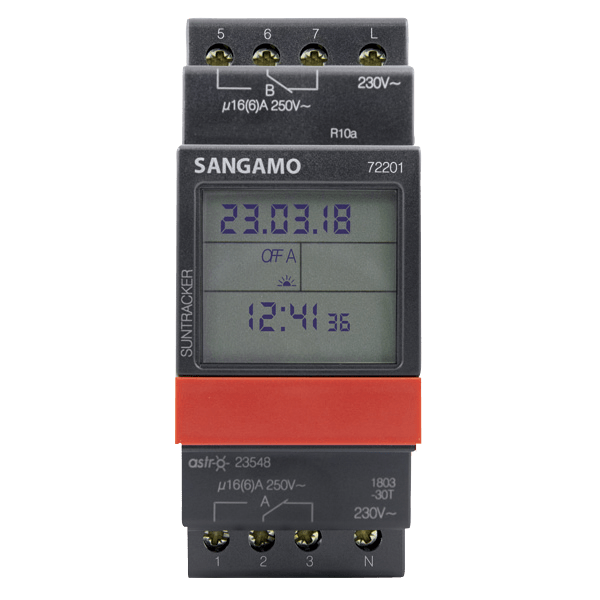

Sangamo 72201 Astro 2 Module 2 Channel, 7 Day, 60 Operations
About this product
The Sangamo 72201 is an Astro 2 Module 2 Channel, 7 Day, 60 Operations. Featuring 2 channel recording and astro programming, it is built for dependable professional installation.
Key Features
- Astro timer
- Simple programming
- Optional data key for copying settings between time switches
- 2 channel recording
- Astro programming
In Detail
An astro time switch tracks sunrise and sunset for its geographic zone, giving true dusk-to-dawn control of security, outdoor and amenity lighting without a separate photocell. Set the zone and it adjusts automatically through the year.
Ideal as an outdoor light timer for signage, car parks, forecourts and communal areas, it keeps lighting on only when needed — cutting energy use, with robust construction and simple programming.
The Sangamo 72201 is a practical choice wherever a reliable outdoor light timer is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Sangamo |
| Product code | 72201 |
| Dimensions (mm) | 90 x 35.8 x 63 |
| Number of Outputs | 2 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 400 @ 230V |
| Astro Zone | User Defined |
| Contact Material | AgSnO² |
| Materials | Self-Extinguishing Thermoplastic |
| Maximum Incandescent, Halogen Lamp | 2000 |
| Maximum Starting Current (A) | 50 |
| Module Size | 2 |
| Maximum Fluorescent Lamp | 1000 |
| Schedule | 24 Hour |
| Switching Modes | Astro ON/OFF, Night ON/OFF, Extra ON/ |
| OFF | Switch) Load Rating (W) |
| Minimum Interval (Mins) | 1 |
| Maximum Compact Fluorescent Lamp | 1000 |
| Program Security | Unlimited (E2-PROM) |
| Compact Fluorescent Lamp Electronic | 4 x electronic lamp ballast, power |
| Ballast Load Rating | independent |
| Supply Voltage (V AC) | 230 |
| Load Rating (W) | 2 x 250 |
| Power Reserve | 10 Years (Approx.) |
| Mercury Discharge Lamp Parallel | 50 (x6) (7 μF) |
| IEC Protection Class | Class II When Installed According to |
| Compensated Load Rating (W) | 125 (x4) (10 μF) |
| Regulations | 250 (x2) (18 μF) |
| Sodium Discharge Lamp uncompensated | 2 x 250 |
| Operating Temperature (°C) | -30 to +50 |
| (W) | 1 x 400 |
| Maximum LV Halogen or LED with | 400 |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Weight | 0.18 kg |
| GTIN | 4022709235480 |
| Commodity Code | 9107000090 |
