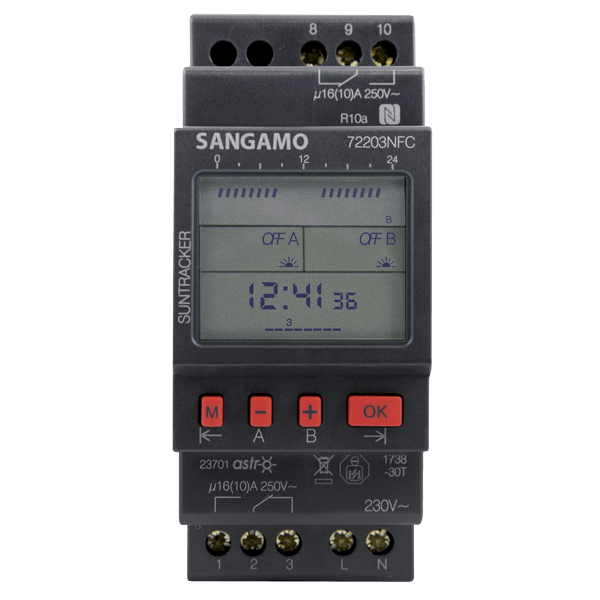

Sangamo 72203NFC Astro NFC 2 Module 2 Channel, 7 Day Timer, 56 Operations
About this product
The Sangamo 72203NFC is an Astro NFC 2 Module 2 Channel, 7 Day Timer, 56 Operations. Featuring 2 channel recording and astro programming, it is built for dependable professional installation.
Key Features
- Astro timer
- Simple programming
- Works with Android NFC phones for programming
- 2 channel recording
- Astro programming
In Detail
An astro time switch tracks sunrise and sunset for its geographic zone, giving true dusk-to-dawn control of security, outdoor and amenity lighting without a separate photocell. Set the zone and it adjusts automatically through the year.
Ideal as an outdoor light timer for signage, car parks, forecourts and communal areas, it keeps lighting on only when needed — cutting energy use, with robust construction and simple programming.
The Sangamo 72203NFC is a practical choice wherever a reliable outdoor light timer is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Sangamo |
| Product code | 72203NFC |
| Dimensions (mm) | 90 x 36 x 63 |
| Number of Outputs | 2 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 200 @ 230V |
| Astro Zone | User Defined |
| Contact Material | AgSnO² |
| Astro Offset Switching Time (Mins) | (+/-) 90 |
| Maximum Inductive Current Rating (A) | 10 @ 0.6pf |
| Mounting | Surface Mounting or DIN |
| Maximum Incandescent, Halogen Lamp | 2000 |
| Module Size | 2 |
| Maximum Compact Fluorescent Lamp | 200 |
| Maximum Fluorescent Lamp | 1000 |
| Schedule | 24 Hour, and 7 Day Programmable |
| Switching Modes | Astro ON/OFF, Night ON/OFF, EXTRA |
| ON/OFF | Compensated) Load Rating (W) |
| Minimum Interval (Mins) | 1 |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Summer/Winter Time Change | Yes (Automatic) |
| Program Security | Unlimited (E2-PROM) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to |
| Operating Temperature (°C) | -30 to +55 |
| Volt-Free 16A Changeover Contact | 143602: Module Enclosure |
| BACKLITDISPLAY | 200W |
| Weight | 0.18 kg |
| GTIN | 4022709237019 |
| Commodity Code | 9107000090 |
