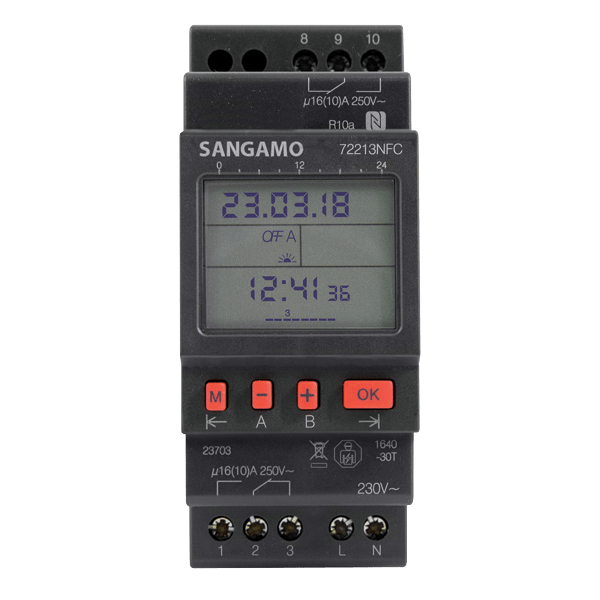

Sangamo 72213NFC NFC 2 Module 2 Channel, 7 Day Timer, 56 Operations
£
109
92
(Incl. VAT)
NFC 2 Module 2 Channel, 7 Day Timer, 56 Operations
About this product
About this product
The Sangamo 72213NFC is a 2 module, 2 channel 7 day timer with near field communication (NFC), from Sangamo's range of time switches. It works with Android NFC phones for programming, holds 56 operations and has 2 SPDT volt-free outputs.
Key features
- 2 channel SPDT volt-free outputs, total switch rating 16A @1.0pf
- Works with Android NFC phones for programming
- 24 hour and 7 day programmable, 56 operations, 1 minute minimum interval
- Switching modes ON, OFF, Pulse, Extra, Permanent; holiday mode
- Automatic summer/winter time change
- Power reserve approx. 10 years from a replaceable CR2032
- 2 module, surface or 35mm DIN-rail mounting
Frequently asked questions
How is the 72213NFC programmed?
It works with Android NFC phones for programming.
How many operations does it hold?
56 operations, on a 24 hour and 7 day programme.
What are its outputs?
2 channel SPDT volt-free, with a total switch rating of 16A @1.0pf.
What is its power reserve?
Approx. 10 years, from a replaceable CR2032 battery.
Does it change for summer and winter time?
Yes, automatically.
-
Download
- 72213NFC Tech Sheet
£
109
92
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 36 x 63
Number of Outputs
2
Display
LCD Display
Relay/Contact Type
SPDT
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
200 @ 230V
Materials
Self-Extinguishing Thermoplastic
Contact Material
AgSnO²
Mounting
Surface Mounting or DIN
Maximum Inductive Current Rating (A)
10 @ 0.6pf
Module Size
2
Schedule
24 Hour, and 7 Day Programmable
Switching Modes
ON, OFF, Pulse, Extra, Permanent
Summer/Winter Time Change
Yes (Automatic)
Holiday Mode
Yes
Program Security
Unlimited (E2-PROM)
Minimum Switching power (mW)
1000 (10V/10mA)
Pulse length - Timer (man. switching)
0:00:01 up to 9:59:59 h:mm:ss
Supply Voltage (V AC)
230
Power Consumption (W)
0.2-1
Cable Size (mm²)
0.5 - 2.5
Power Reserve
10 Years (Approx.)
Battery Type
Replaceable CR2032
IEC Protection Class
Class II When Installed According to Regulations
Operating Temperature (°C)
-30 to +55
Maximum Incandescent, Halogen Lamp Load Rating (W)
2000
Maximum Compact Fluorescent Lamp Load Rating (W)
200
Maximum Fluorescent Lamp (Uncompensated) Load Rating (W)
1000
Maximum Fluorescent Lamp (Series Compensated) Load Rating (W)
1000
Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W)
550
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Available Operations
56 operations
Minimum Interval (Mins)
1
Pulse length - Pulse function (switching time)
00:01 up to 59.59 mm:ss
Ingress Protection
IP20
Output Type
2 Channel, SPDT, Volt-Free
Total Switch Rating
16A @1.0pf
Features
Volt-Free 16A Changeover Contact; 56 Memory Locations; Module Timer; Simple Programming; Works with Android NFC Phones for Programming; Battery Reserve: 10 Years
Accessories
143602: Module Enclosure
Dimensions
Dimensions (mm)
90 x 36 x 63
Specifications
| Dimensions (mm) | 90 x 36 x 63 |
|---|---|
| Number of Outputs | 2 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 200 @ 230V |
| Materials | Self-Extinguishing Thermoplastic |
| Contact Material | AgSnO² |
| Mounting | Surface Mounting or DIN |
| Maximum Inductive Current Rating (A) | 10 @ 0.6pf |
| Module Size | 2 |
| Schedule | 24 Hour, and 7 Day Programmable |
| Switching Modes | ON, OFF, Pulse, Extra, Permanent |
| Summer/Winter Time Change | Yes (Automatic) |
| Holiday Mode | Yes |
| Program Security | Unlimited (E2-PROM) |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to Regulations |
| Operating Temperature (°C) | -30 to +55 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 2000 |
| Maximum Compact Fluorescent Lamp Load Rating (W) | 200 |
| Maximum Fluorescent Lamp (Uncompensated) Load Rating (W) | 1000 |
| Maximum Fluorescent Lamp (Series Compensated) Load Rating (W) | 1000 |
| Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W) | 550 |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Available Operations | 56 operations |
| Minimum Interval (Mins) | 1 |
| Pulse length - Pulse function (switching time) | 00:01 up to 59.59 mm:ss |
| Ingress Protection | IP20 |
| Output Type | 2 Channel, SPDT, Volt-Free |
| Total Switch Rating | 16A @1.0pf |
| Features | Volt-Free 16A Changeover Contact; 56 Memory Locations; Module Timer; Simple Programming; Works with Android NFC Phones for Programming; Battery Reserve: 10 Years |
| Accessories | 143602: Module Enclosure |
Dimensions
| Dimensions (mm) | 90 x 36 x 63 |
|---|
