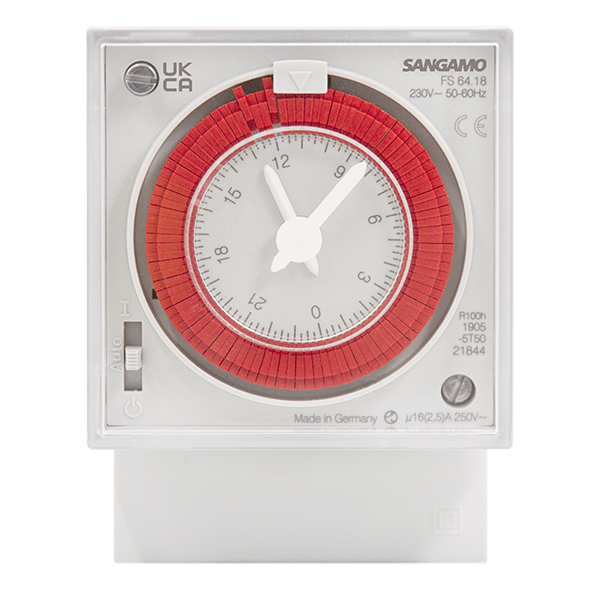

Sangamo PA16621 Panel 24 Hr Timer (with Battery)
£
61
04
(Incl. VAT)
Panel 24 Hr Timer (with Battery)
About this product
About this product
The Sangamo PA16621 is a Panel 24 Hr Timer (with Battery).
Key Features
- Programming by 15 min captive segments
- Temporary Manual Override
- Contact status display
- Genuine ESP panel timer battery supplied by WME
- Backed by WME UK stock and trade support
-
Download
- PA16621 Tech Sheet
£
61
04
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
72 x 94.5 x 53
Number of Outputs
1
Panel Dimensions (mm)
72 x 72
Relay/Contact Type
SPDT
Display
Mechanical Dial
Relay Resistive Load Rating (A)
16
Timing Accuracy
1 Second / 24 Hour
Relay Inductive Load Rating (A)
3
Time Base
Quartz Crystal
Total Switch Rating (Resistive)
250V AC, 16A
Materials
Self-Extinguishing Thermoplastic
Squirrel-Cage Motor Maximum Load
350 @ 250V
Voltage Free Inductive Load (cos = 0.6)
3A 250V
Schedule
24 Hour
Available Operations
72 Operations
Switching Modes
ON and OFF
Switching Accuracy
1 Minute and 30 Seconds
Supply Voltage (V AC)
230
Power Consumption (A)
0.5A
Cable Size (mm²)
1 - 6
Power Reserve
200 Hours (Approx.)
IEC Protection Class
Class II When Installed According to
Operating Temperature (°C)
-10 to +50
Dimensions
Dimensions (mm)
72 x 94.5 x 53
Specifications
| Dimensions (mm) | 72 x 94.5 x 53 |
|---|---|
| Number of Outputs | 1 |
| Panel Dimensions (mm) | 72 x 72 |
| Relay/Contact Type | SPDT |
| Display | Mechanical Dial |
| Relay Resistive Load Rating (A) | 16 |
| Timing Accuracy | 1 Second / 24 Hour |
| Relay Inductive Load Rating (A) | 3 |
| Time Base | Quartz Crystal |
| Total Switch Rating (Resistive) | 250V AC, 16A |
| Materials | Self-Extinguishing Thermoplastic |
| Squirrel-Cage Motor Maximum Load | 350 @ 250V |
| Voltage Free Inductive Load (cos = 0.6) | 3A 250V |
| Schedule | 24 Hour |
| Available Operations | 72 Operations |
| Switching Modes | ON and OFF |
| Switching Accuracy | 1 Minute and 30 Seconds |
| Supply Voltage (V AC) | 230 |
| Power Consumption (A) | 0.5A |
| Cable Size (mm²) | 1 - 6 |
| Power Reserve | 200 Hours (Approx.) |
| IEC Protection Class | Class II When Installed According to |
| Operating Temperature (°C) | -10 to +50 |
Dimensions
| Dimensions (mm) | 72 x 94.5 x 53 |
|---|
