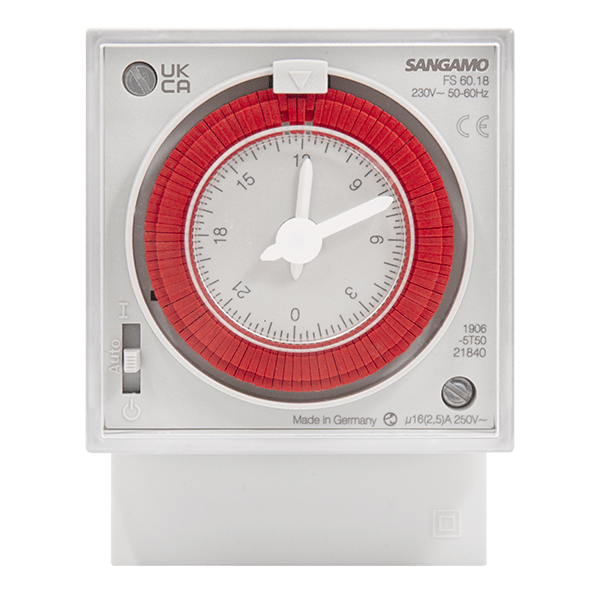

Sangamo PA16622 Analogue 24 Hr Timer
£
52
67
(Incl. VAT)
Analogue 24 Hr Timer
About this product
About this product
The Sangamo PA16622, from Sangamo's range of time switches, is a standard Analogue 24 hr Timer with a voltage free 16A changeover contact.
Key features
- Programming by 15 min captive segments
- Temporary manual override, reverting automatically to the program
- Contact status display
- 72 operations; minimum interval between 2 switchings 20 minutes
- Suitable for surface, panel or DIN rail mounting (35mm DIN-rail, DIN EN 60715)
- Quartz crystal time base, timing accuracy 1 second / 24 hour
- IP20 ingress protection
Frequently asked questions
What programming schedule does the PA16622 have?
24 hour.
How fine is the programming?
15 min captive segments, with 72 operations.
Can it be DIN rail mounted?
Yes: it is suitable for surface, panel or DIN rail mounting.
What load can it switch?
Its total switch rating (resistive) is 250V AC, 16A.
What display does it have?
A mechanical dial.
-
Download
- PA16622 Tech Sheet
£
52
67
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
72 x 94.5 x 53
Number of Outputs
1
Panel Dimensions (mm)
72 x 72
Relay/Contact Type
SPDT
Display
Mechanical Dial
Relay Resistive Load Rating (A)
16
Timing Accuracy
1 Second / 24 Hour
Relay Inductive Load Rating (A)
3
Time Base
Quartz Crystal
Total Switch Rating (Resistive)
250V AC, 16A
Materials
Self-Extinguishing Thermoplastic
Squirrel-Cage Motor Maximum Load
350 @ 250V
Voltage Free Inductive Load (cos = 0.6)
3A 250V
Schedule
24 Hour
Available Operations
72 Operations
Switching Modes
ON and OFF
Switching Accuracy
1 Minute and 30 Seconds
Supply Voltage (V AC)
230
Power Consumption (A)
0.5A
Cable Size (mm²)
1 - 6
IEC Protection Class
Class II When Installed According to Regulations
Operating Temperature (°C)
-10 to +50
Maximum Incandescent Lamp Load Rating (W)
1000 @ 250V
Mounting
Surface, Panel, or DIN
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Minimum Interval (Between 2 Switchings)
20 Minutes
Ingress Protection
IP20
Features
Voltage Free 16A Changeover Contact, Programming by 15 min Captive Segments, Contact Status Display
Dimensions
Dimensions (mm)
72 x 94.5 x 53
Specifications
| Dimensions (mm) | 72 x 94.5 x 53 |
|---|---|
| Number of Outputs | 1 |
| Panel Dimensions (mm) | 72 x 72 |
| Relay/Contact Type | SPDT |
| Display | Mechanical Dial |
| Relay Resistive Load Rating (A) | 16 |
| Timing Accuracy | 1 Second / 24 Hour |
| Relay Inductive Load Rating (A) | 3 |
| Time Base | Quartz Crystal |
| Total Switch Rating (Resistive) | 250V AC, 16A |
| Materials | Self-Extinguishing Thermoplastic |
| Squirrel-Cage Motor Maximum Load | 350 @ 250V |
| Voltage Free Inductive Load (cos = 0.6) | 3A 250V |
| Schedule | 24 Hour |
| Available Operations | 72 Operations |
| Switching Modes | ON and OFF |
| Switching Accuracy | 1 Minute and 30 Seconds |
| Supply Voltage (V AC) | 230 |
| Power Consumption (A) | 0.5A |
| Cable Size (mm²) | 1 - 6 |
| IEC Protection Class | Class II When Installed According to Regulations |
| Operating Temperature (°C) | -10 to +50 |
| Maximum Incandescent Lamp Load Rating (W) | 1000 @ 250V |
| Mounting | Surface, Panel, or DIN |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Minimum Interval (Between 2 Switchings) | 20 Minutes |
| Ingress Protection | IP20 |
| Features | Voltage Free 16A Changeover Contact, Programming by 15 min Captive Segments, Contact Status Display |
Dimensions
| Dimensions (mm) | 72 x 94.5 x 53 |
|---|
