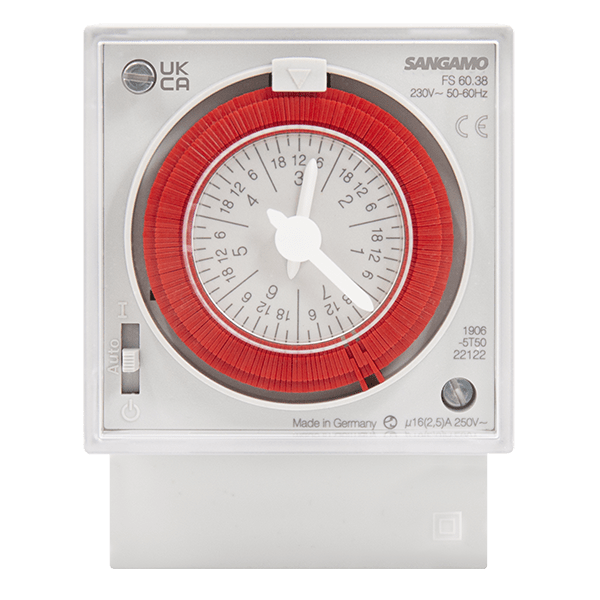

Sangamo PA16922 Analogue 7 Day Timer
£
53
62
(Incl. VAT)
Analogue 7 Day Timer
About this product
About this product
The Sangamo PA16922, from Sangamo's range of time switches, is a standard Analogue 7 Day Timer with a voltage free 16A changeover contact.
Key features
- Programming by 1 hour captive segments
- Temporary manual override, reverting automatically to the programme
- Contact status display
- 84 operations; minimum interval between 2 switchings 2 hours
- Suitable for surface, panel or DIN rail mounting (35mm DIN-rail, DIN EN 60715)
- Quartz crystal time base, timing accuracy 1 second / 24 hour
- IP20 ingress protection
Frequently asked questions
How fine is the programming?
1 hour captive segments, with 84 operations.
Can it be DIN rail mounted?
Yes: it is suitable for surface, panel or DIN rail mounting.
What is the timing accuracy?
1 second / 24 hour, from a quartz crystal time base.
What load can it switch?
Its total switch rating (resistive) is 250V AC, 16A.
What display does it have?
A mechanical dial.
-
Download
- PA16922 Tech Sheet
£
53
62
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
72 x 94.5 x 53
Number of Outputs
1
Panel Dimensions (mm)
72 x 72
Relay/Contact Type
SPDT
Display
Mechanical Dial
Relay Resistive Load Rating (A)
16
Timing Accuracy
1 Second / 24 Hour
Relay Inductive Load Rating (A)
3
Time Base
Quartz Crystal
Total Switch Rating (Resistive)
250V AC, 16A
Materials
Self-Extinguishing Thermoplastic
Squirrel-Cage Motor Maximum Load
350 @ 250V
Voltage Free Inductive Load (cos = 0.6)
3A 250V
Schedule
24 Hour, and 7 Day Programmable
Available Operations
84 Operations
Switching Modes
ON and OFF
Switching Accuracy
10 Minutes
Supply Voltage (V AC)
230
Power Consumption (A)
0.5A
Cable Size (mm²)
1 - 6
IEC Protection Class
Class II When Installed According to Regulations
Operating Temperature (°C)
-10 to +50
Storage Temperature (°C)
-20 to +60
Maximum Incandescent Lamp Load Rating (W)
1000 @ 250V
Mounting
Surface, Panel, or DIN
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Minimum Interval (Between 2 Switchings)
2 Hours
Ingress Protection
IP20
Features
Voltage Free 16A Changeover Contact, Programming by 1 hour Captive Segments, Contact Status Display
Dimensions
Dimensions (mm)
72 x 94.5 x 53
Specifications
| Dimensions (mm) | 72 x 94.5 x 53 |
|---|---|
| Number of Outputs | 1 |
| Panel Dimensions (mm) | 72 x 72 |
| Relay/Contact Type | SPDT |
| Display | Mechanical Dial |
| Relay Resistive Load Rating (A) | 16 |
| Timing Accuracy | 1 Second / 24 Hour |
| Relay Inductive Load Rating (A) | 3 |
| Time Base | Quartz Crystal |
| Total Switch Rating (Resistive) | 250V AC, 16A |
| Materials | Self-Extinguishing Thermoplastic |
| Squirrel-Cage Motor Maximum Load | 350 @ 250V |
| Voltage Free Inductive Load (cos = 0.6) | 3A 250V |
| Schedule | 24 Hour, and 7 Day Programmable |
| Available Operations | 84 Operations |
| Switching Modes | ON and OFF |
| Switching Accuracy | 10 Minutes |
| Supply Voltage (V AC) | 230 |
| Power Consumption (A) | 0.5A |
| Cable Size (mm²) | 1 - 6 |
| IEC Protection Class | Class II When Installed According to Regulations |
| Operating Temperature (°C) | -10 to +50 |
| Storage Temperature (°C) | -20 to +60 |
| Maximum Incandescent Lamp Load Rating (W) | 1000 @ 250V |
| Mounting | Surface, Panel, or DIN |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Minimum Interval (Between 2 Switchings) | 2 Hours |
| Ingress Protection | IP20 |
| Features | Voltage Free 16A Changeover Contact, Programming by 1 hour Captive Segments, Contact Status Display |
Dimensions
| Dimensions (mm) | 72 x 94.5 x 53 |
|---|
