Sangamo PSB2 Powersaver Boost
£
37
15
(Incl. VAT)
3 Years Warranty
Powersaver Boost
About this product
About this product

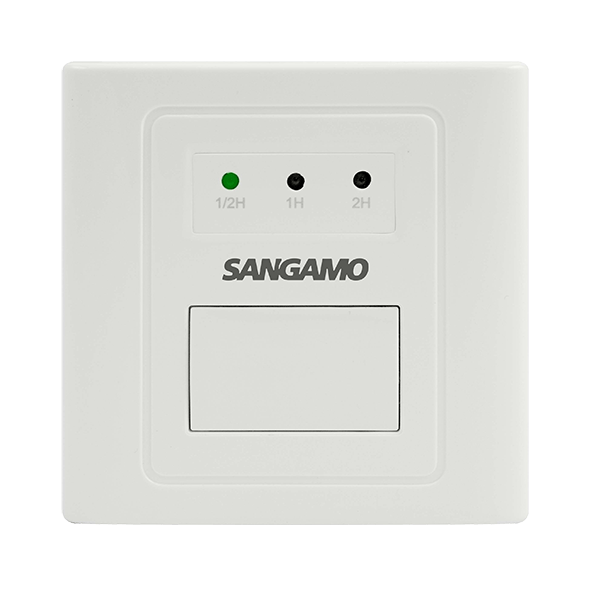

The Sangamo PSB2 is an electronic boost controller with single button operation, from Sangamo's range of heating controls. It switches the appliance off automatically after a boost period of 30 minutes, 1 hour or 2 hours.
Key features
- Single button operation
- Selectable boost durations: 30 minutes, 1 hour or 2 hours
- Switches appliance off automatically after boost period
- LEDs for boost status
- Output relay: 16 A resistive, 2 A capacitive
- Single gang surface (mount box included) or flush mounting
- Double insulated construction, Class II
Frequently asked questions
What boost durations can be selected?
30 minutes, 1 hour or 2 hours.
Does it switch off automatically?
Yes. It switches the appliance off automatically after the boost period.
How is it mounted?
On a single gang surface box (mount box included), or flush mounted.
What is the relay rating?
16 A resistive and 2 A capacitive.
What supply does it need?
220 - 240 V AC, 50/60 Hz.
-
Download
- PSB2 Tech Sheet
£
37
15
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 35
Number of Outputs
1
Flush Mounting Back Box Depth (mm)
7.9 (Plate)
Relay/Contact Type
SPST
Colour
White
Relay Resistive Load Rating (A)
16
Display
LEDs for boost status
Relay Capacitive Load Rating (A)
2
Materials
ABS
Mounting
Surface and Flush Mounting
Warranty (Years)
3
Selectable Boost Durations
30 Minutes, 1 Hour or 2 Hours
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50/60
Maximum Cable Size (mm²)
2.5 (Flex), 4.0 (Fixed)
IEC Protection Class
Class II
Operating Temperature (°C)
-10 to +40
Temperature Rating
T35
Additional Information
Double Insulated Construction
Ingress Protection
IP20
Features
Fits 1 Gang Surface or Flush Box
Dimensions
Dimensions (mm)
87 x 87 x 35
Specifications
| Dimensions (mm) | 87 x 87 x 35 |
|---|---|
| Number of Outputs | 1 |
| Flush Mounting Back Box Depth (mm) | 7.9 (Plate) |
| Relay/Contact Type | SPST |
| Colour | White |
| Relay Resistive Load Rating (A) | 16 |
| Display | LEDs for boost status |
| Relay Capacitive Load Rating (A) | 2 |
| Materials | ABS |
| Mounting | Surface and Flush Mounting |
| Warranty (Years) | 3 |
| Selectable Boost Durations | 30 Minutes, 1 Hour or 2 Hours |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50/60 |
| Maximum Cable Size (mm²) | 2.5 (Flex), 4.0 (Fixed) |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | -10 to +40 |
| Temperature Rating | T35 |
| Additional Information | Double Insulated Construction |
| Ingress Protection | IP20 |
| Features | Fits 1 Gang Surface or Flush Box |
Dimensions
| Dimensions (mm) | 87 x 87 x 35 |
|---|
Powersaver Boost features
Sangamo PSB2 Powersaver Boost
