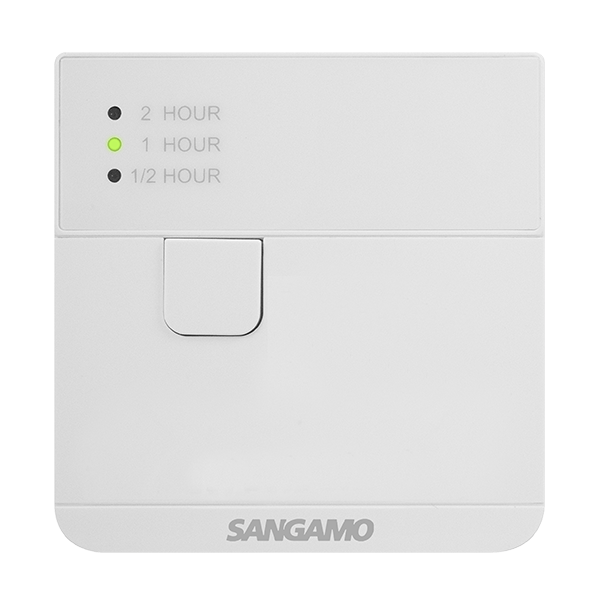

Sangamo PSPB Electronic Boost Controller with Single Button Operation

£ 27 40
(Incl. VAT)
3 Years Warranty
Electronic Boost Controller with Single Button Operation
About this product

The Sangamo PSPB is a 2 hour boost timer with button operation, from Sangamo's range of heating controls. It has selectable boost durations of 30 minutes, 1 hour or 2 hours and switches the appliance off automatically after the boost period.

Key features

  • Boost durations: 30 minutes, 1 hour or 2 hours
  • Switches appliance off automatically after boost period
  • 1 DPST switched-load output, 16A resistive at 240V AC
  • Maximum LED lamp load 200 W @ 230V
  • LEDs for boost status
  • Single gang surface (mount box included) or flush mounting
  • Gloss white ABS, 86 x 86 x 35 mm

Frequently asked questions

What boost durations can be set?

30 minutes, 1 hour or 2 hours.

What happens at the end of the boost period?

The appliance is switched off automatically.

What can the output switch?

It is a single DPST switched-load output rated 16A resistive at 240V AC, with a maximum LED lamp load of 200 W @ 230V.

How is it mounted?

On a single gang pattress: surface mounted with the included mount box, or flush mounted in a 25 mm deep back box.

£ 27 40
FAST delivery by Order within
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£27.40 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 35
Number of Outputs
1
Depth Without Back Box (mm)
9
Relay/Contact Type
DPST
Flush Mounting Back Box Depth (mm)
25
Relay Voltage - Maximum (AC)
240
Finish
Gloss White
Relay Resistive Load Rating (A)
16
Materials
ABS
Relay Capacitive Load Rating (A)
2
Mounting
Single Pattress – Surface and Flush
Maximum LED Lamp Load Rating (W)
200 @ 230V
Warranty (Years)
3
Selectable Boost Durations
30 Minutes, 1 Hour or 2 Hours
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Maximum Cable Size (mm²)
2.5 (Flex), 4.0 (Fixed)
IEC Protection Class
Class II
Operating Temperature (°C)
-10 to +40
Temperature Rating
T40
Ingress Protection
IP20
Output Type
DPST, Switched Load
Display
LEDs for boost status
Dimensions
Dimensions (mm)
86 x 86 x 35

Specifications

Dimensions (mm) 86 x 86 x 35
Number of Outputs 1
Depth Without Back Box (mm) 9
Relay/Contact Type DPST
Flush Mounting Back Box Depth (mm) 25
Relay Voltage - Maximum (AC) 240
Finish Gloss White
Relay Resistive Load Rating (A) 16
Materials ABS
Relay Capacitive Load Rating (A) 2
Mounting Single Pattress – Surface and Flush
Maximum LED Lamp Load Rating (W) 200 @ 230V
Warranty (Years) 3
Selectable Boost Durations 30 Minutes, 1 Hour or 2 Hours
Supply Voltage (V AC) 220 - 240
Frequency (Hz) 50
Maximum Cable Size (mm²) 2.5 (Flex), 4.0 (Fixed)
IEC Protection Class Class II
Operating Temperature (°C) -10 to +40
Temperature Rating T40
Ingress Protection IP20
Output Type DPST, Switched Load
Display LEDs for boost status

Dimensions

Dimensions (mm) 86 x 86 x 35

Electronic Boost Controller with Single Button Operation features

Sangamo PSPB Electronic Boost Controller with Single Button Operation

Sangamo PSPB Electronic Boost Controller with Single Button Operation

What it does

The PSPB is a boost timer operated by a button. Boost durations of 30 minutes, 1 hour or 2 hours can be selected, and the appliance is switched off automatically after the boost period. LEDs show the boost status.

It has one DPST switched-load output rated 16A resistive at 240V AC and 2 A capacitive, with a maximum LED lamp load of 200 W @ 230V.

Installation notes

It fits a single gang pattress, surface mounted with the included mount box or flush mounted in a 25 mm deep back box. The gloss white ABS unit measures 86 x 86 x 35 mm, and its depth without the back box is 9 mm.

Supply is 220 - 240 V AC, 50 Hz, and terminals take up to 2.5 mm² flex or 4.0 mm² fixed cable. It is Class II and rated IP20. Its operating temperature is -10 to +40 °C.
