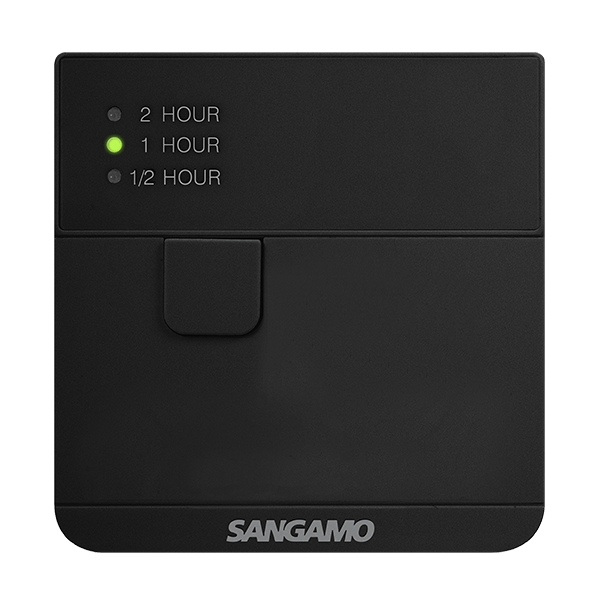

Sangamo PSPBB Electronic Boost Controller with Single Button Operation, Black
£
33
08
(Incl. VAT)
3 Years Warranty
Electronic Boost Controller with Single Button Operation in Black
About this product
About this product
The Sangamo PSPBB is an electronic boost controller with single button operation, in matt black. It is a 2 hour boost controller: boost durations of 30 minutes, 1 hour or 2 hours are selectable, and it switches the appliance off automatically after the boost period.
Key features
- Selectable boost durations: 30 minutes, 1 hour or 2 hours
- Switches appliance off automatically after boost period
- LEDs for boost status
- DPST output, switched load; 16A resistive 240V AC
- Single gang surface (mount box included) or flush mounting
- Matt black ABS; 86 x 86 x 35 mm
Frequently asked questions
What boost durations can be selected on the PSPBB?
30 minutes, 1 hour or 2 hours.
What happens after the boost period?
It switches the appliance off automatically.
What load can it switch?
16A resistive at 240V AC, or 2 A capacitive, through a DPST output.
How is it mounted?
On a single pattress, surface mounted (mount box included) or flush mounted.
How is the boost status shown?
By LEDs.
-
Download
- PSPBB Tech Sheet
£
33
08
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 35
Number of Outputs
1
Flush Mounting Back Box Depth (mm)
25
Relay/Contact Type
DPST
Finish
Matt Black
Relay Voltage - Maximum (AC)
240
Materials
ABS
Relay Resistive Load Rating (A)
16
Mounting
Single Pattress – Surface and Flush Mounting
Relay Capacitive Load Rating (A)
2
Warranty (Years)
3
Selectable Boost Durations
30 Minutes, 1 Hour or 2 Hours
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Maximum Cable Size (mm²)
2.5 (Flex), 4.0 (Fixed)
IEC Protection Class
Class II
Operating Temperature (°C)
-10 to +40
Temperature Rating
T40
Ingress Protection
IP20
Display
LEDs for boost status
Output Type
DPST, Switched Load
Output Relay Rating
16A Resistive 240V AC
Dimensions
Dimensions (mm)
86 x 86 x 35
Specifications
| Dimensions (mm) | 86 x 86 x 35 |
|---|---|
| Number of Outputs | 1 |
| Flush Mounting Back Box Depth (mm) | 25 |
| Relay/Contact Type | DPST |
| Finish | Matt Black |
| Relay Voltage - Maximum (AC) | 240 |
| Materials | ABS |
| Relay Resistive Load Rating (A) | 16 |
| Mounting | Single Pattress – Surface and Flush Mounting |
| Relay Capacitive Load Rating (A) | 2 |
| Warranty (Years) | 3 |
| Selectable Boost Durations | 30 Minutes, 1 Hour or 2 Hours |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Maximum Cable Size (mm²) | 2.5 (Flex), 4.0 (Fixed) |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | -10 to +40 |
| Temperature Rating | T40 |
| Ingress Protection | IP20 |
| Display | LEDs for boost status |
| Output Type | DPST, Switched Load |
| Output Relay Rating | 16A Resistive 240V AC |
Dimensions
| Dimensions (mm) | 86 x 86 x 35 |
|---|
