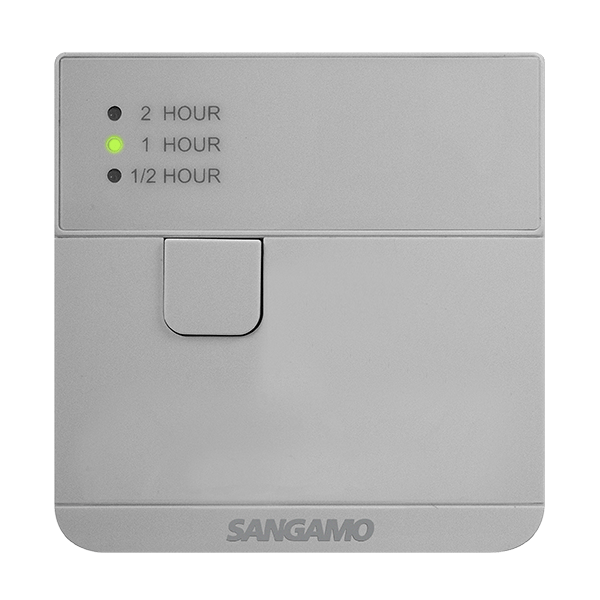

Sangamo PSPBS Electronic Boost Controller with Single Button Operation, Silver
£
34
46
(Incl. VAT)
3 Years Warranty
Electronic Boost Controller with Single Button Operation in Silver
About this product
About this product
The Sangamo PSPBS, from Sangamo's range of heating controls, is an electronic boost controller with single button operation in silver: a 2 hour boost timer with selectable boost durations of 30 minutes, 1 hour or 2 hours.
Key features
- Selectable boost durations: 30 minutes, 1 hour or 2 hours
- Switches appliance off automatically after boost period
- LEDs for boost status
- DPST switched load output; 16A resistive 240V AC
- Capacitive load rating 2 A
- Single gang surface (mount box included) or flush mounting; flush back box depth 25 mm
- IEC protection Class II; IP20
Frequently asked questions
What boost durations can be selected?
30 minutes, 1 hour or 2 hours.
What happens at the end of the boost?
It switches the appliance off automatically after the boost period.
What output does it have?
One DPST output, switched load, rated 16A resistive 240V AC.
Can it be flush mounted?
Yes: it fits a single pattress, surface or flush; the flush mounting back box depth is 25 mm, and a mount box is included for surface mounting.
How is the boost status shown?
By LEDs.
-
Download
- PSPBS Tech Sheet
£
34
46
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 35
Number of Outputs
1
Flush Mounting Back Box Depth (mm)
25
Relay/Contact Type
DPST
Colour
Silver
Relay Voltage - Maximum (AC)
240
Materials
ABS
Relay Resistive Load Rating (A)
16
Mounting
Single Pattress – Surface and Flush Mounting
Relay Capacitive Load Rating (A)
2
Warranty (Years)
3
Selectable Boost Durations
30 Minutes, 1 Hour or 2 Hours
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Maximum Cable Size (mm²)
2.5 (Flex), 4.0 (Fixed)
IEC Protection Class
Class II
Operating Temperature (°C)
-10 to +40
Temperature Rating
T40
Display
LEDs for boost status
Output Type
DPST, Switched Load
Ingress Protection
IP20
Dimensions
Dimensions (mm)
86 x 86 x 35
Specifications
| Dimensions (mm) | 86 x 86 x 35 |
|---|---|
| Number of Outputs | 1 |
| Flush Mounting Back Box Depth (mm) | 25 |
| Relay/Contact Type | DPST |
| Colour | Silver |
| Relay Voltage - Maximum (AC) | 240 |
| Materials | ABS |
| Relay Resistive Load Rating (A) | 16 |
| Mounting | Single Pattress – Surface and Flush Mounting |
| Relay Capacitive Load Rating (A) | 2 |
| Warranty (Years) | 3 |
| Selectable Boost Durations | 30 Minutes, 1 Hour or 2 Hours |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Maximum Cable Size (mm²) | 2.5 (Flex), 4.0 (Fixed) |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | -10 to +40 |
| Temperature Rating | T40 |
| Display | LEDs for boost status |
| Output Type | DPST, Switched Load |
| Ingress Protection | IP20 |
Dimensions
| Dimensions (mm) | 86 x 86 x 35 |
|---|
