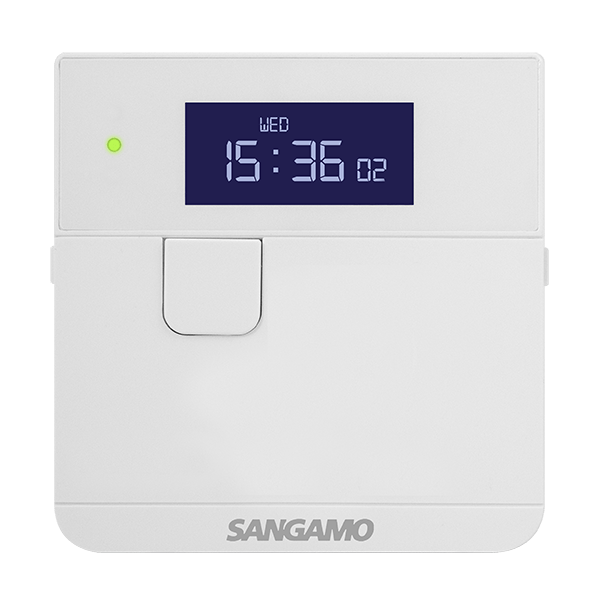

Sangamo PSPS Electronic 24/7 Boost Controller with Programmable Operations
£
43
86
(Incl. VAT)
3 Years Warranty
Electronic 24/7 Boost Controller with Programmable Operations
About this product
About this product
The Sangamo PSPS is an electronic 24/7 boost controller with programmable operations: a 7 day time switch with boost, programmable on a 24 hour, 5/2 day and 7 day schedule with up to 10 operations per day. Boost durations are selectable from 15 minutes to 6 hours.
Key features
- Programming schedule 24 hour, 5/2 day & 7 day; up to 10 operations per day
- Selectable boost durations: 15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours or 6 hours
- Button lock
- Automatic summer/winter time change
- Single gang surface (mount box included) or flush mounting
- DPST output, switched load; 16A resistive 240V AC
- Permanent memory reserve setting
Frequently asked questions
What boost durations can be selected?
15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours or 6 hours.
How many operations can it run?
Up to 10 per day, on a 24 hour, 5/2 day or 7 day schedule.
How is it mounted?
On a single gang pattress, surface mounted (mount box included) or flush mounted.
What load can it switch?
16A resistive at 240V AC, or 2 A capacitive, through a DPST output.
Does it change for summer and winter time?
Yes, automatically.
-
Download
- PSPS Tech Sheet
£
43
86
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 35
Number of Outputs
1
Depth Without Back Box (mm)
9
Relay/Contact Type
DPST
Flush Mounting Back Box Depth (mm)
25
Relay Voltage - Maximum (AC)
240
Finish
Gloss White
Relay Resistive Load Rating (A)
16
Display
LCD, Clear Indication Display
Relay Capacitive Load Rating (A)
2
Materials
ABS
Mounting
Surface and Flush Mounting
Warranty (Years)
3
Schedule
24 Hour, 5/2 Day & 7 Day
Available Operations
Up to 10 per Day
Summer/Winter Time Change
Yes (Automatic)
Memory Reserve
Permanent Reserve Setting
Selectable Boost Durations
15 Minutes, 30 Minutes, 1 Hour, 2 Hours, 4 Hours, or 6 Hours
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Maximum Cable Size (mm²)
2.5 (Flex), 4.0 (Fixed)
IEC Protection Class
Class II
Operating Temperature (°C)
0 to +40
Temperature Rating
T40
Button Lock
Yes
Ingress Protection
IP20
Output Type
DPST, Switched Load
Output Relay Rating
16A Resistive 240V AC
Dimensions
Dimensions (mm)
86 x 86 x 35
Specifications
| Dimensions (mm) | 86 x 86 x 35 |
|---|---|
| Number of Outputs | 1 |
| Depth Without Back Box (mm) | 9 |
| Relay/Contact Type | DPST |
| Flush Mounting Back Box Depth (mm) | 25 |
| Relay Voltage - Maximum (AC) | 240 |
| Finish | Gloss White |
| Relay Resistive Load Rating (A) | 16 |
| Display | LCD, Clear Indication Display |
| Relay Capacitive Load Rating (A) | 2 |
| Materials | ABS |
| Mounting | Surface and Flush Mounting |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day & 7 Day |
| Available Operations | Up to 10 per Day |
| Summer/Winter Time Change | Yes (Automatic) |
| Memory Reserve | Permanent Reserve Setting |
| Selectable Boost Durations | 15 Minutes, 30 Minutes, 1 Hour, 2 Hours, 4 Hours, or 6 Hours |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Maximum Cable Size (mm²) | 2.5 (Flex), 4.0 (Fixed) |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Temperature Rating | T40 |
| Button Lock | Yes |
| Ingress Protection | IP20 |
| Output Type | DPST, Switched Load |
| Output Relay Rating | 16A Resistive 240V AC |
Dimensions
| Dimensions (mm) | 86 x 86 x 35 |
|---|
