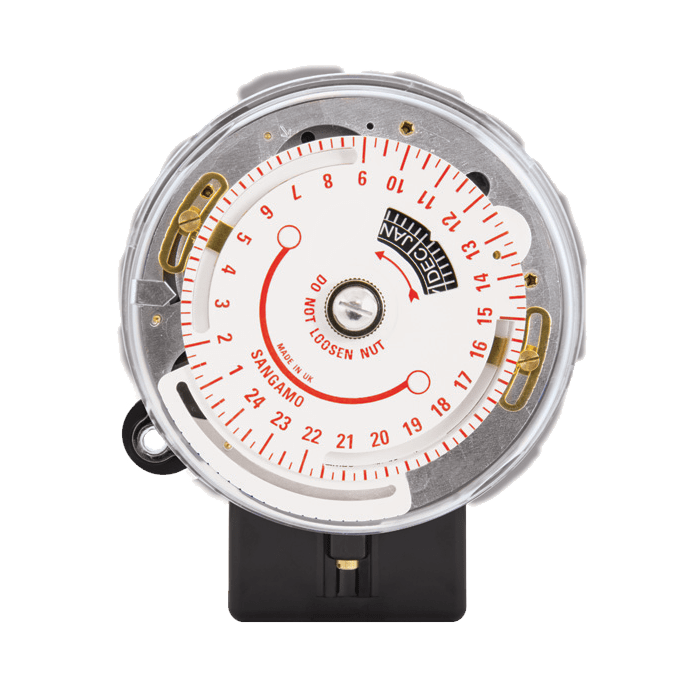

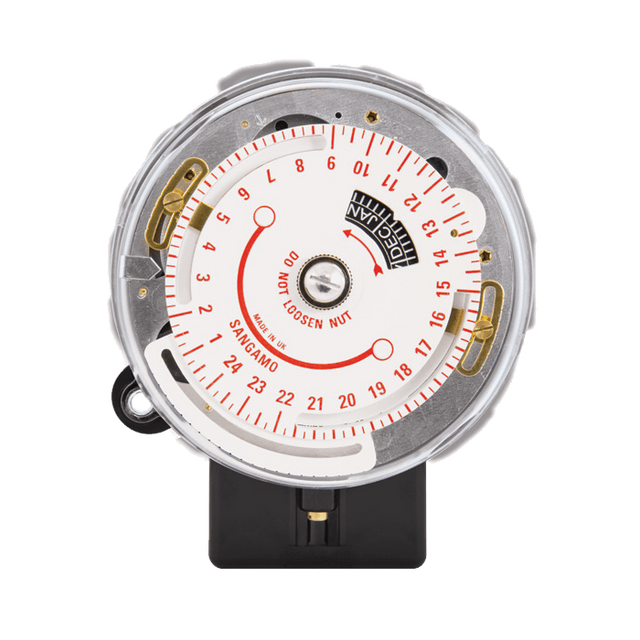

Sangamo Q551.13.13 Astro Zone 3, 3 Pin Time Switch, 1 On/Off & Optional Early Off
Free Delivery
£
217
57
(Incl. VAT)
Astro Zone 3, 3 Pin Time Switch, 1 On/Off & Optional Early Off
About this product
About this product
Sangamo's Q551.13.13 is a 3 pin astro time switch whose dial is calibrated for Zone 3; it has battery back up and 1 on/off period plus optional early off. The output is switched live: 3 pin, SPST.
Key features
- Temporary override by manual button
- Battery back up with a 20 day power reserve
- Maximum LED lamp load 3600 W @ 230V; 20 A resistive
- Dial calibrated for Zone 3
- 3 pin base; SPST output, switched live
- 1 ON/OFF period with optional early off on a 24 hour program
- Sunrise/sunset time offset of +/- 45 minutes
Frequently asked questions
Which zone is the Q551.13.13 dial calibrated for?
Zone 3.
Can the program be overridden by hand?
The temporary override (manual button) advances to OFF when the program is ON, and remains OFF until the next ON operation, and vice versa.
What LED load can it switch?
3600 W @ 230V.
Does it need an earth?
Yes: it is IEC protection Class I (must be earthed).
Is the output volt-free or switched live?
Switched live, from a single SPST output on a 3 pin base.
-
Download
- Q551.13.13 Tech Sheet
£
217
57
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Base Type
3 Pin
Available Operations
1 ON/OFF Period
Dial Calibration
Zone 3
Sunrise/Sunset Time Offset (Mins)
(+/-) 45
Supply Voltage (V AC)
230
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
20 Days
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Maximum Inductive Current Rating (A) (0.6pf)
5
Maximum Inductive Current Rating (A) (0.8pf)
12
Maximum Incandescent, Halogen Lamp Load Rating (W)
3600
Maximum Fluorescent Lamp Load Rating (W)
1980
Maximum LED Lamp Load Rating (W)
3600 @ 230V
Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W)
3600
Dimensions (mm)
146.5 x 105.7 x 82
Programming Schedule
24 Hour Program
Setting Accuracy
+/- 3 Minutes
Day Omission
No
Ingress Protection
IP20
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Output Type
3 Pin; SPST, Switched Live
Accessories
110469: FD930 Conduit Box Time Switch
Features
Optional Early Off
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Base Type | 3 Pin |
| Available Operations | 1 ON/OFF Period |
| Dial Calibration | Zone 3 |
| Sunrise/Sunset Time Offset (Mins) | (+/-) 45 |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | 20 Days |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Maximum Inductive Current Rating (A) (0.6pf) | 5 |
| Maximum Inductive Current Rating (A) (0.8pf) | 12 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 3600 |
| Maximum Fluorescent Lamp Load Rating (W) | 1980 |
| Maximum LED Lamp Load Rating (W) | 3600 @ 230V |
| Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W) | 3600 |
| Dimensions (mm) | 146.5 x 105.7 x 82 |
| Programming Schedule | 24 Hour Program |
| Setting Accuracy | +/- 3 Minutes |
| Day Omission | No |
| Ingress Protection | IP20 |
| Materials | Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate |
| Output Type | 3 Pin; SPST, Switched Live |
| Accessories | 110469: FD930 Conduit Box Time Switch |
| Features | Optional Early Off |
