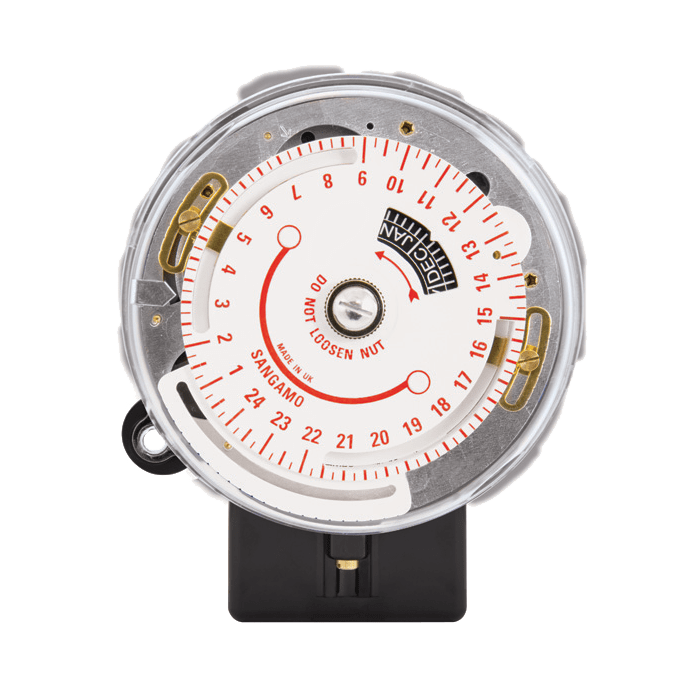

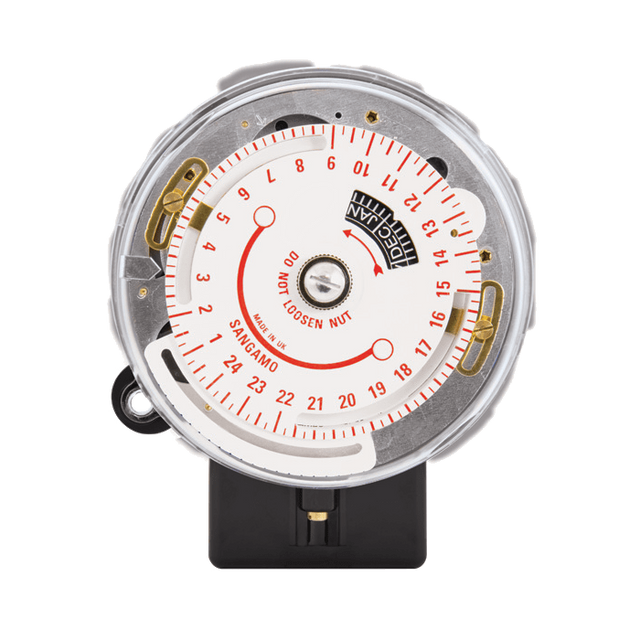

Sangamo Q551.14.14 Astro Zone 4, 3 Pin Time Switch, 2 On/Off
Free Delivery
£
215
42
(Incl. VAT)
Astro Zone 4, 3 Pin Time Switch, 2 On/Off
About this product
About this product
Calibrated for Zone 4, the Sangamo Q551.14.14 is a 3 pin astro time switch with battery back up and 2 on/off periods. The output is switched live: 3 pin, SPST.
Key features
- Zone 4 dial calibration
- Output: 3 pin, SPST, switched live
- 24 hour program with 2 ON/OFF periods
- Sunrise and sunset times can be offset by +/- 45 minutes
- Manual button for temporary override
- 20 day power reserve (battery back up)
- 20 A resistive rating; LED lamp loads to 3600 W @ 230V
Frequently asked questions
What dial calibration does the Q551.14.14 have?
Zone 4.
How many switching operations does it give?
2 ON/OFF periods on a 24 hour program.
What kind of output does it have?
Switched live: the output type is 3 pin; SPST, switched live.
How long is the power reserve?
20 days (battery back up).
How does the manual override work?
The temporary override (manual button) advances to OFF when the program is ON, and remains OFF until the next ON operation, and vice versa.
-
Download
- Q551.14.14 Tech Sheet
£
215
42
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Base Type
3 Pin
Available Operations
2 ON/OFF Periods
Dial Calibration
Zone 4
Sunrise/Sunset Time Offset (Mins)
(+/-) 45
Supply Voltage (V AC)
230
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
20 Days
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Maximum Inductive Current Rating (A) (0.6pf)
5
Maximum Inductive Current Rating (A) (0.8pf)
12
Maximum Incandescent, Halogen Lamp Load Rating (W)
3600
Maximum Fluorescent Lamp Load Rating (W)
1980
Maximum LED Lamp Load Rating (W)
3600 @ 230V
Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W)
3600
Dimensions (mm)
146.5 x 105.7 x 82
Programming Schedule
24 Hour Program
Setting Accuracy
+/- 3 Minutes
Day Omission
No
Temporary Override Facility (Manual Button)
Advance to “OFF”, When Program “ON” and will Remain “OFF” Unit Next “ON” Operation and Vice Versa
Ingress Protection
IP20
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Output Type
3 Pin; SPST, Switched Live
Accessories
110469: FD930 Conduit Box Time Switch
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Base Type | 3 Pin |
| Available Operations | 2 ON/OFF Periods |
| Dial Calibration | Zone 4 |
| Sunrise/Sunset Time Offset (Mins) | (+/-) 45 |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | 20 Days |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Maximum Inductive Current Rating (A) (0.6pf) | 5 |
| Maximum Inductive Current Rating (A) (0.8pf) | 12 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 3600 |
| Maximum Fluorescent Lamp Load Rating (W) | 1980 |
| Maximum LED Lamp Load Rating (W) | 3600 @ 230V |
| Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W) | 3600 |
| Dimensions (mm) | 146.5 x 105.7 x 82 |
| Programming Schedule | 24 Hour Program |
| Setting Accuracy | +/- 3 Minutes |
| Day Omission | No |
| Temporary Override Facility (Manual Button) | Advance to “OFF”, When Program “ON” and will Remain “OFF” Unit Next “ON” Operation and Vice Versa |
| Ingress Protection | IP20 |
| Materials | Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate |
| Output Type | 3 Pin; SPST, Switched Live |
| Accessories | 110469: FD930 Conduit Box Time Switch |
