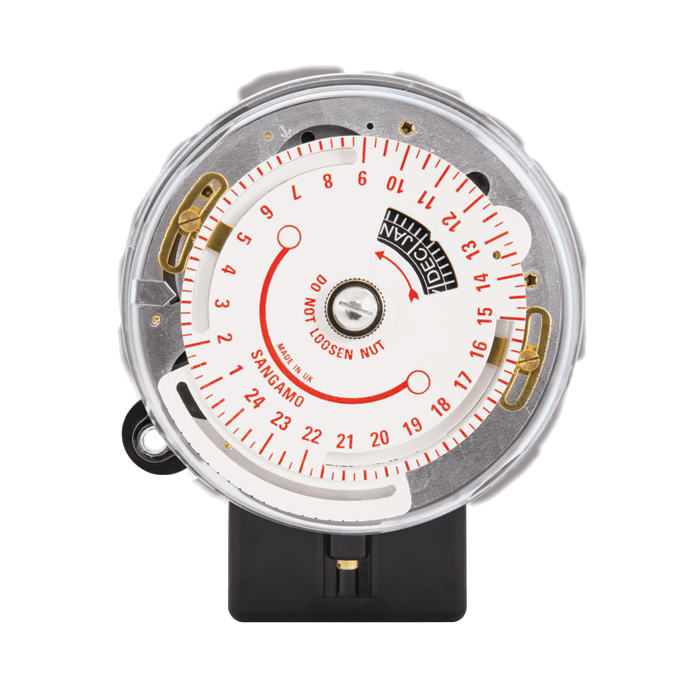

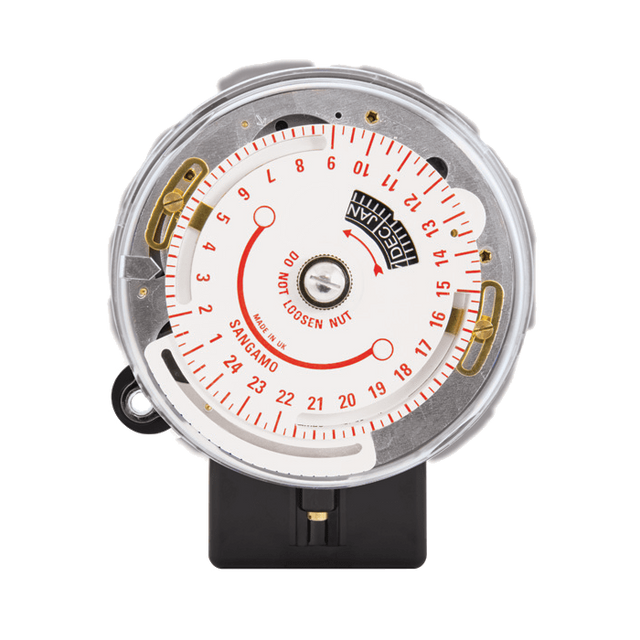

Sangamo Q553.13.11 Astro Zone 1, 4 Pin Time Switch, 1 On/Off & Optional Early Off
Free Delivery
£
224
72
(Incl. VAT)
Astro Zone 1, 4 Pin Time Switch, 1 On/Off & Optional Early Off
About this product
About this product
Sangamo's Q553.13.11 is a 4 pin astro time switch whose dial is calibrated for Zone 1; it has battery back up and 1 on/off period plus optional early off. Its single SPST output is volt-free.
Key features
- 24 hour program with 1 ON/OFF period and optional early off
- Sunrise and sunset times can be offset by +/- 45 minutes
- Manual button for temporary override
- 20 day power reserve (battery back up)
- 20 A resistive rating; LED lamp loads to 3600 W @ 230V
- Zone 1 dial calibration
- Output: 4 pin, SPST, volt-free
Frequently asked questions
What dial calibration does the Q553.13.11 have?
Zone 1.
How long is the power reserve?
20 days (battery back up).
How does the manual override work?
The temporary override (manual button) advances to OFF when the program is ON, and remains OFF until the next ON operation, and vice versa.
What is the maximum LED lamp load?
3600 W @ 230V.
What kind of output does it have?
Volt-free: the output type is 4 pin; SPST, volt-free.
-
Download
- Q553.13.11 Tech Sheet
£
224
72
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Base Type
4 Pin
Available Operations
1 ON/OFF Period
Dial Calibration
Zone 1
Sunrise/Sunset Time Offset (Mins)
(+/-) 45
Supply Voltage (V AC)
230
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
20 Days
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Maximum Inductive Current Rating (A) (0.6pf)
5
Maximum Inductive Current Rating (A) (0.8pf)
12
Maximum Incandescent, Halogen Lamp Load Rating (W)
3600
Maximum Fluorescent Lamp Load Rating (W)
1980
Maximum LED Lamp Load Rating (W)
3600 @ 230V
Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W)
3600
Dimensions (mm)
146.5 x 105.7 x 82
Programming Schedule
24 Hour Program
Setting Accuracy
+/- 3 Minutes
Day Omission
No
Temporary Override Facility (Manual Button)
Advance to “OFF”, When Program “ON” and will Remain “OFF” Unit Next “ON” Operation and Vice Versa
Ingress Protection
IP20
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Output Type
4 Pin; SPST, Volt-Free
Accessories
110469: FD930 Conduit Box Time Switch
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Base Type | 4 Pin |
| Available Operations | 1 ON/OFF Period |
| Dial Calibration | Zone 1 |
| Sunrise/Sunset Time Offset (Mins) | (+/-) 45 |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | 20 Days |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Maximum Inductive Current Rating (A) (0.6pf) | 5 |
| Maximum Inductive Current Rating (A) (0.8pf) | 12 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 3600 |
| Maximum Fluorescent Lamp Load Rating (W) | 1980 |
| Maximum LED Lamp Load Rating (W) | 3600 @ 230V |
| Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W) | 3600 |
| Dimensions (mm) | 146.5 x 105.7 x 82 |
| Programming Schedule | 24 Hour Program |
| Setting Accuracy | +/- 3 Minutes |
| Day Omission | No |
| Temporary Override Facility (Manual Button) | Advance to “OFF”, When Program “ON” and will Remain “OFF” Unit Next “ON” Operation and Vice Versa |
| Ingress Protection | IP20 |
| Materials | Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate |
| Output Type | 4 Pin; SPST, Volt-Free |
| Accessories | 110469: FD930 Conduit Box Time Switch |
