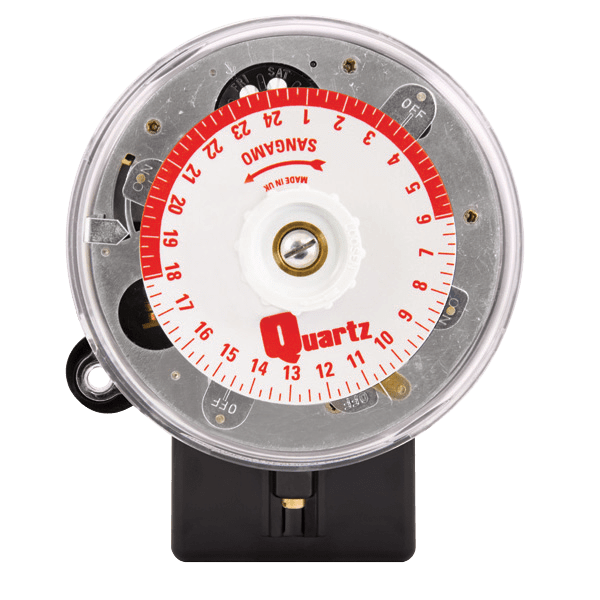

Sangamo Q554.2 3 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve
Free Delivery
£
175
76
(Incl. VAT)
3 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve
About this product
About this product
The Sangamo Q554.2 is a 3 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve.
Key Features
- Day omit skips on operation
- Temporary override (manual button)
- Genuine ESP time switch supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
-
Download
- Q554.2 Tech Sheet
£
175
76
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Base Type
3 Pin
Maximum Inductive Current Rating (A)
5
Available Operations
2 ON/OFF Periods
Maximum Incandescent, Halogen Lamp
3600
Dial Calibration
15 Minute Divisions
Maximum Fluorescent Lamp Load Rating
1980
Day Omission
Yes (omits the "ON" operation)
Supply Voltage (V AC)
230
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
100 Hours (Requires 300 hours to
Battery Type
Rechargable Ni-MH
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Base Type | 3 Pin |
| Maximum Inductive Current Rating (A) | 5 |
| Available Operations | 2 ON/OFF Periods |
| Maximum Incandescent, Halogen Lamp | 3600 |
| Dial Calibration | 15 Minute Divisions |
| Maximum Fluorescent Lamp Load Rating | 1980 |
| Day Omission | Yes (omits the "ON" operation) |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | 100 Hours (Requires 300 hours to |
| Battery Type | Rechargable Ni-MH |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
3 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve features
Sangamo Q554.2 3 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve
