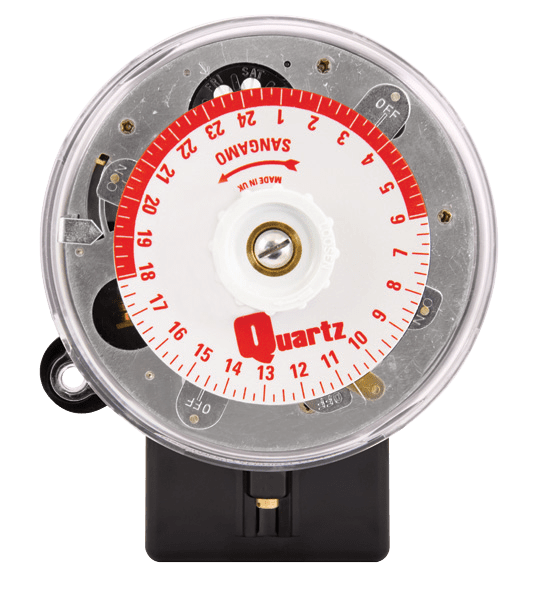

Sangamo Q555.2110V 110v 4 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve
Free Delivery
£
184
02
(Incl. VAT)
110v 4 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve
About this product
About this product
For 110 V AC supplies, the Sangamo Q555.2110V is a standard 4 pin time switch from Sangamo's range of time switches, giving 2 ON/OFF periods on a 24 hour dial. It has a 100 hour power reserve and a single SPST volt-free output rated 20A resistive.
Key features
- 110 V AC supply, standard 4 pin base, surface mounting
- 24 hour dial with 2 ON/OFF periods, calibrated in 15 minute divisions
- 1 SPST volt-free output, 20A resistive; relay voltage 110 V AC maximum
- 100 hour power reserve from a rechargeable Ni-MH battery (requires 300 hours to charge)
- Temporary override by manual button
- Day omission: skips the ON operation
- Quartz time base; timing accuracy 5 minutes / year
Frequently asked questions
What supply does the Q555.2110V need?
110 V AC.
How many switching periods does it have?
2 ON/OFF periods on a 24 hour programme, set on a dial calibrated in 15 minute divisions.
What is its power reserve?
100 hours, from a rechargeable Ni-MH battery that requires 300 hours to charge.
Can it skip a day?
Yes. Day omission omits the ON operation.
Does it need an earth?
Yes. It is Class I and must be earthed.
-
Download
- Q555.2110V Tech Sheet
£
184
02
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
110
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Base Type
4 Pin
Maximum Inductive Current Rating (A)
5
Available Operations
2 ON/OFF Periods
Maximum Incandescent, Halogen Lamp
3600
Dial Calibration
15 Minute Divisions
Maximum Fluorescent Lamp Load Rating
1980
Day Omission
Yes (omits the "ON" operation)
Supply Voltage (V AC)
110
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
100 Hours (Requires 300 hours to charge)
Battery Type
Rechargable Ni-MH
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Dimensions (mm)
146.5 x 105.7 x 82
Programming Schedule
24 Hour Program
Setting Accuracy
+/- 3 Minutes
Ingress Protection
IP20
Output Type
4 Pin; SPST, Volt-Free
Total Switch Rating
20A
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Accessories
110469: FD930 Conduit Box Time Switch
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 110 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Base Type | 4 Pin |
| Maximum Inductive Current Rating (A) | 5 |
| Available Operations | 2 ON/OFF Periods |
| Maximum Incandescent, Halogen Lamp | 3600 |
| Dial Calibration | 15 Minute Divisions |
| Maximum Fluorescent Lamp Load Rating | 1980 |
| Day Omission | Yes (omits the "ON" operation) |
| Supply Voltage (V AC) | 110 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | 100 Hours (Requires 300 hours to charge) |
| Battery Type | Rechargable Ni-MH |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Dimensions (mm) | 146.5 x 105.7 x 82 |
| Programming Schedule | 24 Hour Program |
| Setting Accuracy | +/- 3 Minutes |
| Ingress Protection | IP20 |
| Output Type | 4 Pin; SPST, Volt-Free |
| Total Switch Rating | 20A |
| Materials | Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate |
| Accessories | 110469: FD930 Conduit Box Time Switch |
110v 4 Pin Time Switch, 2 On/Offs, red dial 100-hour battery reserve features
