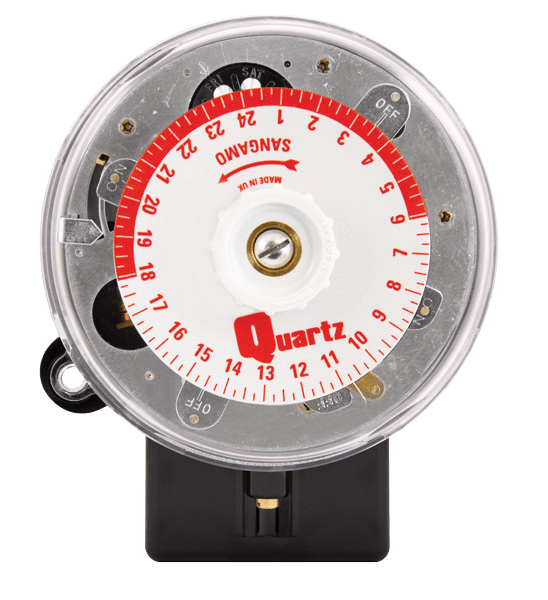

Sangamo Q555.3 4 Pin Time Switch, 3 On/Offs, red dial 100-hour battery reserve
About this product
The Sangamo Q555.3 is a 4 Pin Time Switch, 3 On/Offs, red dial 100-hour battery reserve.
Key Features
- Day omit skips on operation
- Temporary override (manual button)
- Genuine ESP time switch supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
In Detail
Precise time and temperature control cuts energy waste and keeps spaces comfortable, and this time switch gives installers a dependable, easy-to-set solution for domestic and light-commercial heating.
Straightforward wiring and intuitive programming keep installation and handover quick, while robust construction supports years of reliable service.
The Sangamo Q555.3 is a practical choice wherever a reliable time switch is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Sangamo |
| Product code | Q555.3 |
| Number of Outputs | 1 |
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Base Type | 4 Pin |
| Maximum Inductive Current Rating (A) | 5 |
| Available Operations | 3 ON/OFF Periods |
| Maximum Incandescent, Halogen Lamp | 3600 |
| Dial Calibration | 15 Minute Divisions |
| Maximum Fluorescent Lamp Load Rating | 1980 |
| Day Omission | Yes (omits the "ON" operation) |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | 100 Hours (Requires 300 hours to |
| Battery Type | Rechargable Ni-MH |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Dimensions | 104 × 83 × 134 mm |
| Weight | 0.458 kg |
| GTIN | 5026961000427 |
| Commodity Code | 9107000090 |
