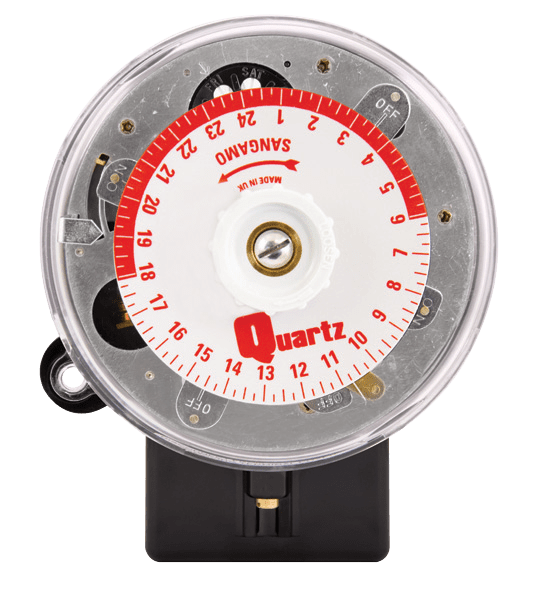

Sangamo Q563.2 4 Pin Time Switch, 2 On/Off Changeover Operations, red dial 100-hour battery reserve
Free Delivery
£
230
16
(Incl. VAT)
5 Years Warranty
4 Pin Time Switch, 2 On/Off Changeover Operations, red dial 100-hour battery reserve
About this product
About this product
The Sangamo Q563.2 is a 4 Pin Time Switch, 2 On/Off Changeover Operations, red dial 100-hour battery reserve.
Key Features
- Temporary override (manual button)
- Day omit skips on operation
- Genuine ESP time switch supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
-
Download
- Q563.2 Tech Sheet
£
230
16
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPDT
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Circuit A - Total Switch Rating (A)
20 @230V AC
Base Type
4 Pin
Warranty (Years)
5
Circuit B - Total Switch Rating (A)
20 @230V AC
Available Operations
2 ON/OFF Periods
Maximum Inductive Current Rating (A)
5
Setting Accuracy
+/- 3 Minutes
Circuit A - Maximum Current Rating (A)
5 @ 0.6pf
Circuit A - Maximum LED Load Rating (W)
3600
Circuit B - Maximum LED Load Rating (W)
1800
Power Consumption (W)
0.6
Circuit B - Maximum Halogen Filament
1800
Cable Size (mm²)
0.5 - 4
IEC Protection Class
Class I (Must be Earthed)
Circuit A - Maximum Fluorescent inc. CFL
1980
Operating Temperature (°C)
0 to +50
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPDT |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Circuit A - Total Switch Rating (A) | 20 @230V AC |
| Base Type | 4 Pin |
| Warranty (Years) | 5 |
| Circuit B - Total Switch Rating (A) | 20 @230V AC |
| Available Operations | 2 ON/OFF Periods |
| Maximum Inductive Current Rating (A) | 5 |
| Setting Accuracy | +/- 3 Minutes |
| Circuit A - Maximum Current Rating (A) | 5 @ 0.6pf |
| Circuit A - Maximum LED Load Rating (W) | 3600 |
| Circuit B - Maximum LED Load Rating (W) | 1800 |
| Power Consumption (W) | 0.6 |
| Circuit B - Maximum Halogen Filament | 1800 |
| Cable Size (mm²) | 0.5 - 4 |
| IEC Protection Class | Class I (Must be Earthed) |
| Circuit A - Maximum Fluorescent inc. CFL | 1980 |
| Operating Temperature (°C) | 0 to +50 |
4 Pin Time Switch, 2 On/Off Changeover Operations, red dial 100-hour battery reserve features
