Sangamo Q563.3 4 Pin Time Switch, 3 On/Off Changeover Operations, red dial 100-hour battery reserve
Free Delivery
£
230
16
(Incl. VAT)
5 Years Warranty
4 Pin Time Switch, 3 On/Off Changeover Operations, red dial 100-hour battery reserve
About this product
About this product

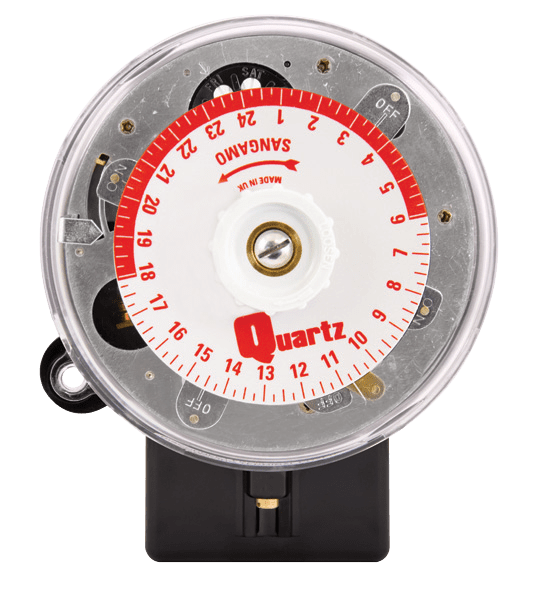

Sangamo's Q563.3 is a standard 4 pin time switch with battery back up, giving 3 ON/OFF periods on a 24 hour dial; its circuits A and B each have a total switch rating of 20 A @ 230V AC.
Key features
- Circuit A and circuit B: total switch rating 20 A @ 230V AC each
- LED loads: circuit A 3600 W, circuit B 1800 W
- 24 hour dial with 15 minute divisions; setting accuracy +/- 3 minutes
- Day omission (omits the “ON” operation)
- Temporary override by manual button
- 100 hour power reserve (requires 300 hours to charge); rechargeable Ni-MH battery
- 3 ON/OFF periods on a 24 hour program
Frequently asked questions
What can circuit B switch compared with circuit A?
Circuit B's maximum loads are lower: LED 1800 W against 3600 W, and fluorescent inc. CFL 990 W against 1980 W. Both circuits have a total switch rating of 20 A @ 230V AC.
How long is the power reserve?
100 hours, from a rechargeable Ni-MH battery; it requires 300 hours to charge.
Does it need an earth?
Yes: it is IEC protection Class I (must be earthed).
What does day omission do?
It omits the ON operation.
How many on/off periods does the Q563.3 give?
3 ON/OFF periods on a 24 hour program.
-
Download
- Q563.3 Tech Sheet
£
230
16
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPDT
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Circuit A - Total Switch Rating (A)
20 @230V AC
Base Type
4 Pin
Warranty (Years)
5
Circuit B - Total Switch Rating (A)
20 @230V AC
Available Operations
3 ON/OFF Periods
Setting Accuracy
+/- 3 Minutes
Circuit A - Maximum Current Rating (A)
5 @ 0.6pf
Circuit B - Maximum LED Load Rating (W)
1800
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Maximum Inductive Current Rating (A) (0.6pf)
5
Circuit A - Maximum LED Load Rating (W)
3600
Circuit A - Maximum Halogen Filament Lamp Load Rating (W)
3600
Circuit B - Maximum Halogen Filament Lamp Load Rating (W)
1800
Circuit A - Maximum Discharge (Sodium, Mercury, Metal Halide) Load Rating (W)
3600
Circuit B - Maximum Discharge (Sodium, Mercury, Metal Halide) Load Rating (W)
1800
Circuit A - Maximum Fluorescent inc. CFL Load Rating (W)
1980
Circuit B - Maximum Fluorescent inc. CFL Load Rating (W)
990
Dimensions (mm)
146.5 x 105.7 x 82
Dial Calibration
15 Minute Divisions
Day Omission
Yes (omits the “ON” operation)
Supply Voltage (V AC)
230
Power Reserve
100 Hours (Requires 300 hours to charge)
Battery Type
Rechargable Ni-MH
Ingress Protection
IP20
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Accessories
110469: FD930 Conduit Box Time Switch
