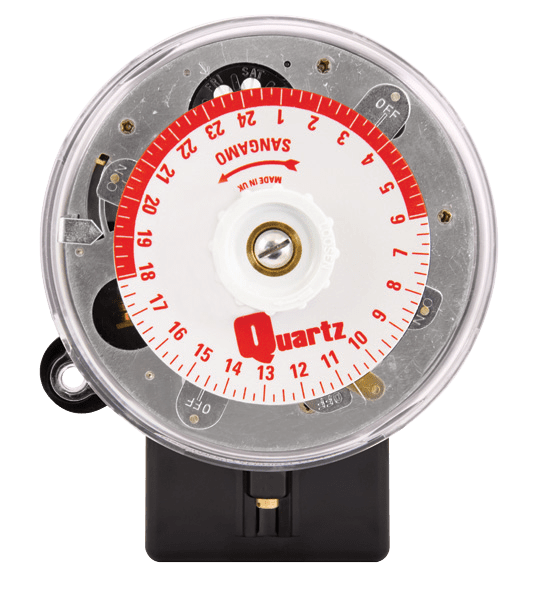

Sangamo Q586.2 4 Pin Time Switch, 2 On/Off Changeover Operations, Early on 1 Day/week, red dial 100-hour battery reserve
Free Delivery
£
219
44
(Incl. VAT)
4 Pin Time Switch, 2 On/Off Changeover Operations, Early on 1 Day/week, red dial 100-hour battery reserve
About this product
About this product
The Sangamo Q586.2 is a standard 4 pin time switch with battery back up: it gives 2 ON/OFF periods on a 24 hour program, adds an optional early on on 1 day/week, and has a power reserve of 100 hours (requires 300 hours to charge) from a rechargeable Ni-MH battery.
Key features
- Optional early on, 1 day/week
- 24 hour dial with 15 minute divisions; setting accuracy +/- 3 minutes
- Day omission (omits the ON operation)
- Temporary override by manual button
- 100 hour power reserve (requires 300 hours to charge); rechargeable Ni-MH battery
- 20 A resistive rating; LED lamp loads to 3600 W @ 230V
- 2 ON/OFF periods on a 24 hour program
Frequently asked questions
What does the early on function do?
It is an optional early on on 1 day/week.
How long is the power reserve?
100 hours, from a rechargeable Ni-MH battery; it requires 300 hours to charge.
What does day omission do?
It omits the ON operation.
Does it need an earth?
Yes: it is IEC protection Class I (must be earthed).
How many on/off periods does the Q586.2 give?
2 ON/OFF periods on a 24 hour program.
-
Download
- Q586.2 Tech Sheet
£
219
44
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Time Base
Quartz Crystal
Relay Resistive Load Rating (A)
20
Mounting
Surface Mounting
Base Type
4 Pin
Available Operations
2 ON/OFF Periods
Dial Calibration
15 Minute Divisions
Day Omission
Yes (omits the "ON" operation)
Supply Voltage (V AC)
230
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
100 Hours (Requires 300 hours to charge)
Battery Type
Rechargable Ni-MH
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Maximum Inductive Current Rating (A) (0.6pf)
5
Maximum Inductive Current Rating (A) (0.8pf)
12
Maximum Incandescent, Halogen Lamp Load Rating (W)
3600
Maximum Fluorescent Lamp Load Rating (W)
1980
Maximum LED Lamp Load Rating (W)
3600 @ 230V
Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W)
3600
Dimensions (mm)
146.5 x 105.7 x 82
Setting Accuracy
+/- 3 Minutes
Ingress Protection
IP20
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Features
Early On, 1 Day/Week
Accessories
110469: FD930 Conduit Box Time Switch
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Time Base | Quartz Crystal |
| Relay Resistive Load Rating (A) | 20 |
| Mounting | Surface Mounting |
| Base Type | 4 Pin |
| Available Operations | 2 ON/OFF Periods |
| Dial Calibration | 15 Minute Divisions |
| Day Omission | Yes (omits the "ON" operation) |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | 100 Hours (Requires 300 hours to charge) |
| Battery Type | Rechargable Ni-MH |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Maximum Inductive Current Rating (A) (0.6pf) | 5 |
| Maximum Inductive Current Rating (A) (0.8pf) | 12 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 3600 |
| Maximum Fluorescent Lamp Load Rating (W) | 1980 |
| Maximum LED Lamp Load Rating (W) | 3600 @ 230V |
| Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W) | 3600 |
| Dimensions (mm) | 146.5 x 105.7 x 82 |
| Setting Accuracy | +/- 3 Minutes |
| Ingress Protection | IP20 |
| Materials | Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate |
| Features | Early On, 1 Day/Week |
| Accessories | 110469: FD930 Conduit Box Time Switch |
