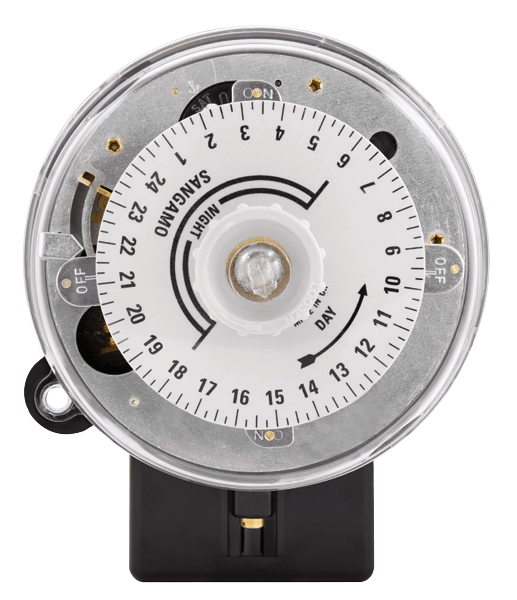

Sangamo S255.2 4 Pin Time Switch, 2 On/Offs, black dial, no battery reserve
Free Delivery
£
174
79
(Incl. VAT)
5 Years Warranty
4 Pin Time Switch, 2 On/Offs, black dial, no battery reserve
About this product
About this product
The Sangamo S255.2 is a standard 4 pin time switch with a 24 hour dial and 2 ON/OFF periods, for a 230 V AC supply. It switches a single SPST volt-free output with a 20A total switch rating, and it has no power reserve.
Key features
- 24 hour dial in 15 minute divisions, with 2 ON/OFF periods
- Temporary override (manual button)
- Day omission: omits the ON operation
- 1 SPST volt-free output, 20A total switch rating, 20 A resistive load rating
- LED lamp loads up to 3600 W @ 230V; incandescent and halogen up to 3600 W
- Timing accuracy 5 minutes / year; setting accuracy +/- 3 minutes
- 4 pin base, surface mounting, 146.5 x 105.7 x 82 mm
- No power reserve; Class I, must be earthed
Frequently asked questions
How many switching periods does the S255.2 have?
2 ON/OFF periods on a 24 hour program.
Can I skip a day?
Yes. The day omission facility omits the ON operation.
Does it have a power reserve?
No. The power reserve is none.
What can it switch?
A single SPST volt-free output: 20 A resistive, 3600 W of LED lamps @ 230V or 1980 W of fluorescent lamps.
Does it need an earth?
Yes. It is Class I and must be earthed.
What base does it use?
A 4 pin base, surface mounted.
-
Download
- S255.2 Tech Sheet
£
174
79
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Mounting
Surface Mounting
Relay Resistive Load Rating (A)
20
Base Type
4 Pin
Warranty (Years)
5
Schedule
24 Hour Program
Dial Calibration
15 Minute Divisions
Setting Accuracy
+/- 3 Minutes
Maximum Fluorescent Lamp Load Rating
1980
Supply Voltage (V AC)
230
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
None
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Dimensions (mm)
146.5 x 105.7 x 82
Available Operations
2 ON/OFF Periods
Maximum LED Lamp Load Rating (W)
3600 @ 230V
Maximum Inductive Current Rating (A) (0.6pf)
5
Maximum Inductive Current Rating (A) (0.8pf)
12
Maximum Incandescent, Halogen Lamp Load Rating (W)
3600
Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W)
3600
Minimum Period Between Like Operations (Hours)
1.75
Minimum Period Between Unlike Operations (Mins)
15
Day Omission
Yes (omits the ON operation)
Temporary Override Facility
Manual button
Ingress Protection
IP20
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Output Type
4 Pin; SPST, Volt-Free
Total Switch Rating
20A
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Mounting | Surface Mounting |
| Relay Resistive Load Rating (A) | 20 |
| Base Type | 4 Pin |
| Warranty (Years) | 5 |
| Schedule | 24 Hour Program |
| Dial Calibration | 15 Minute Divisions |
| Setting Accuracy | +/- 3 Minutes |
| Maximum Fluorescent Lamp Load Rating | 1980 |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | None |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Dimensions (mm) | 146.5 x 105.7 x 82 |
| Available Operations | 2 ON/OFF Periods |
| Maximum LED Lamp Load Rating (W) | 3600 @ 230V |
| Maximum Inductive Current Rating (A) (0.6pf) | 5 |
| Maximum Inductive Current Rating (A) (0.8pf) | 12 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 3600 |
| Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W) | 3600 |
| Minimum Period Between Like Operations (Hours) | 1.75 |
| Minimum Period Between Unlike Operations (Mins) | 15 |
| Day Omission | Yes (omits the ON operation) |
| Temporary Override Facility | Manual button |
| Ingress Protection | IP20 |
| Materials | Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate |
| Output Type | 4 Pin; SPST, Volt-Free |
| Total Switch Rating | 20A |
